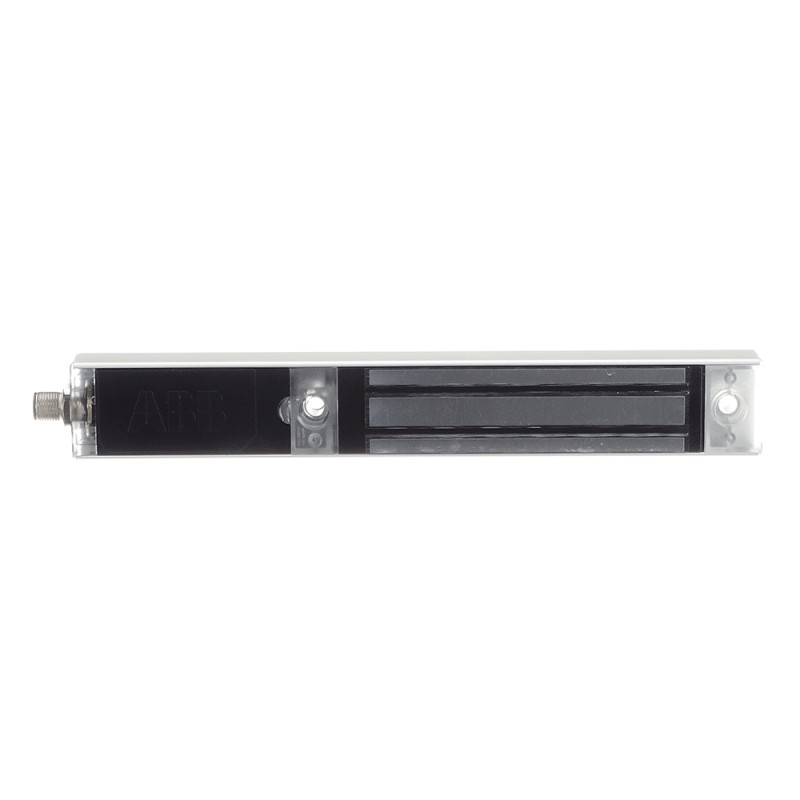

ABB 2TLA042022R2700 2TLA042022R2700 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2TLA042022R2700 ABB Magne 3X with M12-5 connector

Reference: 2TLA042022R2700

Manufacturer: ABB

Description:

Magne 3X with M12-5 connector
Magne 3X M12-5 Lock

Categories:

  • Alarm installations, emergency call and signalling > Permanent magnet for door locking mechanism
  • ABB > Fences and rolling doors

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 167,36 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Ordering
Minimum Order Quantity1 piece
Customs Tariff Number8505902999
Product Main TypeMagne
Product NameLock
FunctionElectromagnetic lock - Anchor plate to be ordered separately
Popular Downloads
Data Sheet, Technical Information2TLC010045L0201
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC170165_EPLAN
Marketing Video2TLC010018N0201
Installation
Instructions and Manuals2TLC172315M0201
Dimensions
Product Net Depth / Length30 mm
Product Net Height274 mm
Product Net Width35 mm
Product Net Weight0.7 kg
CAD Dimensional Drawing2CDC001079B0201
Safety Information
Certification AgencyTÜV Süd
Technical
Communication InterfaceNo safety signal
Connection ConfigurationM12-5 male
Rated Control Supply Voltage (Us)24 V DC
Environmental
Ambient Air TemperatureOperation -20 ... +50 °C
Degree of ProtectionIP67
MaterialHousing: Anodized alunimum with some polycarbonate
Electromagnet: Iron with zinc-nickel coating
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006480
RoHS Declaration2CMT2022-006499
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006522
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
cUL Certificate2TLC010012D0201
Declaration of Conformity - CE2TLC010024D0201
Declaration of Conformity - UKCA2TLC010170D0201
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width26 mm
Package Level 1 Depth / Length290 mm
Package Level 1 Height73 mm
Package Level 1 Gross Weight1.075 kg
Package Level 1 EAN7350024483857
External Classifications and Standards
eClassV11.0 : 27144124
ETIM 7EC001769 - Permanent magnet for door locking mechanism
ETIM 8EC001769 - Permanent magnet for door locking mechanism
ETIM 9EC001769 - Holding magnet for door locking system
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
UNSPSC39122221
Object Classification CodeB
E-Number (Sweden)3831458

ETIM for 2TLA042022R2700 Fire, security and emergency alarm equipment (EC001769)

Feature nameOperating voltage (EF003983)
Feature value24 V
Feature nameVoltage type (EF000187)
Feature valueDC
Feature namePower consumption (EF000346)
Feature value9 W
Feature nameGripping force (EF004769)
Feature value1500 N
Feature nameConstruction type (EF000767)
Feature valueAngular
Feature nameMounting method (EF000003)
Feature valueSurface mounting
Feature nameWith anchor plate (EF005035)
Feature valueNo
Feature nameSuitable for wall mounting (EF000664)
Feature valueYes
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for ceiling mounting (EF021180)
Feature valueNo
Feature nameHousing material (EF001596)
Feature valueOther
Feature nameWidth (EF000008)
Feature value35 mm
Feature nameHeight (EF000040)
Feature value274 mm
Feature nameWall distance (EF005492)
Feature value30 mm
