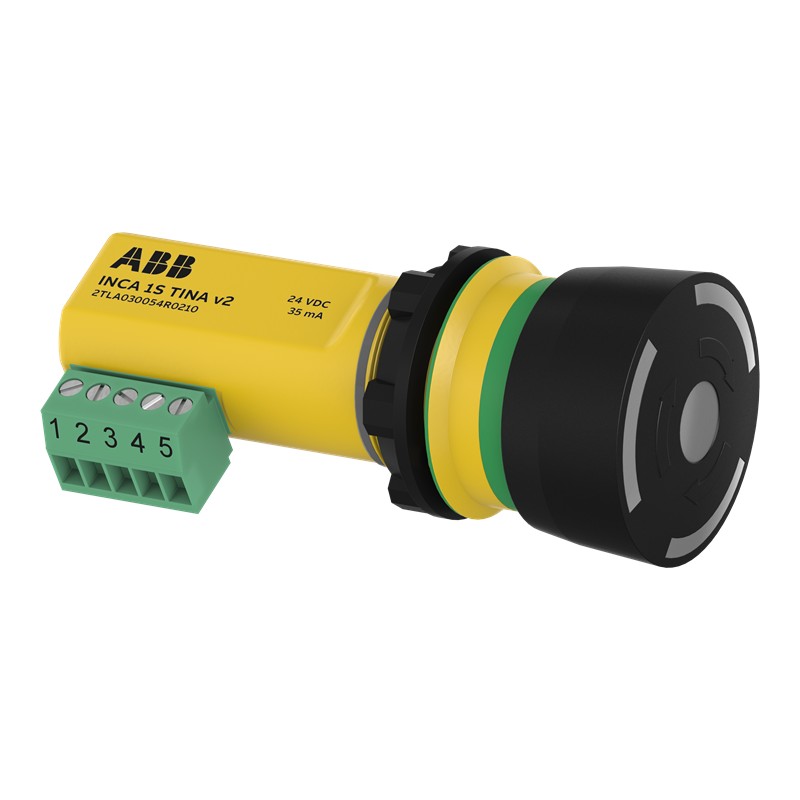

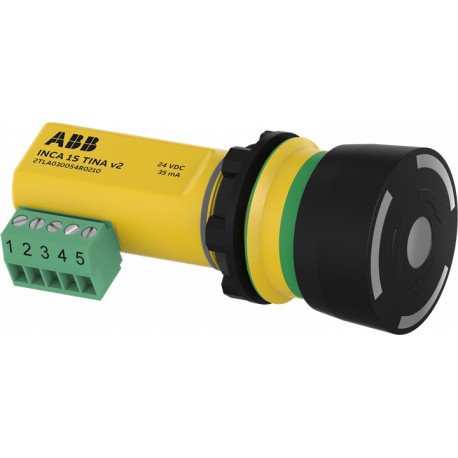

2TLA030054R0210 ABB INCA 1S Tina v2 safety stop
2TLA030054R0210
ABB
INCA 1S Tina v2 safety stop
INCA 1S Tina v2 Safety stop button
Low-voltage industrial components > Push button, complete
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365011 |
| Product Main Type | INCA |
| Product Name | Safety stop button |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Installation | |
| Instructions and Manuals | 2TLC172163M0201 |
| Dimensions | |
| Product Net Depth / Length | 75.5 mm |
| Product Net Height | 32.2 mm |
| Product Net Width | 32.2 mm |
| Product Net Weight | 0.042 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Performance Level (PL) | Up to e |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CSA Certificate | 2TLC172088D0201 |
| Declaration of Conformity - CE | 2TLC172016D0201 |
| Declaration of Conformity - UKCA | 2TLC010154D0201 |
| TÜV Certificate | 2TLC172067D0401 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 136 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 42 mm |
| Package Level 1 Gross Weight | 0.076 kg |
| Package Level 1 EAN | 7350024485820 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371228 |
| ETIM 7 | EC001028 - Push button, complete |
| ETIM 8 | EC001028 - Push button, complete |
| ETIM 9 | EC001028 - Push button, complete |
| UNSPSC | 39121545 |
| Object Classification Code | B |
| E-Number (Finland) | 2314987 |
| E-Number (Sweden) | 3705917 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG SAFETY EN.pdf | 42 Mbytes |
|
| 2TLA030054R0210 EN_2TLA030054R0210.pdf | 751 Kbytes |
|
