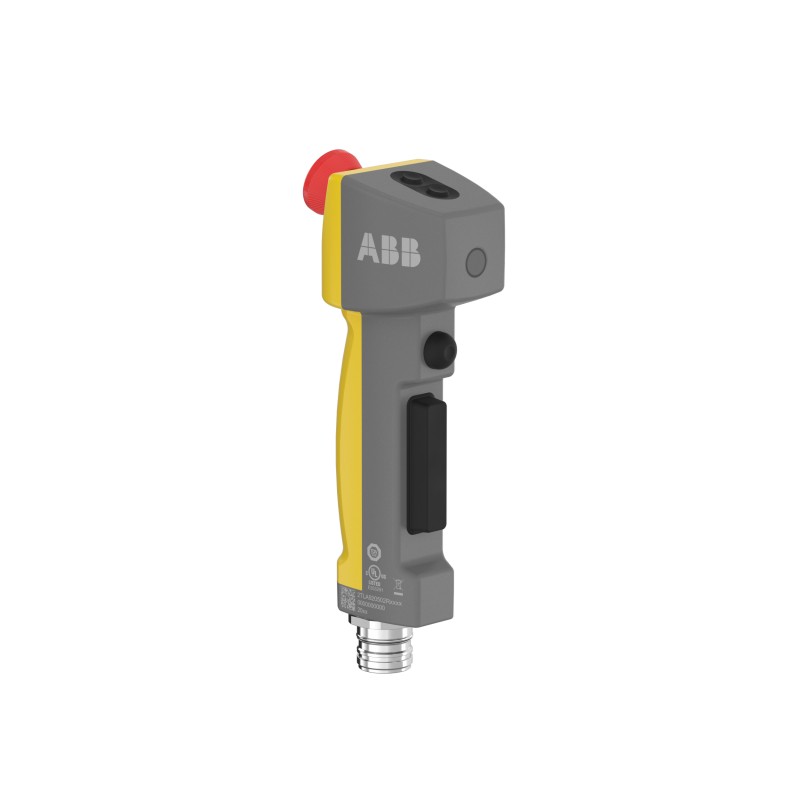

2TLA023001R0100 ABB HD5-S-111 3-position controller
2TLA023001R0100
ABB
HD5-S-111 3-position controller
HD5-S-111 Three-Position Device
Sensors > Agreement switch
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365019 |
| Product Main Type | HD5 |
| Product Name | Three-Position Device |
| Function | Three-position device used to allow a limited movement of the machine when the operator is in the dangerous area. Developed for the Food and Beverage industry. |
| Sub-Function | 1 front and 2 top auxiliary buttons |
| Sub-Function 2 | Flashlight |
| Home position sensor | |
| Motion sensor | |
| Special Functions | Emergency Stop Button |
| Status Indicator | Yes |
| Application | Suitable for Food and Beverage |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010099L0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC170170_EPLAN |
| Marketing Video | 2TLC010018N0201 |
| Installation | |
| Instructions and Manuals | 2TLC010052M0201 |
| Dimensions | |
| Product Net Depth / Length | 75 mm |
| Product Net Height | 185 mm |
| Product Net Width | 55 mm |
| Product Net Weight | 0.26 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Certification Agency | cULus |
| TÜV SÜD | |
| Performance Level (PL) | Up to e |
| B10d Value | Operations to Bottom Position 968 000 |
| Operations to Middle Position 2 million | |
| Technical | |
| Communication Interface | Contacts |
| Connection Configuration | M23-19 male |
| Number of Contacts CO | 2 |
| Number of Contacts NC | 0 |
| Number of Contacts NO | 0 |
| Rated Operational Current DC-12 (Ie) | (24 V) 0.02 A |
| Rated Operational Voltage | 24 V DC |
| Technical UL/CSA | |
| Enclosure Type UL/CSA | 1 |
| Environmental | |
| Ambient Air Temperature | Operation -10 ... 50 °C |
| Storage -20 ... 70 °C | |
| Degree of Protection | IP65 |
| Material | Additional buttons: TPE |
| Handle: Fiberglass reinforced plastic, PPH G30 | |
| Three-position button: TF4STE_B102 | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CCC Certificate | No certification needed |
| CQC Certificate | No certification needed |
| cULus Certificate | 2TLC010050D0201 |
| Declaration of Conformity - CE | 2TLC010055D0201 |
| Declaration of Conformity - UKCA | 2TLC010193D0201 |
| TÜV Certificate | 2TLC010054D0201 |
| 2TLC010053D0201 | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 300 mm |
| Package Level 1 Depth / Length | 300 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Gross Weight | 0.36 kg |
| Package Level 1 EAN | 7350024486070 |
| External Classifications and Standards | |
| eClass | V11.0 : 27371238 |
| ETIM 7 | EC002571 - Agreement switch |
| ETIM 8 | EC002571 - Agreement switch |
| ETIM 9 | EC002571 - Agreement switch |
| Object Classification Code | S |
| E-Number (Sweden) | 3833792 |
