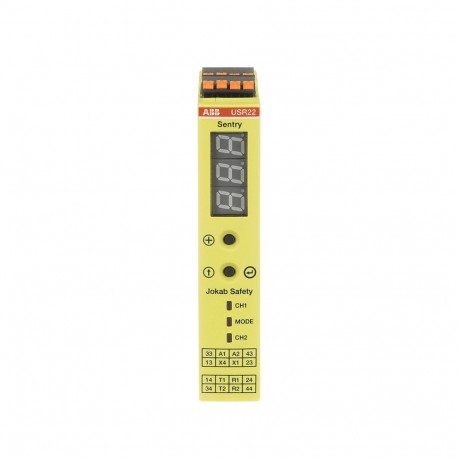

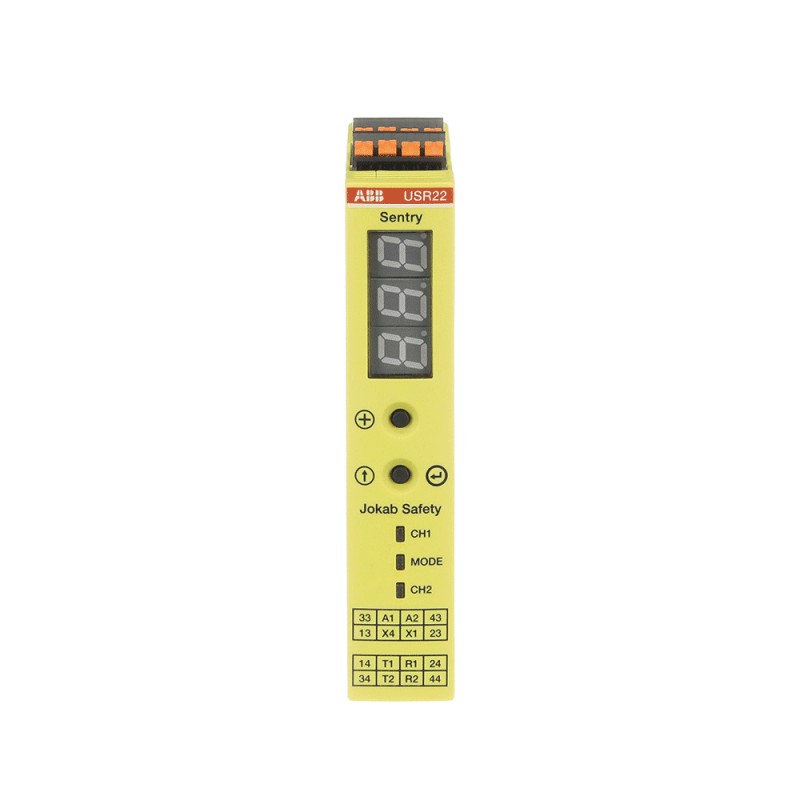

2TLA010070R0401 ABB Sentry USR22P Safety Relay Push-In
2TLA010070R0401
ABB
Sentry USR22P Safety Relay Push-In
Sentry USR22P Safety relay
Relays > Device for monitoring of safety-related circuits
Safety Relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 7350024486353 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010037L0201 |
| Instructions and Manuals | 2TLC010073M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 2TLC010001U0201 |
| Wiring Diagram | 2TLC010017T0001 |
| EPLAN Data | 9AAC188684_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.229 kg |
| Technical | |
| Function | Safety relay for monitoring of safety devices |
| Sub-Function | Start/test input, configurable Manual/Auto reset and Timer, Display (error indication and error log) |
| Timer Relay Type | Multifunction |
| Time Range | 0 ... 999 seconds |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Current AC-15 (Ie) | 3 A |
| Rated Operational Current DC-13 (Ie) | 3 A |
| Degree of Protection | IP20 |
| Connecting Capacity | Crimped Pin 1x0.2...2.5 mm² |
| Crimped Pin 2x0.25...1.5 mm² | |
| Flexible with Ferrule 1x0.2...2.5 mm² | |
| Flexible with Ferrule 2x0.25...1.5 mm² | |
| Solid 1x0.2...2.5 mm² | |
| Solid 2x0.25...1.5 mm² | |
| Wire Stripping Length | 6.5 mm |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | IS0 13849 |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Crimped Pin 1x 24-14 AWG |
| Flexible with Ferrule 1x 24-14 AWG | |
| Solid 1x 24-14 AWG | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +65 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| Certificates and Declarations | |
| CQC Certificate | CQC2017010303977544 |
| Declaration of Conformity - CCC | 2020980303000244 |
| Declaration of Conformity - CE | 2TLC010010D0201 |
| Declaration of Conformity - UKCA | 2TLC010190D0201 |
| TÜV Certificate | 2TLC010008D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 31 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.29 kg |
| Package Level 1 EAN | 7350024486353 |
| Package Level 2 Units | 36 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 10.7 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
| eClass | V11.0 : 27371819 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712907 |
| E-Number (Sweden) | 3861423 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for monitoring of position switches (EF007270) | Yes |
| Suitable for monitoring of emergency-stop circuits (EF007268) | Yes |
| Suitable for monitoring of valves (EF007272) | Yes |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | Yes |
| Suitable for monitoring of tactile sensors (EF007271) | Yes |
| Suitable for monitoring of magnetic switches (EF007266) | Yes |
| Suitable for monitoring of proximity switches (EF007267) | Yes |
| Type of electric connection (EF003961) | Plug-in connection |
| Suitable for rail mounting (EF003972) | Yes |
| With detachable clamps (EF003340) | Yes |
| Evaluation inputs (EF008245) | One- and two-channel |
| With start input (EF003342) | Yes |
| With muting function (EF004057) | No |
| With feedback circuit (EF003343) | Yes |
| Release-delay (EF001129) | 20 s |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 2 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 2 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Type of safety according to IEC 61496-1 (EF004105) | 4 |
| Stop category according to IEC 60204 (EF007498) | 0 + 1 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| SIL according to IEC 61508 (EF009889) | 3 |
| With approval for BG BIA (EF004145) | No |
| With approval according to UL (EF001783) | Yes |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 120 mm |
| Depth (EF000049) | 120 mm |
