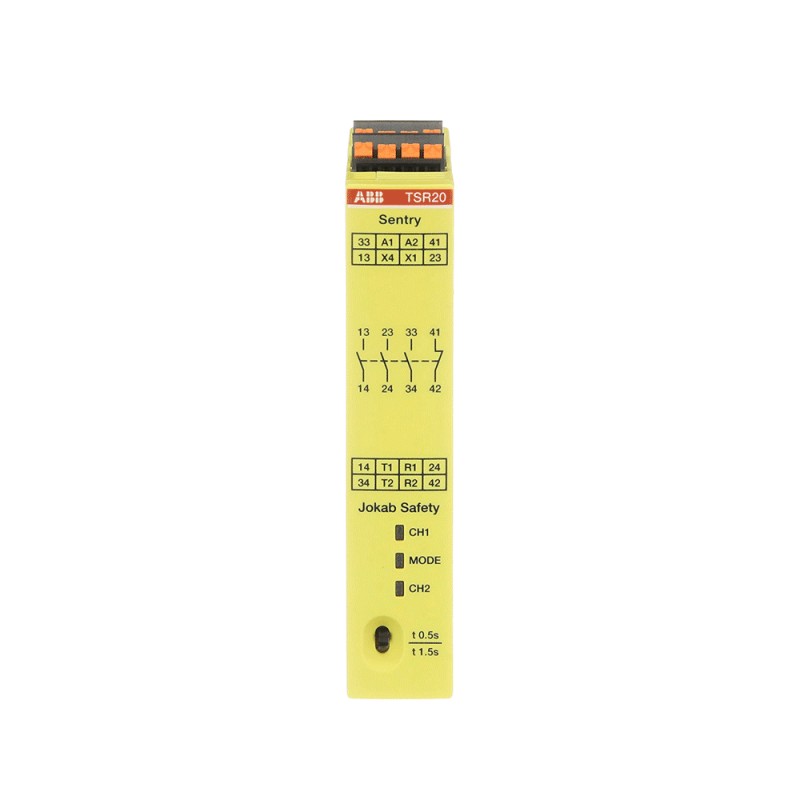

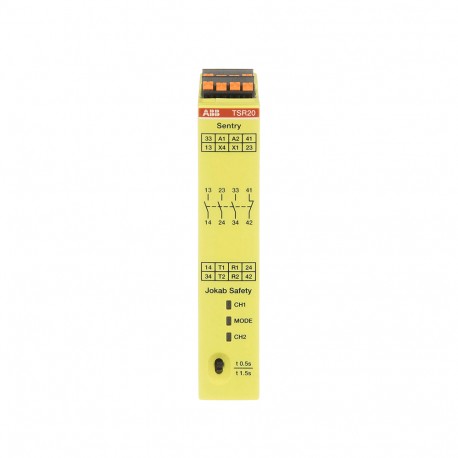

2TLA010061R0001 ABB Sentry TSR20P Push-In Safety Relay
2TLA010061R0001
ABB
Sentry TSR20P Push-In Safety Relay
Sentry TSR20P Safety relay
Relays > Device for monitoring of safety-related circuits
Safety Relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 7350024486322 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010037L0201 |
| Instructions and Manuals | 2TLC010070M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 2TLC010001U0201 |
| Wiring Diagram | 2TLC010014T0001 |
| EPLAN Data | 9AAC188683_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.207 kg |
| Technical | |
| Function | Safety relay for monitoring of safety devices |
| Sub-Function | Start/test input, Auto reset only, Time delay selectable by switch |
| Timer Relay Type | OFF-Delay |
| Time Range | 1.5 seconds |
| 0.5 second | |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Current AC-15 (Ie) | 5 A |
| Rated Operational Current DC-13 (Ie) | 6 A |
| Degree of Protection | IP20 |
| Connecting Capacity | Crimped Pin 1x0.2...2.5 mm² |
| Crimped Pin 2x0.25...1.5 mm² | |
| Flexible with Ferrule 1x0.2...2.5 mm² | |
| Flexible with Ferrule 2x0.25...1.5 mm² | |
| Solid 1x0.2...2.5 mm² | |
| Solid 2x0.25...1.5 mm² | |
| Wire Stripping Length | 6.5 mm |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | IS0 13849 |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Crimped Pin 1x 24-14 AWG |
| Flexible with Ferrule 1x 24-14 AWG | |
| Solid 1x 24-14 AWG | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +65 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a47f60c6-ec10-49dd-b3eb-51dbd4b43d38 Germany |
| Simplified SCIP | 01949b16-b25a-4b95-8749-f20fccca7bef Italy |
| 05ae80d1-bc6c-42f6-997d-46a2f1068ca7 Sweden | |
| 21e26156-5bbd-463d-ac40-ababcf47a226 Germany | |
| 2f42d9ab-9d5a-4fa9-8626-a2bfb8e4b27f Greece | |
| 2f70ba34-2eb0-4d7f-addc-6c6cd76cdc2d Hungary | |
| 3cc5b7a9-96e4-4025-a2ee-92c39eacb403 Poland | |
| 3f13a409-2e9e-44d8-91db-a5e1923dfc08 France | |
| 53546ccb-d922-4063-848f-63716e6c7259 Sweden | |
| 5adaf038-9683-4386-b11a-40d3509925d1 Czech Republic | |
| 5daf18b5-09e3-4a7d-b862-36b11a49073f Netherlands | |
| 61561eb3-63fd-40aa-923f-2d1c3c9730e2 Belgium | |
| 7013e35f-b501-4cbe-bbdd-0a4cbc4a3273 Norway | |
| 763e510e-27c4-4b72-b868-1926f5a2a6ba Denmark | |
| 777d9b53-3588-42bf-b912-208d88684b0a France | |
| 7d250e75-4225-43a3-9401-eca858cccaf2 Portugal | |
| 7e2f4b6b-29e5-43e0-8324-bad23e445a03 Spain | |
| b419568e-835f-4ba5-a9cb-54cd9df6fcef Bulgaria | |
| cdc6848b-5286-45d0-85d9-4791c8839345 Germany | |
| d1a013bd-0dd3-475e-988c-33e2bb96af5f Finland | |
| d21bcf60-15cf-4e01-b831-615bd1ed9db6 Germany | |
| dfb26b54-9177-41fc-8ce2-9a4b7732134d Croatia | |
| ed18e597-ce8e-4009-a42d-97a0f24dd08e Poland | |
| f125236c-6b2e-4be5-b827-552ddf15f07c Poland | |
| fe12a554-6907-455b-992a-ea4565778d14 Hungary | |
| fe1b68aa-bdcc-4669-827b-064cb3340e29 Germany | |
| fe3e1b08-b0a4-44b8-9942-be99a4f9ed14 Estonia | |
| ff645181-eb8e-478b-bfa6-2aba4294cc94 Belgium | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| Certificates and Declarations | |
| CQC Certificate | CQC2017010303977544 |
| cUL Certificate | 2TLC010006D0201 |
| Declaration of Conformity - CCC | 2020980303000244 |
| Declaration of Conformity - CE | 2TLC010010D0201 |
| Declaration of Conformity - UKCA | 2TLC010190D0201 |
| TÜV Certificate | 2TLC010008D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 31 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.268 kg |
| Package Level 1 EAN | 7350024486322 |
| Package Level 2 Units | 36 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 9.9 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
| eClass | V11.0 : 27371819 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712904 |
| E-Number (Sweden) | 3861417 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Suitable for monitoring of position switches (EF007270) | Yes |
| Suitable for monitoring of emergency-stop circuits (EF007268) | Yes |
| Suitable for monitoring of valves (EF007272) | Yes |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | Yes |
| Suitable for monitoring of tactile sensors (EF007271) | No |
| Suitable for monitoring of magnetic switches (EF007266) | Yes |
| Suitable for monitoring of proximity switches (EF007267) | Yes |
| Type of electric connection (EF003961) | Plug-in connection |
| Suitable for rail mounting (EF003972) | Yes |
| With detachable clamps (EF003340) | Yes |
| Evaluation inputs (EF008245) | One- and two-channel |
| With start input (EF003342) | Yes |
| With muting function (EF004057) | No |
| With feedback circuit (EF003343) | Yes |
| Release-delay (EF001129) | 20 s |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 4 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Type of safety according to IEC 61496-1 (EF004105) | 4 |
| Stop category according to IEC 60204 (EF007498) | 1 |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| SIL according to IEC 61508 (EF009889) | 3 |
| With approval for BG BIA (EF004145) | No |
| With approval according to UL (EF001783) | Yes |
| Width (EF000008) | 22.5 mm |
| Height (EF000040) | 120 mm |
| Depth (EF000049) | 120 mm |
