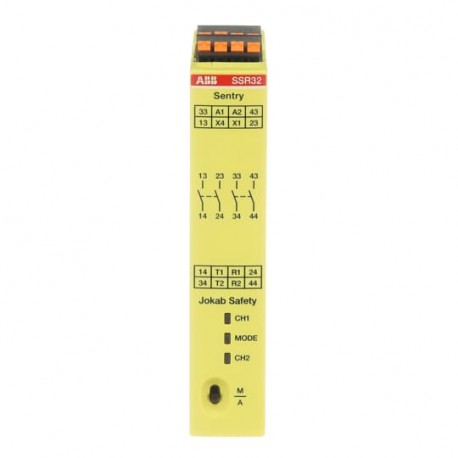

ABBSafety Relays2TLA010052R0401 ABB Sentry SSR32P Safety Relay Push-In

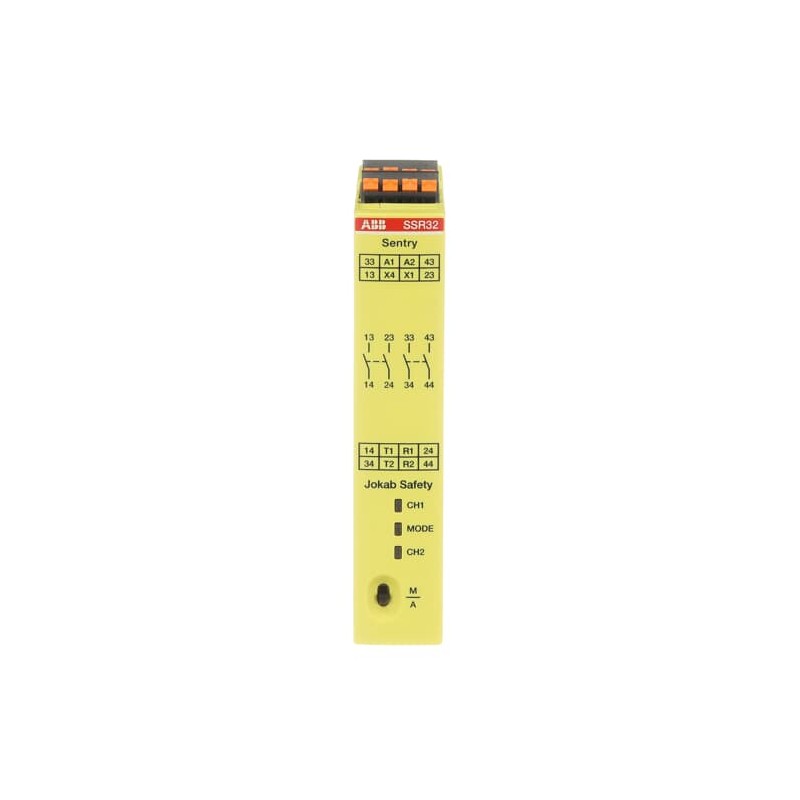

ABB 2TLA010052R0401 2TLA010052R0401 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2TLA010052R0401 ABB Sentry SSR32P Safety Relay Push-In

Reference: 2TLA010052R0401

Manufacturer: ABB

Description:

Sentry SSR32P Safety Relay Push-In
Sentry SSR32P Safety relay

Categories:

  • Relays > Device for monitoring of safety-related circuits
  • ABB > Safety Relays

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 198,71 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Ordering
EAN7350024486292
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2TLC010037L0201
Instructions and Manuals2TLC010067M0201
CAD Dimensional Drawing2CDC001079B0201
Dimension Diagram2TLC010001U0201
Wiring Diagram2TLC010011T0001
EPLAN Data9AAC188686_EPLAN
Marketing Video2TLC010019N0201
2TLC010018N0201
Dimensions
Product Net Width22.5 mm
Product Net Height120 mm
Product Net Depth / Length120 mm
Product Net Weight0.207 kg
Technical
FunctionSafety relay for monitoring of safety devices
Sub-FunctionStart/test input, Manual/Auto reset selectable by switch
Timer Relay TypeOFF-Delay
Time Range0.5 second
Rated Control Supply Voltage (Us)24 V DC
Rated Operational Current AC-15 (Ie)3 A
Rated Operational Current DC-13 (Ie)3 A
Degree of ProtectionIP20
Connecting CapacityCrimped Pin 1x0.2...2.5 mm²
Crimped Pin 2x0.25...1.5 mm²
Flexible with Ferrule 1x0.2...2.5 mm²
Flexible with Ferrule 2x0.25...1.5 mm²
Solid 1x0.2...2.5 mm²
Solid 2x0.25...1.5 mm²
Wire Stripping Length6.5 mm
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
StandardsIS0 13849
Technical UL/CSA
Connecting Capacity UL/CSACrimped Pin 1x 24-14 AWG
Flexible with Ferrule 1x 24-14 AWG
Solid 1x 24-14 AWG
Environmental
Ambient Air TemperatureOperation -25 ... +65 °C
Storage -40 ... +70 °C
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006480
RoHS Declaration2CMT2022-006499
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006522
Certificates and Declarations
CQC CertificateCQC2017010303977544
cUL Certificate2TLC010006D0201
Declaration of Conformity - CCC2020980303000244
Declaration of Conformity - CE2TLC010010D0201
Declaration of Conformity - UKCA2TLC010190D0201
TÜV Certificate2TLC010008D0201
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width125 mm
Package Level 1 Depth / Length31 mm
Package Level 1 Height129 mm
Package Level 1 Gross Weight0.268 kg
Package Level 1 EAN7350024486292
Package Level 2 Units36 piece
Package Level 2 Width280 mm
Package Level 2 Depth / Length395 mm
Package Level 2 Height210 mm
Package Level 2 Gross Weight9.9 kg
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001449 - Device for monitoring of safety-related circuits
ETIM 8EC001449 - Device for monitoring of safety-related circuits
ETIM 9EC001449 - Device for monitoring of safety-related circuits
eClassV11.0 : 27371819
UNSPSC39122331
E-Number (Finland)2712901
E-Number (Sweden)3861411

ETIM for 2TLA010052R0401 Relays (EC001449)

Feature nameModel (EF000010)
Feature valueOther
Feature nameSuitable for monitoring of position switches (EF007270)
Feature valueYes
Feature nameSuitable for monitoring of emergency-stop circuits (EF007268)
Feature valueYes
Feature nameSuitable for monitoring of valves (EF007272)
Feature valueYes
Feature nameSuitable for monitoring of optoelectronic protection equipment (EF007269)
Feature valueYes
Feature nameSuitable for monitoring of tactile sensors (EF007271)
Feature valueNo
Feature nameSuitable for monitoring of magnetic switches (EF007266)
Feature valueYes
Feature nameSuitable for monitoring of proximity switches (EF007267)
Feature valueYes
Feature nameType of electric connection (EF003961)
Feature valuePlug-in connection
Feature nameSuitable for rail mounting (EF003972)
Feature valueYes
Feature nameWith detachable clamps (EF003340)
Feature valueYes
Feature nameEvaluation inputs (EF008245)
Feature valueOne- and two-channel
Feature nameWith start input (EF003342)
Feature valueYes
Feature nameWith muting function (EF004057)
Feature valueNo
Feature nameWith feedback circuit (EF003343)
Feature valueYes
Feature nameRelease-delay (EF001129)
Feature value20 s
Feature nameNumber of outputs, safety related, undelayed, with contact (EF003344)
Feature value2
Feature nameNumber of outputs, safety related, delayed, with contact (EF003345)
Feature value2
Feature nameNumber of outputs, safety related, undelayed, semiconductors (EF003346)
Feature value0
Feature nameNumber of outputs, safety related, delayed, semiconductors (EF003347)
Feature value0
Feature nameNumber of outputs, signalling function, undelayed, with contact (EF003348)
Feature value0
Feature nameNumber of outputs, signalling function, delayed, with contact (EF003349)
Feature value0
Feature nameNumber of outputs, signalling function, undelayed, semiconductors (EF003350)
Feature value0
Feature nameNumber of outputs, signalling function, delayed, semiconductors (EF003351)
Feature value0
Feature nameType of safety according to IEC 61496-1 (EF004105)
Feature value4
Feature nameStop category according to IEC 60204 (EF007498)
Feature value0 + 1
Feature namePerformance level according to EN ISO 13849-1 (EF007399)
Feature valueLevel e
Feature nameSIL according to IEC 61508 (EF009889)
Feature value3
Feature nameWith approval for BG BIA (EF004145)
Feature valueNo
Feature nameWith approval according to UL (EF001783)
Feature valueYes
Feature nameWidth (EF000008)
Feature value22.5 mm
Feature nameHeight (EF000040)
Feature value120 mm
Feature nameDepth (EF000049)
Feature value120 mm
