Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...

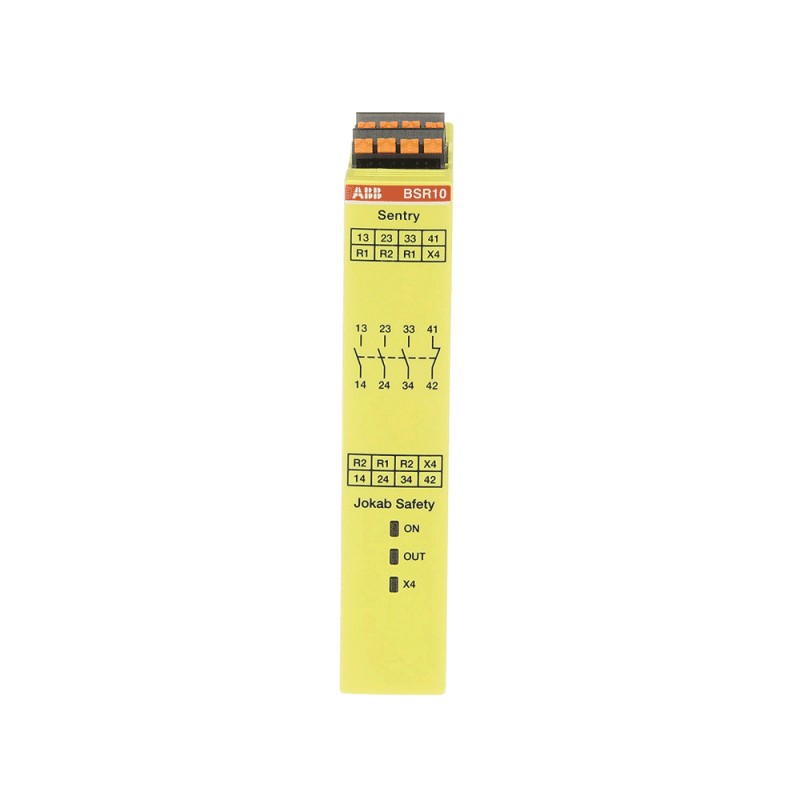

Images are for illustrative purposes only. Please refer to data sheet for details.
Reference: 2TLA010040R0001
Manufacturer: ABB
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
LAST VIEWED
| Ordering | |
|---|---|
| EAN | 7350024483888 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010037L0201 |
| Instructions and Manuals | 2TLC010060M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 2TLC010001U0201 |
| Wiring Diagram | 2TLC010004T0001 |
| EPLAN Data | 9AAC188683_EPLAN |
| Marketing Video | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| Dimensions | |
| Product Net Width | 22.5 mm |
| Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.19 kg |
| Technical | |
| Function | Expansion relay - No monitoring of two channel fault |
| Sub-Function | Start/test input |
| Timer Relay Type | No Time Delay |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Current AC-15 (Ie) | 5 A |
| Rated Operational Current DC-13 (Ie) | 6 A |
| Degree of Protection | IP20 |
| Connecting Capacity | Crimped Pin 1x0.2...2.5 mm² |
| Crimped Pin 2x0.25...1.5 mm² | |
| Flexible with Ferrule 1x0.2...2.5 mm² | |
| Flexible with Ferrule 2x0.25...1.5 mm² | |
| Solid 1x0.2...2.5 mm² | |
| Solid 2x0.25...1.5 mm² | |
| Wire Stripping Length | 6.5 mm |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Standards | IS0 13849 |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | Crimped Pin 1x 24-14 AWG |
| Flexible with Ferrule 1x 24-14 AWG | |
| Solid 1x 24-14 AWG | |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +65 °C |
| Storage -40 ... +70 °C | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Simplified SCIP | 001e3c87-0d3d-4c35-be98-e98822da04ac Belgium |
| 0123d2f5-98de-4b71-afa6-0ef5b37c0b87 Germany | |
| 0c38c00e-83b5-4680-b4ba-d00bbd562872 France | |
| 0d458c1f-ad38-4d3d-9dc8-c6f02ec9e068 Spain | |
| 189dcc5e-78b9-4a79-a84f-b2a95287bd84 Croatia | |
| 193f5f89-a03c-438e-9888-28cbca608fbd Czech Republic | |
| 2842d631-f8dc-4d93-b274-ecbb9d73751a Hungary | |
| 35dbf8db-09ab-4456-88fa-3cd26de3f2cf Estonia | |
| 3f46b87a-8796-4ca0-a136-eccc25a97f82 Denmark | |
| 505c1edb-bf72-4d63-8b36-1b6fc75560ee Sweden | |
| 6f697530-56ff-4b1c-913d-9d226268dcbe Greece | |
| 7c6f47e6-9ecb-4306-b38c-fb9207112ce3 Norway | |
| 9f1a0ca6-3ef8-4966-9dc1-2ee39ee985b7 Italy | |
| ac5e7f96-3339-49aa-a907-ca158975ba3d Poland | |
| ae152dab-ee6b-4557-a8d9-c08e4fc74aa8 Finland | |
| b6c40f1f-206f-4920-9368-33775ea0b9d2 Portugal | |
| d328a8f6-18c6-4293-bd0c-70cb3b480b30 Netherlands | |
| dd14de12-d872-482d-94b4-f4d278135f62 Bulgaria | |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| Certificates and Declarations | |
| CQC Certificate | CQC2017010303977544 |
| cUL Certificate | 2TLC010006D0201 |
| Declaration of Conformity - CCC | 2020980303000244 |
| Declaration of Conformity - CE | 2TLC010010D0201 |
| Declaration of Conformity - UKCA | 2TLC010190D0201 |
| TÜV Certificate | 2TLC010008D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 31 mm |
| Package Level 1 Height | 129 mm |
| Package Level 1 Gross Weight | 0.251 kg |
| Package Level 1 EAN | 7350024483888 |
| Package Level 2 Units | 36 piece |
| Package Level 2 Width | 280 mm |
| Package Level 2 Depth / Length | 395 mm |
| Package Level 2 Height | 210 mm |
| Package Level 2 Gross Weight | 9.3 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
| eClass | V11.0 : 27371819 |
| UNSPSC | 39122331 |
| E-Number (Finland) | 2712894 |
| E-Number (Sweden) | 3861398 |
