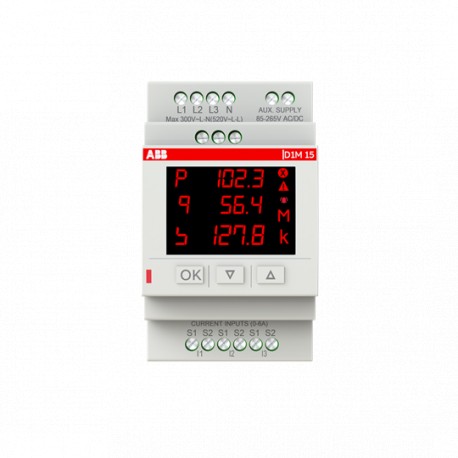

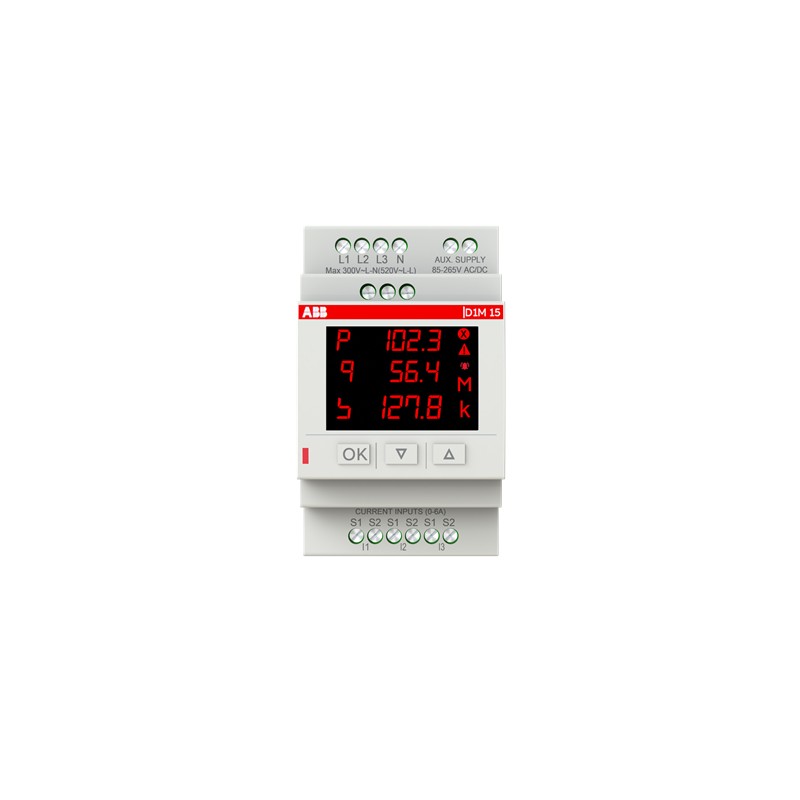

2TAZ665050R2000 ABB D1M15 Network Analyzer
2TAZ665050R2000
ABB
D1M15 Network Analyzer
D1M 15 is a multimeter with aux supply 85-265 V AC/DC, 2 digital outputs, class 1 accuracy for active energy according to IEC 61557-12 PMD, LED display
AER and Transformers
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲- Extended Product Type:
- D1M 15
- Product ID:
- 2TAZ665050R2000
- Catalog Description:
- D1M 15 Multimeter
- Long Description:
- D1M 15 is a multimeter with aux supply 85-265 V AC/DC, 2 digital outputs, class 1 accuracy for active energy according to IEC 61557-12 PMD, LED display
Eco Transparency
- Environmental Product Declaration - EPD:
- 9AKK108468A7055
Technical
- Standards:
- IEC 61557-12
IEC 62053-21
- Rated Voltage (Ur):
- 80-300 (L-N) V AC
- Rated Current (In):
- 1 A
5 A
- Frequency (f):
- 50 … 60 Hz
- Power Consumption (@Pcons):
- Max 5 V·A
- Accuracy:
- Active Energy ±1%
- Number of Phases:
- Single-phase
Three-phase
- Mounting Type:
- DIN-Rail
- I/O Option:
- 2 Digital outputs
- Number of Batteries:
- 0
Material Compliance
- RoHS Information:
- 9AKK108468A9969
- RoHS Status:
- Following EU Directive 2011/65/EU
- RoHS Date:
- 20231102
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Environmental
- Ambient Air Temperature:
- Operation -5 ... 55 °C
Storage -25 ... 70 °C
- Degree of Protection:
- Front IP51
Terminals IP20
- Pollution Degree:
- 2
Dimensions
- Product Net Width:
- 52.5mm
- Product Net Height:
- 89mm
- Product Net Depth / Length:
- 63.5mm
- Product Net Weight:
- 0.252kg
Ordering
- Package Level 1 Units:
- box 1 piece
- Package Level 1 Gross Weight:
- 0.25 kg
Installation
- Instructions and Manuals:
- 9AKK108468A5636
Classifications
- ETIM 8:
- EC000069 - Multimeter
- ETIM 9:
- EC000069 - Multimeter
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Business
- CN8:
- 90303100
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ENERGY EFFICIENCY EN.pdf | 4 Mbytes |
|
| PDF CATALOG ABB M4M EN.pdf | 587 Kbytes |
|
| 2TAZ665050R2000 EN_2TAZ665050R2000.pdf | 332 Kbytes |
|
