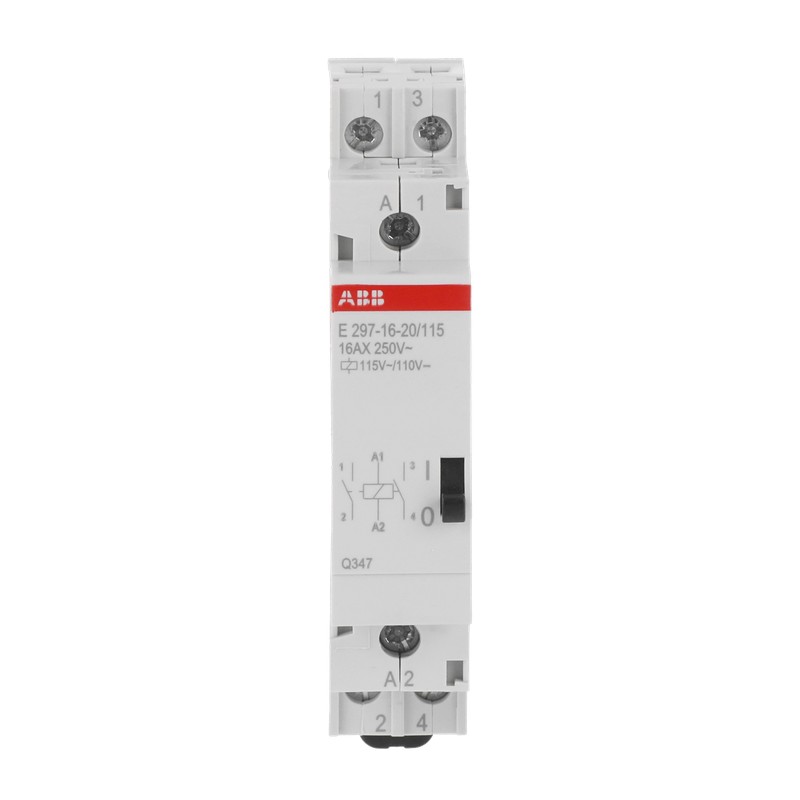

2TAZ311000R2022 ABB E297-16-20/115 Installation relay
2TAZ311000R2022
ABB
E297-16-20/115 Installation relay
Relay of inst. E297-16-20/115 1P 16A 2NA
Devices for distribution board-/surface mounting > Installation relay
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Technical | |
|---|---|
| Function | Monostable installation relay |
| Rated Control Circuit Voltage (Uc) | 115 V AC |
| 110 V DC | |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Sound dB (A) | (@distance 1 m) 60 dB |
| Tightening Torque | 1.2 - 1.5 N·m |
| Response Time | <3 ms |
| Contact Type | Normally Open (NO) |
| Coil Consumption | Control Voltage V AC 115 V AC |
| Average Pull-in Value 50 Hz 0.90 A | |
| Average Holding Value 50 Hz 1.676 W | |
| Average Holding Value 50 Hz 0.019 A | |
| Control Voltage V AC 110 V DC | |
| Average Pull-in Value DC 0.90 A | |
| Average Holding Value DC 1.676 W | |
| Average Holding Value DC 0.019 A | |
| Connecting Capacity | Solid 1 x 1 ... 10 mm² |
| Flexible 2 x 2.5 mm² | |
| Flexible with Cable End 1 x 0.75 ... 6 mm² | |
| Flexible with Cable Lug 1 x 0.75 ... 6 mm² | |
| Electrical | |
| Rated Voltage (Ur) | 250 V AC |
| Rated Operational Voltage | 250 V AC |
| Supply Voltage | 103.5 ... 126.5 V AC |
| Rated Insulation Voltage (Ui) | 115 V AC/DC |
| Rated Control Supply Voltage (Us) | 115 V AC |
| 110 V DC | |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Current (In) | 16 A |
| Rated Frequency (f) | 50 .. 60 Hz |
| Maximum Lamp Load | 3000 W |
| Flourescent, Uncorrected Power Factor (cos. 0.5) 1800 W | |
| Flourescent, Corrected Power Factor (cos. 0.9): Serial 3000 W | |
| Flourescent, Corrected Power Factor (cos. 0.9): Parallel 2500 W | |
| Flourescent, Corrected Power Factor (cos. 0.9): Single 1800 W | |
| Flourescent, Corrected Power Factor (cos. 0.9): Double 2500 W | |
| Power Loss | Total 1 W |
| Number of Contacts NO | 2 |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 2CCC005103D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20170426 |
| REACH Declaration | 2CCC005047D0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20190425 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25...+55 °C |
| Storage -40...+70 °C | |
| Environmental Information | 2CCC441012D0202 |
| Dimensions | |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 18 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 62 mm |
| Product Net Weight | 121 g |
| Built-In Depth (t2) | 62 mm |
| Dimension Diagram | 9AKK107992A6188 |
| Ordering | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Gross Weight | 1286 g |
| E-Number (Norway) | 1404057 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CCC005103D0201 |
| Declaration of Conformity - UKCA | 9AKK108467A6140 |
| VDE Certificate | VDE_E297_40041228 |
| Installation | |
| Instructions and Manuals | 2CCC441006M0801 |
| Mounting Type | DIN-Rail |
| Mounting Position | Any |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CCC441020C0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001652 - Installation relay |
| ETIM 10 | EC001652 - Installation relay |
| UNSPSC | 39122315 |
| eClass | V11.0 : 27142309 |
| Object Classification Code | K |
| Standards | EN 60669-1 |
| EN 60669-2-2 | |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | DIN rail |
| Width in number of modular spacings (EF002950) | 1 |
| Built-in depth (EF000218) | 62 mm |
| Number of contacts as normally open contact (EF008256) | 2 |
| Rated current (EF000227) | 16 A |
| Supply voltage (EF004127) | 103.5 V |
| Voltage type (supply voltage) (EF002991) | AC |
| Max. load fluorescent lamp (EF004971) | 1800 VA |
