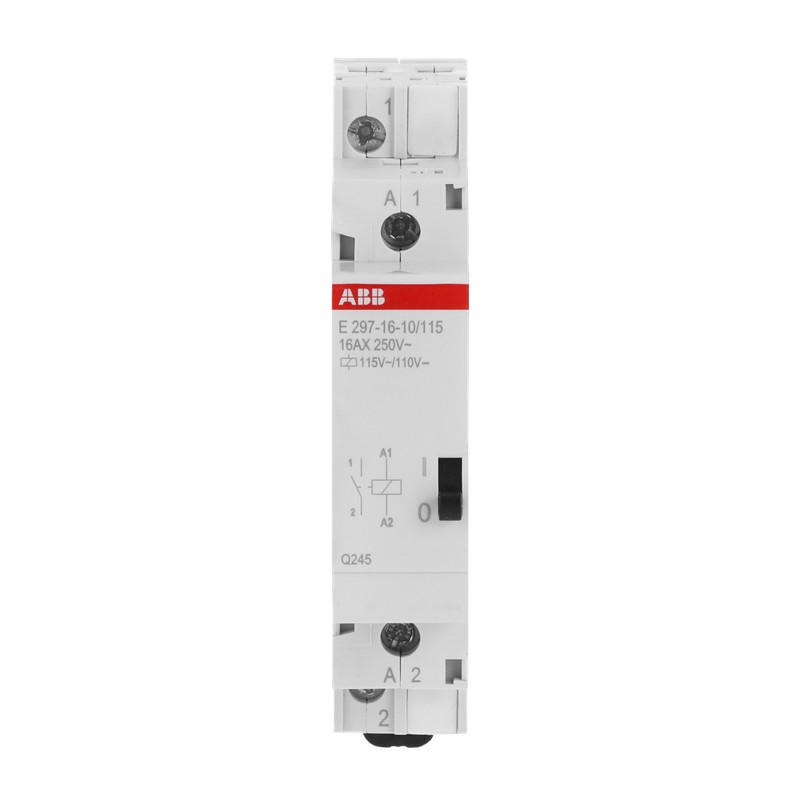

ABB 2TAZ311000R2021 2TAZ311000R2021 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2TAZ311000R2021 ABB E297-16-10/115 Installation relay

Reference: 2TAZ311000R2021

Manufacturer: ABB

Description:

E297-16-10/115 Installation relay

Relay of inst. E297-16-10/115 1p 16A 1NA

Categories:

Devices for distribution board-/surface mounting > Installation relay
ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 46,92 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Technical
Function	Monostable installation relay
Rated Control Circuit Voltage (U_c)	115 V AC
	110 V DC
Number of Main Contacts NC	0
Number of Main Contacts NO	1
Number of Auxiliary Contacts NC	0
Number of Auxiliary Contacts NO	0
Sound dB (A)	(@distance 1 m) 60 dB
Tightening Torque	1.2 - 1.5 N·m
Response Time	<3 ms
Contact Type	Normally Open (NO)
Coil Consumption	Control Voltage V AC 115 V AC
	Average Pull-in Value 50 Hz 0.90 A
	Average Holding Value 50 Hz 1.676 W
	Average Holding Value 50 Hz 0.019 A
	Control Voltage V AC 110 V DC
	Average Pull-in Value DC 0.90 A
	Average Holding Value DC 1.676 W
	Average Holding Value DC 0.019 A
Connecting Capacity	Solid 1 x 1 ... 10 mm²
	Flexible 2 x 2.5 mm²
	Flexible with Cable End 1 x 0.75 ... 6 mm²
	Flexible with Cable Lug 1 x 0.75 ... 6 mm²
Electrical
Rated Voltage (U_r)	250 V AC
Rated Operational Voltage	250 V AC
Supply Voltage	103.5 ... 126.5 V AC
Rated Insulation Voltage (U_i)	115 V AC/DC
Rated Control Supply Voltage (U_s)	115 V AC
	110 V DC
Rated Impulse Withstand Voltage (U_imp)	4 kV
Rated Current (I_n)	16 A
Rated Frequency (f)	50 .. 60 Hz
Maximum Lamp Load	3000 W
	Flourescent, Uncorrected Power Factor (cos. 0.5) 1800 W
	Flourescent, Corrected Power Factor (cos. 0.9): Serial 3000 W
	Flourescent, Corrected Power Factor (cos. 0.9): Parallel 2500 W
	Flourescent, Corrected Power Factor (cos. 0.9): Single 1800 W
	Flourescent, Corrected Power Factor (cos. 0.9): Double 2500 W
Power Loss	Total 0.5 W
Number of Contacts NO	1
Design
RAL Number	RAL 7035 - Light Grey
Color	Grey
Material Compliance
RoHS Declaration	2CCC005103D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20170426
REACH Declaration	2CCC005047D0201
REACH Information	False - does not contain substances > 0.1 mass percentage
REACH Date	20190425
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Consumer
Environmental
Ambient Air Temperature	Operation -25...+55 °C
	Storage -40...+70 °C
Environmental Information	2CCC441012D0202
Dimensions
Width in Number of Modular Spacings	1
Product Net Width	18 mm
Product Net Height	85 mm
Product Net Depth / Length	62 mm
Product Net Weight	113 g
Built-In Depth (t₂)	62 mm
Dimension Diagram	9AKK107992A6188
Ordering
Package Level 1 Units	box 10 piece
Package Level 1 Gross Weight	1206 g
E-Number (Norway)	1404045
Certificates and Declarations
Declaration of Conformity - CE	2CCC005103D0201
Declaration of Conformity - UKCA	9AKK108467A6140
VDE Certificate	VDE_E297_40041228
Installation
Instructions and Manuals	2CCC441006M0801
Mounting Type	DIN-Rail
Mounting Position	Any
Popular Downloads
Data Sheet, Technical Information	2CCC441020C0201
External Classifications and Standards
ETIM 9	EC001652 - Installation relay
ETIM 10	EC001652 - Installation relay
UNSPSC	39122315
eClass	V11.0 : 27142309
Object Classification Code	K
Standards	EN 60669-1
	EN 60669-2-2

ETIM for 2TAZ311000R2021 Modular devices for distribution board/surface mounting (EC001652)

Feature nameMounting method (EF000003)

Feature valueDIN rail

Feature nameWidth in number of modular spacings (EF002950)

Feature value1

Feature nameBuilt-in depth (EF000218)

Feature value62 mm

Feature nameNumber of contacts as normally open contact (EF008256)

Feature value1

Feature nameRated current (EF000227)

Feature value16 A

Feature nameSupply voltage (EF004127)

Feature value103.5 V

Feature nameVoltage type (supply voltage) (EF002991)

Feature valueAC

Feature nameMax. load fluorescent lamp (EF004971)

Feature value1800 VA
