ABBOther modular devices2TAM923100R3401 ABB Prot. envelope eOVRT2-T33N20-275

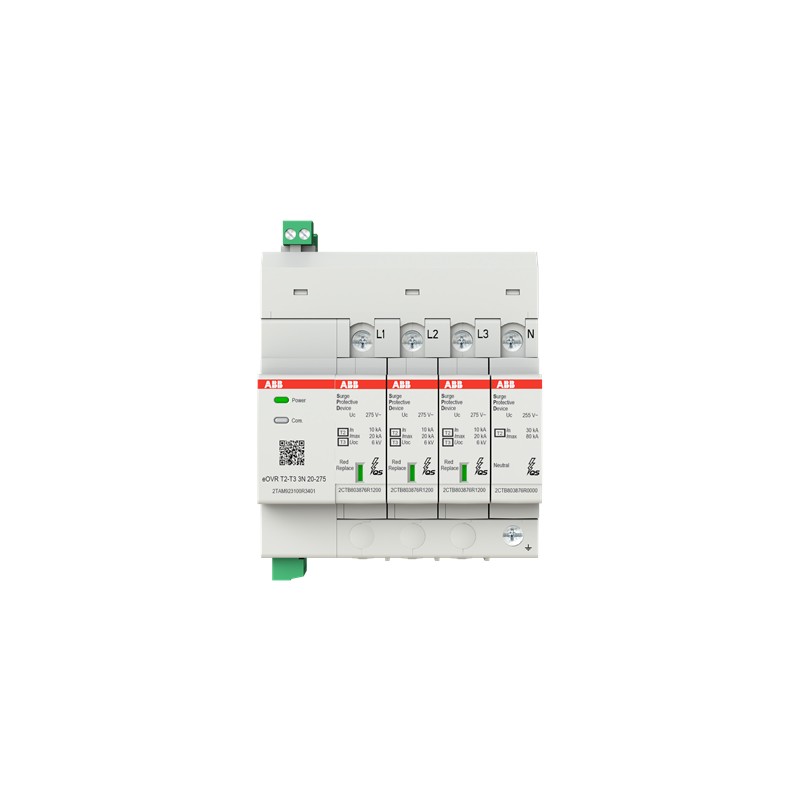

ABB 2TAM923100R3401 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

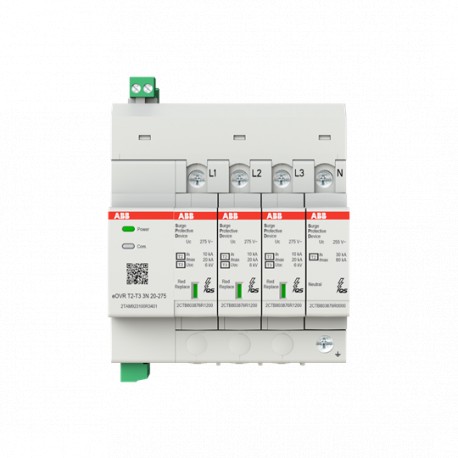

2TAM923100R3401 ABB Prot. envelope eOVRT2-T33N20-275

Code: 2TAM923100R3401

Manufacturer: ABB

Description:

Prot. envelope eOVRT2-T33N20-275
eOVR T2-T3 3N 20-275 Digital SPD for energy management via Modbus RTU SPD T2+3, 230/400V TT/TNS system

Categories:

  • Earthing, lightning and surge protection > Surge protection device for power supply systems
  • ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.277,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
ABB EcoSolutionsYes
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 45.1 %
ABB Site Meeting Group Waste To Landfill TargetNo non-hazardous waste is sent to a landfill
Improved Energy Efficiency for CustomersProcess Efficiency - Product improves/optimizes process
Process Efficiency - Product contribute to making customer’s operations more resilient and reliable
Extended Product LifetimeProduct Durability
Product Modularity
End Of Life Disassembling Instructions9AKK108470A3994
Environmental Product Declaration - EPD9AKK108470A1870
Technical
Type of Low Voltage Distribution SystemTT
TN-S
Suitable ForTo protect the systems against the transient overvoltage (lightning)
Nominal AC Voltage of the System (Uo)230 /400 V
Maximum Continuous Operating Voltage (Uc)(L-PE) 275 V
Temporary Overvoltage Test Value (UT)(L-N) 337 V
(N-PE) 1200 V
Rated Service Short-Circuit Breaking Capacity (Ics)100 kA
Discharge CurrentNominal (8 / 20 µs) 5 kA
I (max, 8 / 20 µs) 20 kA
Short Circuit Withstand Icc100 kA
Arrester ClassII
III
Number of Protected Poles4
Number of Poles3P+N
Position of Neutral TerminalsRight
Transmission StandardOptic
VersionPlug-in
Product TypeQS
Options ProvidedMonitoring : Surge event counter SPD end of life prediction Upstream back up status SPD status Ambient temperature Nominal voltage Surge amplitude Surge time Alarm : Front face blinking LED Leakage current Overvoltage Undervoltage Upstream back up status MOV end of life treshold SPD status
Preventive Maintenance FeatureNo
Status IndicatorYes
Fuse Size4 modular spacing
Electrical
Rated Voltage (Ur)230 V AC
Voltage Protection Level ( Up)(N-PE) 1.4 kV
(L-N) 1.4 kV
Material Compliance
RoHS Declaration9AKK108466A8539
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220927
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP20
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Dimensions
Width in Number of Modular Spacings5.5
Product Net Width98.5 mm
Product Net Height130 mm
Product Net Depth / Length65.3 mm
Product Net Weight0.694 kg
Engineering
EPLAN Data9AAF622779_EPLAN
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.779 kg
Certificates and Declarations
Declaration of Conformity - CE9AKK108466A8539
Installation
Instructions and Manuals9AKK108466A7634
Mounting TypeDIN-Rail
Popular Downloads
Mechanical Drawings9AKK108466A7395
9AKK108466A7402
External Classifications and Standards
ETIM 9EC000941 - Surge protection device for power supply systems
ETIM 10EC000941 - Surge protection device for power supply systems
eClassV11.0 : 27130805
Object Classification Code141DCC
StandardsIEC 61643-11 / GB/T 18802.1 / NB/T 10284 / EN 61000-6-2/EN 61000-6-3

ETIM for 2TAM923100R3401 Earthing, lightning and surge protection (EC000941)

Feature nameSystem configuration DC (EF009926)
Feature valueNo
Feature nameSystem configuration IT (EF009927)
Feature valueNo
Feature nameSystem configuration TN (EF009928)
Feature valueYes
Feature nameSystem configuration TN-C (EF009929)
Feature valueNo
Feature nameSystem configuration TN-C-S (EF009933)
Feature valueNo
Feature nameSystem configuration TN-S (EF009930)
Feature valueYes
Feature nameSystem configuration TT (EF009931)
Feature valueYes
Feature nameSystem configuration other (EF009932)
Feature valueNo
Feature nameNumber of conductors (without earthing) (EF001148)
Feature value4
Feature nameNominal discharge surge current (8/20) (EF004214)
Feature value5 kA
Feature nameMax. discharge surge current (8/20) (EF012274)
Feature value5 kA
Feature nameNominal voltage AC (EF004220)
Feature value230 V
Feature nameMax. continuous voltage AC (EF004198)
Feature value275 V
Feature nameVoltage protection level L-N (EF004236)
Feature value1.4 kV
Feature nameVoltage protection level N-PE (EF008796)
Feature value1.4 kV
Feature nameMax. overcurrent protection device, parallel connection (fuse) (EF015962)
Feature value125 A
Feature nameShort-circuit breaking capacity (Isccr) (EF012627)
Feature value100 kA
Feature nameIntegrated backup fuse (EF008797)
Feature valueNo
Feature nameLeakage-current free (EF016002)
Feature valueYes
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameConstruction size (EF002566)
Feature value4 modular spacing
Feature nameMax. conductor cross section solid (solid, stranded) (EF008827)
Feature value25 mm²
Feature nameMax. conductor cross section flexible (fine-strand) (EF008828)
Feature value25 mm²
Feature nameWith remote signalling contact (EF000422)
Feature valueNo
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameCategory type 2 (EF004230)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
