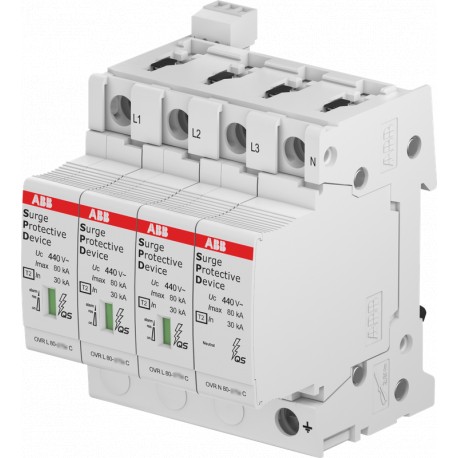

2CTB815708R3700 ABB Surge Protection OVRT23N80440SPTSQS
2CTB815708R3700
ABB
Surge Protection OVRT23N80440SPTSQS
OVR T2 3N 80-440s P TS QS Surge Protective Device
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A7418 |
| Technical | |
| Type of Low Voltage Distribution System | TT |
| TN-S | |
| Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Nominal AC Voltage of the System (Uo) | 400 / 690 V |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 440 V |
| Temporary Overvoltage Test Value (UT) | (L-N) 581 V |
| (N-PE) 1200 V | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA |
| I (max, 8 / 20 µs) 80 kA | |
| Impulse Current | I (imp, 10 / 350 µs) 6.25 kA |
| Short Circuit Withstand Icc | 100 kA |
| Arrester Class | II |
| Number of Protected Poles | 4 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 4P |
| Number of Conductors | 4 |
| Position of Neutral Terminals | Right |
| Transmission Standard | Optic |
| Version | Plug-in |
| Product Type | QS |
| Options Provided | Industry, commercial building |
| Auxiliary Circuit Load | Minimum 12Vdc - 10mA |
| Maximum 250Vac - 1A | |
| Preventive Maintenance Feature | Yes |
| Status Indicator | Yes |
| Fuse Size | 4 modular spacing |
| Cross-Section (Across) | Maximum Conductor Solid-Stranded 35 mm² |
| Maximum Conductor Flexible 25 mm² | |
| Electrical | |
| Rated Voltage (Ur) | 400 V AC |
| Voltage Protection Level ( Up) | 1.4 kV |
| (L-N) 1.8 kV | |
| (N-PE) 2 kV | |
| Material Compliance | |
| RoHS Declaration | 9AKK108466A4617 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230707 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20231212 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 5000 |
| Dimensions | |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 71.2 mm |
| Product Net Height | 95.8 mm |
| Product Net Depth / Length | 76.7 mm |
| Product Net Weight | 0.6 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 630 g |
| E-Number (Norway) | 1623916 |
| Certificates and Declarations | |
| CQC Certificate | 9AKK107680A1974 |
| Declaration | 2CTC432056G1701 |
| Declaration of Conformity - CE | 9AKK108466A4617 |
| Installation | |
| Instructions and Manuals | 2CTC432106M1701 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CTC432319D0201 |
| Mechanical Drawings | 2CTC800015F1200.pdf |
| 2CTC800015F1201.dxf | |
| 2CTC800015F1202.stp | |
| 2CTC800015F1203.igs | |
| External Classifications and Standards | |
| ETIM 9 | EC000941 - Surge protection device for power supply systems |
| ETIM 10 | EC000941 - Surge protection device for power supply systems |
| UNSPSC | 39121610 |
| eClass | V11.0 : 27130805 |
| Object Classification Code | 141DEC |
| Standards | IEC 61643-11 / EN 61643-11 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF PROTECTION & SAFETY EN .pdf | 25 Mbytes |
|
| 2CTB815708R3700 EN_2CTB815708R3700.pdf | 713 Kbytes |
|
