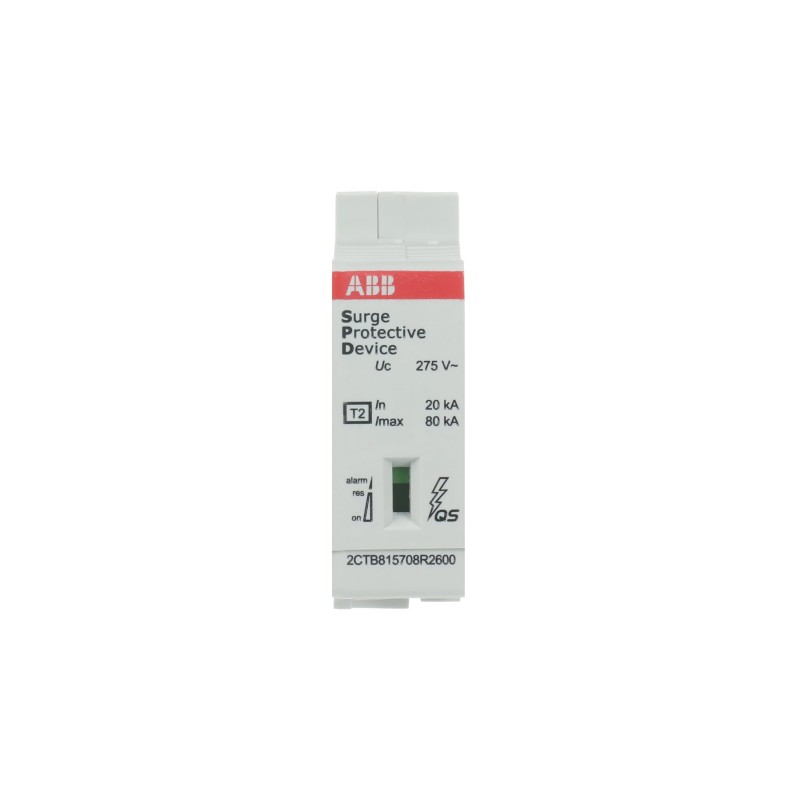

2CTB815708R2600 ABB OVR T2 80-275s C QS Surge Protection Device
2CTB815708R2600
ABB
OVR T2 80-275s C QS Surge Protection Device
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- OVR T2 80-275s C QS
- Product ID:
- 2CTB815708R2600
- EAN:
- 3660308525543
- Catalog Description:
- OVR T2 80-275s C QS Surge Protective Device
- Long Description:
- B752554
Technical
- Type of Low Voltage Distribution System:
- TT
TN-C
TN-S
- Nominal AC Voltage of the System (Uo):
- 230 / 400 V
- Number of Protected Poles:
- 1
- Arrester Class:
- II
- Product Main Type:
- T2
- Standards:
- IEC 61643-11 / EN 61643-11
- Product Type:
- QS
- Version:
- Plug-in
- Discharge Current:
- Nominal 20 kA
Maximum 80 kA
- Impulse Current:
- I (imp, 10 / 350 µs) 2 kA
- Maximum Continuous Operating Voltage (Uc):
- (L-PE) 275 V
(L-L) 275 V
(L-N) 275 V
(N-PE) - V
- Voltage Rating DC:
- 350 V
- Voltage Protection Level ( Up):
- (L-N) 1.4 kV
(N-PE) - kV
(L-PE) 1.4 kV
- Short Circuit Withstand Icc:
- 100 kA
- Temporary Overvoltage Test Value (UT):
- 337 V
- Power Loss:
- 28 mW
- Product Name:
- Surge Protective Device
- Suitable For:
- To protect the systems against the transient overvoltage (lightning)
Dimensions
- Product Net Width:
- 17.6mm
- Product Net Depth / Length:
- 67mm
- Product Net Height:
- 57mm
- Product Net Weight:
- 0.756kg
- Width in Number of Modular Spacings:
- 1
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 117 mm
- Package Level 1 Depth / Length:
- 25 mm
- Package Level 1 Height:
- 82 mm
- Package Level 1 Gross Weight:
- 90 g
- Package Level 1 EAN:
- 3660308525543
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85363090
Certificates and Declarations (Document Number)
- CQC Certificate:
- 9AKK107680A1974
- Declaration of Conformity - CE:
- 2CTC436004G1701
- Instructions and Manuals:
- 2CTC432106M1701
Popular Downloads
- Data Sheet, Technical Information:
- 0
- Instructions and Manuals:
- 2CTC432106M1701
Classifications
- Object Classification Code:
- 141DCC
- ETIM 4:
- EC000941 - Surge protection device for power supply systems
- ETIM 5:
- EC000941 - Surge protection device for power supply systems
- ETIM 6:
- EC000941 - Surge protection device for power supply systems
- ETIM 7:
- EC000941 - Surge protection device for power supply systems
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF PROTECTION & SAFETY EN .pdf | 25 Mbytes |
|
| 2CTB815708R2600 EN_2CTB815708R2600.pdf | 137 Kbytes |
|
