2CTB812122R1000 ABB Prot. About t. OVRPVT1-T212.5-1000CQS
2CTB812122R1000
ABB
Prot. About t. OVRPVT1-T212.5-1000CQS

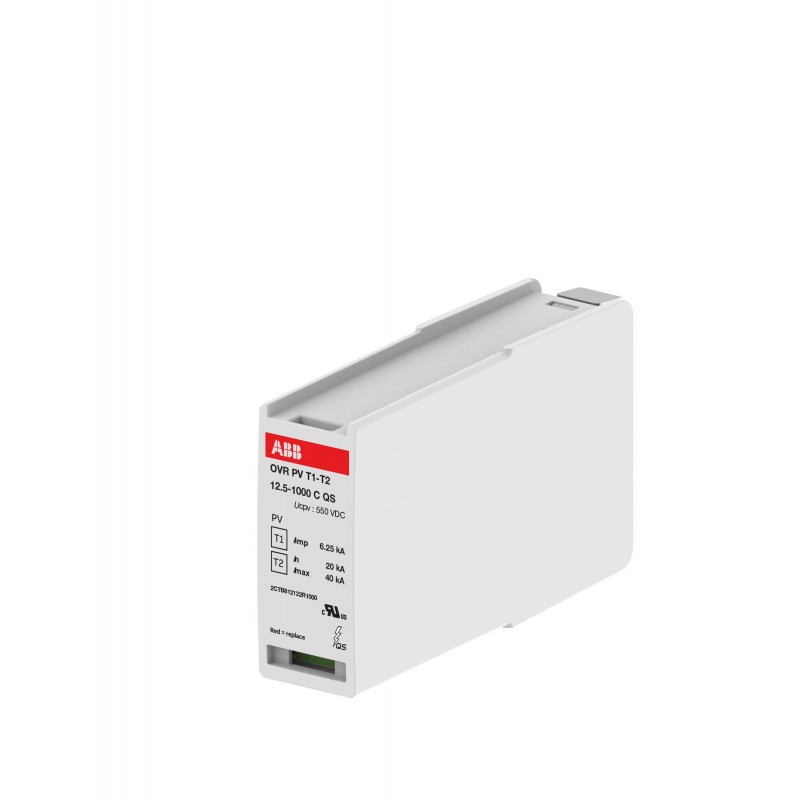

OVR PV T1-T2 12.5-1000 C QS Surge Protective Device
Earthing, lightning and surge protection > Surge protection device for power supply systems
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Voltage Rating DC | 1000 V |
| Maximum Power Point (MPP) Voltage | 1000 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 11 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA |
| I (max, 8 / 20 µs) 40 kA | |
| I (total, 10 / 350 µs) 12.5 kA | |
| Arrester Class | I |
| II | |
| Number of Protected Poles | 2 |
| Number of Conductors | 2 |
| Transmission Standard | Optic |
| Version | Plug-in |
| Product Type | QS |
| Options Provided | Solar |
| Preventive Maintenance Feature | No |
| Status Indicator | Yes |
| Number of Batteries | 0 |
| Fuse Size | 3 modular spacing |
| Cross-Section (Across) | Maximum Conductor Solid-Stranded 35 mm² |
| Maximum Conductor Flexible 25 mm² | |
| Electrical | |
| Rated Voltage (Ur) | 1000 V DC |
| Voltage Protection Level ( Up) | 3.8 kV |
| Material Compliance | |
| RoHS Declaration | 9AKK107991A6344 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230707 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20231212 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Degree of Protection | IP20 |
| Dimensions | |
| Product Net Width | 24 mm |
| Product Net Height | 45 mm |
| Product Net Depth / Length | 74 mm |
| Product Net Weight | 0.127 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.127 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A6344 |
| UL Certificate | 2CTC431021G1701 |
| Installation | |
| Instructions and Manuals | 2CTC431032M1701 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Mechanical Drawings | 2CTC812000F0300 |
| External Classifications and Standards | |
| ETIM 9 | EC000941 - Surge protection device for power supply systems |
| ETIM 10 | EC000941 - Surge protection device for power supply systems |
| UNSPSC | 39121610 |
| eClass | V11.0 : 27130805 |
| Object Classification Code | 141DCC |
| Standards | IEC 61 643-11 / EN 50539-11 / UL 1449 4th ed |
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | Yes |
| System configuration IT (EF009927) | No |
| System configuration TN (EF009928) | No |
| System configuration TN-C (EF009929) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration TN-S (EF009930) | No |
| System configuration TT (EF009931) | No |
| System configuration other (EF009932) | No |
| Number of conductors (without earthing) (EF001148) | 2 |
| Nominal discharge surge current (8/20) (EF004214) | 20 kA |
| Max. discharge surge current (8/20) (EF012274) | 20 kA |
| Nominal voltage DC (EF004221) | 1000 V |
| Max. continuous voltage DC (EF004777) | 1000 V |
| Max. PV-voltage (EF008795) | 1000 V |
| Voltage protection level (EF003525) | 3.8 kV |
| Max. overcurrent protection device, parallel connection (fuse) (EF015962) | 10 A |
| Short-circuit breaking capacity (Isccr) (EF012627) | 11 kA |
| Integrated short-circuit protection (EF016000) | No |
| Integrated backup fuse (EF008797) | No |
| Leakage-current free (EF016002) | No |
| Mounting method (EF000003) | Other |
| Construction size (EF002566) | 3 modular spacing |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
| With remote signalling contact (EF000422) | No |
| Signalling at the device (EF004241) | Optic |
| Category type 2 (EF004230) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
