View larger

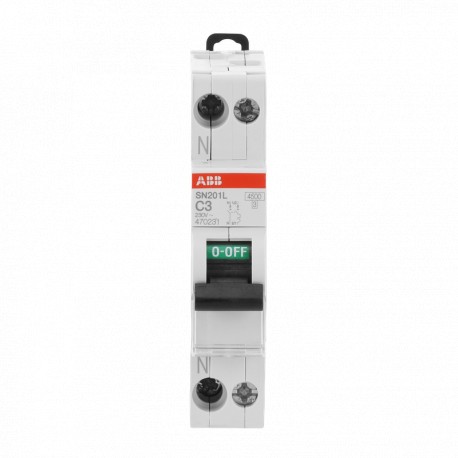

2CSS245102R0034 ABB Int.aut.SN201L-C3-L 1p+N 3A C 4.5kA(left)
2CSS245102R0034
ABB
Int.aut.SN201L-C3-L 1p+N 3A C 4.5kA(left)
Miniature circuit breaker - SN201L - N Left - 1P+N - 3 A - C - (230 V) 4.5 kA
Circuit breakers and fuses > Miniature circuit breaker (MCB)
Residential / Tertiary
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A1004 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 90.63 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Paper - 00 % |
| Recycled Cardboard - 79 % | |
| Extended Product Lifetime | Product Durability |
| End Of Life Disassembling Instructions | 9AKK108469A7476 |
| Environmental Product Declaration - EPD | 9AKK108469A9820 |
| Technical | |
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
| Primary Rated Impulse Withstand Voltage | 4 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V) 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 4.5 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | ON / OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Number of Modular Spacings per DIN Rail | 1 |
| Position of Neutral Terminals | Left |
| Tightening Torque | 1.2 N·m |
| Actuator Type | Toggle |
| Screw Terminal Type | Cage Terminal |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| Connecting Capacity | Flexible 1 … 10 mm² |
| Rigid 1 … 16 mm² | |
| Wire Stripping Length | 11 mm |
| Terminal Type | Screw Terminals |
| Electrical | |
| Tripping Characteristic | C |
| Rated Voltage (Ur) | 230 V AC |
| Rated Operational Voltage | acc. to IEC 60898-1 230 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 3 A |
| Rated Short-Circuit Capacity | (230 V) 4.5 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 1.16 W |
| Overvoltage Category | III |
| Design | |
| Housing Material | Insulation group II, RAL 7035 |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5572 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Environmental Conditions | 28 cycles |
| ;with 55 °C / 90-96 % | |
| ;and 25 °C / 95-100 % | |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g or 0.35mm 5 … 150 … 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 30g / 2 shocks / 13 ms |
| Dimensions | |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 69 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 17.6 mm |
| Product Net Weight | 110 g |
| Built-In Depth (t2) | 69 mm |
| Ordering | |
| Package Level 1 Units | box 6 piece |
| Package Level 1 Gross Weight | 0.684 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5572 |
| Installation | |
| Mounting Position | Any |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC400002D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
| Object Classification Code | F |
| Standards | IEC/EN 60898-1 |
| Feature Name | Feature Value |
|---|---|
| Built-in depth (EF000218) | 69 mm |
| Release characteristic (EF000889) | C |
| Number of poles (total) (EF008618) | 2 |
| Number of protected poles (EF005548) | 1 |
| Rated current (EF000227) | 3 A |
| Rated voltage (EF000228) | 230 V |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (EF009556) | 4.5 kA |
| Voltage type (EF000187) | AC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) | 6 kA |
| Frequency (EF000416) | 50 Hz |
| Current limiting class (EF002568) | 3 |
| Flush-mounted installation (EF007517) | No |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Over voltage category (EF002569) | 3 |
| Pollution degree (EF002570) | 2 |
| Additional equipment possible (EF008148) | Yes |
| Width in number of modular spacings (EF002950) | 1 |
| Degree of protection (IP) (EF005474) | IP20 |
| Ambient temperature during operating (EF007515) | -25 °C |
| Connectable conductor cross section multi-wired (EF007343) | 1 mm² |
| Connectable conductor cross section solid-core (EF007337) | 1 mm² |
| Explosion-proof (EF004663) | No |
