ABBIndustrial2CSS202998R0033 ABB S3C-MOD230 motor control

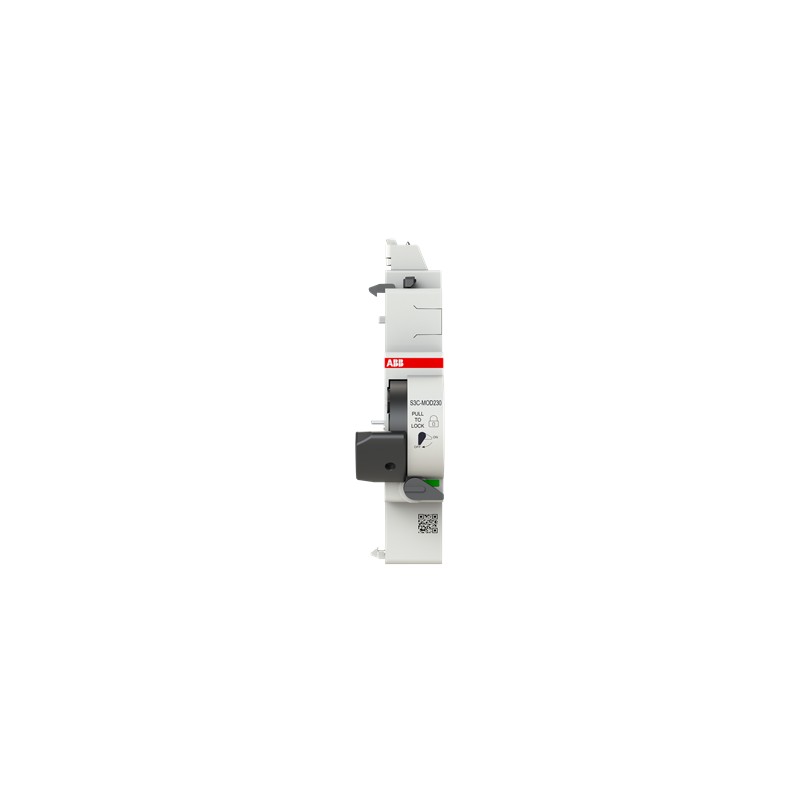

ABB 2CSS202998R0033 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSS202998R0033 ABB S3C-MOD230 motor control

Code: 2CSS202998R0033

Manufacturer: ABB

Description:

S3C-MOD230 motor control
S3C-MOD230 Motor Operating Device

Categories:

  • Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices
  • ABB > Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 237,06 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ABB EcoSolutions
Environmental Product Declaration - EPD9AKK108470A7409
Technical
Suitable ForS200
S300P
F200 up to 100A
F200 B Type up to 63A
DS201
SD200
Suitable for Product ClassAuxiliary switch/relay
Mechanical Endurance10000 cycle
Tightening Torque0.4 N·m
Number of Batteries0
Cable Size0.2 … 2.5 mm²
Connecting CapacityFlexible 0.2 ... 2.5 mm²
Wire Stripping Length5 mm
Terminal TypePlug-in Connection
Electrical
Rated Voltage (Ur)230 … 240 V
Rated Operational Voltage230 ... 240 V AC
Supply Voltage230 … 240 V AC V
Input Voltage TypeAC/DC
Power Consumption (@Pcons)<30 V·A
Overvoltage CategoryIII
Design
Number of Modules1
Material Compliance
RoHS Declaration9AKK108468A8802
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20231130
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -25 …+60 °C
Degree of ProtectionHousing IP40
Terminals IP20
Pollution Degree2
Resistance to Vibrations20 Cycles with Load 0.8 In: 1g 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-2725g 2 shocks 13 ms
Dimensions
Width in Number of Modular Spacings1
Product Net Width80 mm
Product Net Height104.15 mm
Product Net Depth / Length25.85 mm
Product Net Weight100 g
Dimension Diagram9AKK108469A6919
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.127 kg
Certificates and Declarations
Declaration of Conformity - CE9AKK108468A8802
Installation
Instructions and Manuals9AKK108468A3843
Popular Downloads
Data Sheet, Technical Information9AKK108469A4955
Electrical Drawings9AKK108469A6923
External Classifications and Standards
ETIM 9EC001286 - Auxiliary device for distribution board devices
ETIM 10EC001286 - Auxiliary device for distribution board devices

ETIM for 2CSS202998R0033 Modular devices for distribution board/surface mounting (EC001286)

Feature nameDevice fitting (EF007826)
Feature valueAuxiliary switch / relay
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameNumber of fault-signal switches (EF007613)
Feature value0
Feature nameRated voltage (EF000228)
Feature value240 V
Feature nameWith auto test for earth leakage function (EF008727)
Feature valueNo
