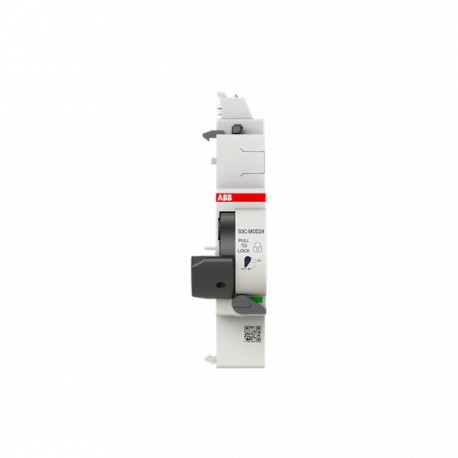

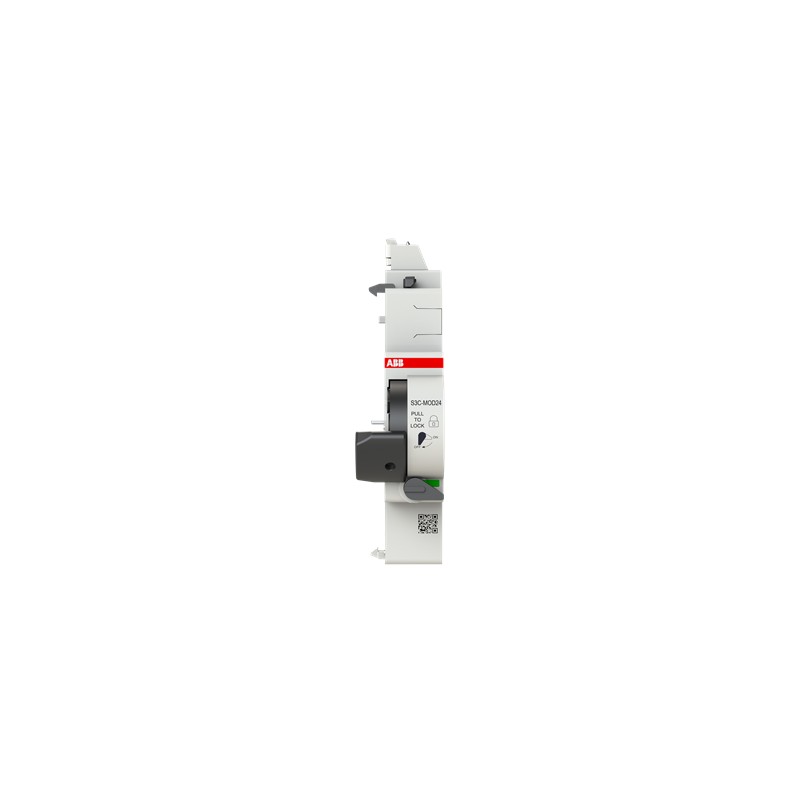

2CSS201998R0033 ABB Motor control S3C-MOD24
2CSS201998R0033
ABB
Motor control S3C-MOD24
S3C-MOD24 Motor Operating Device
Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108470A7409 |
| Technical | |
| Suitable For | S200 |
| S300P | |
| F200 up to 100A | |
| F200 B Type up to 63A | |
| DS201 | |
| SD200 | |
| Suitable for Product Class | Auxiliary switch/relay |
| Mechanical Endurance | 10000 cycle |
| Tightening Torque | 0.4 N·m |
| Number of Batteries | 0 |
| Cable Size | 0.2 … 2.5 mm² |
| Connecting Capacity | Flexible 0.2 ... 2.5 mm² |
| Wire Stripping Length | 5 mm |
| Terminal Type | Plug-in Connection |
| Electrical | |
| Rated Voltage (Ur) | 24 … 48 V |
| Rated Operational Voltage | 24 ... 48 V AC/DC |
| Supply Voltage | 24 … 48 V AC/DC V |
| Input Voltage Type | AC/DC |
| Power Consumption (@Pcons) | <28 V·A |
| Overvoltage Category | III |
| Design | |
| Number of Modules | 1 |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A8802 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20231130 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 …+60 °C |
| Degree of Protection | Housing IP40 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g 5 … 150 … 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Dimensions | |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 80 mm |
| Product Net Height | 104.15 mm |
| Product Net Depth / Length | 25.85 mm |
| Product Net Weight | 100 g |
| Dimension Diagram | 9AKK108469A6919 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.127 kg |
| E-Number (Sweden) | 2101503 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A8802 |
| Installation | |
| Instructions and Manuals | 9AKK108468A3843 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK108469A4955 |
| Electrical Drawings | 9AKK108469A6923 |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| Feature Name | Feature Value |
|---|---|
| Device fitting (EF007826) | Auxiliary switch / relay |
| Width in number of modular spacings (EF002950) | 1 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated voltage (EF000228) | 48 V |
| With auto test for earth leakage function (EF008727) | No |
