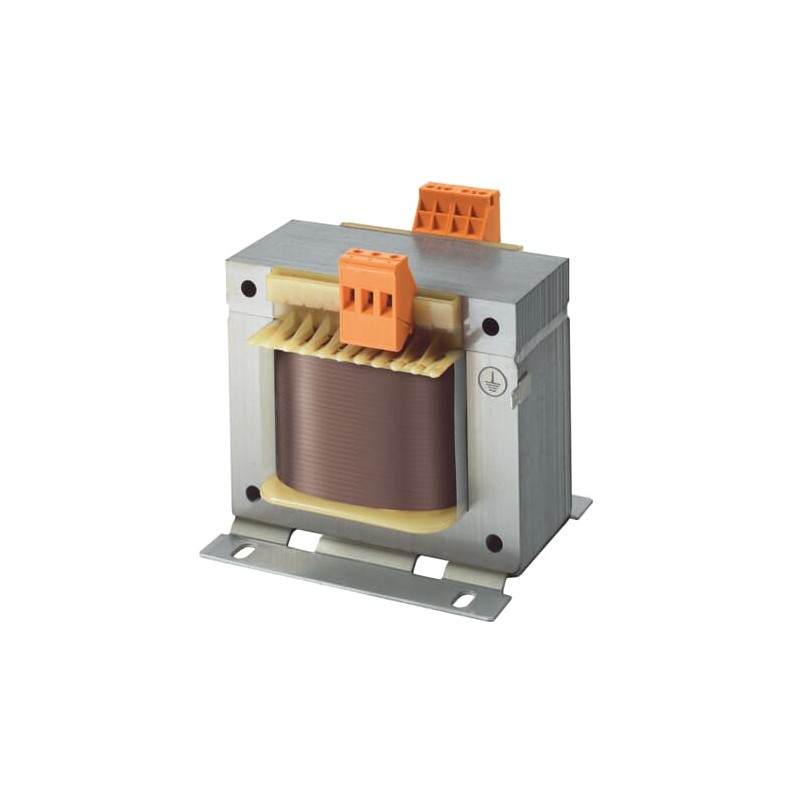

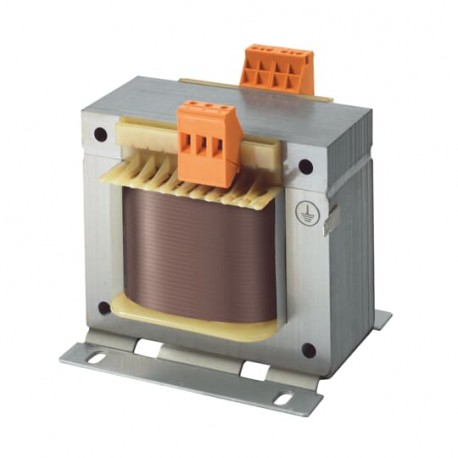

2CSM289703R0801 ABB TM-C 400/12-24 Single phase control transformer
Code: 2CSM289703R0801
Manufacturer: ABB
Description:
TM-C 400/12-24 Single phase control transformer
Categories:
- ABB > Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
- Extended Product Type:
- TM-C 400/12-24
- Product ID:
- 2CSM289703R0801
- EAN:
- 8012542897033
- Catalog Description:
- TM-C 400/12-24 Single phase control transformer
- Long Description:
- Transformer for supplying control circuits, for example commands, signalling, interlocks, etc.
Technical
- Standards:
- EN 61558-2-2 , UL506 , CSA C22-2-N66
- Rated Insulation Voltage (Ui):
- 3.5 kV
- Primary Voltage:
- 230-400 V AC
- Secondary Voltage:
- 12-24 V AC
- Rated Frequency (f):
- 50/60 Hz
- Power Loss:
- 41 W
- Power Supply:
- 400 V·A
- Insulation Class:
- F
- Fuse Type:
- aM
- Material of Conductor:
- Copper
- Cable Cross-Section:
- Primary: 6 mm²
Environmental
- Ambient Temperature:
- max. 40 °C
- Environmental Information:
- See RoHS Information
Dimensions
- Product Net Width:
- 123mm
- Product Net Height:
- 0.104m
- Product Net Depth / Length:
- 112mm
- Product Net Weight:
- 5.500kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 0.135 m
- Package Level 1 Height:
- 0.145 m
- Package Level 1 Depth / Length:
- 0.135 m
- Package Level 1 Gross Weight:
- 5.5 kg
- Package Level 1 EAN:
- 8012542897033
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85043190
- Country of Origin:
- Italy (IT)
Certificates and Declarations (Document Number)
- Certification Agency:
- ENEC, UR, CSA, RINA
- Declaration of Conformity - CE:
- 2CSC446006D2701
- Environmental Information:
- See RoHS Information
- Instructions and Manuals:
- No document needed
Popular Downloads
- Data Sheet, Technical Information:
- 2CSC446005B0202
- Instructions and Manuals:
- No document needed
- Wiring Diagram:
- 9AKK108466A7427
- Inrush Power Curve:
- 9AKK108467A2987
- Transformer Protection Selection Table:
- 9AKK108467A2982
- Power Draw According to Altitude:
- 9AKK108467A2983
- Power Draw According to Temperature:
- 9AKK108467A2985
- Admissible Overload:
- 9AKK108467A2986
Classifications
- ETIM 7:
- EC002486 - One-phase control transformer
- ETIM 8:
- EC002486 - One-phase control transformer
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Business
- CN8:
- 85043190
- eClass:
- V11.0 : 27031302
- Object Classification Code:
- T
