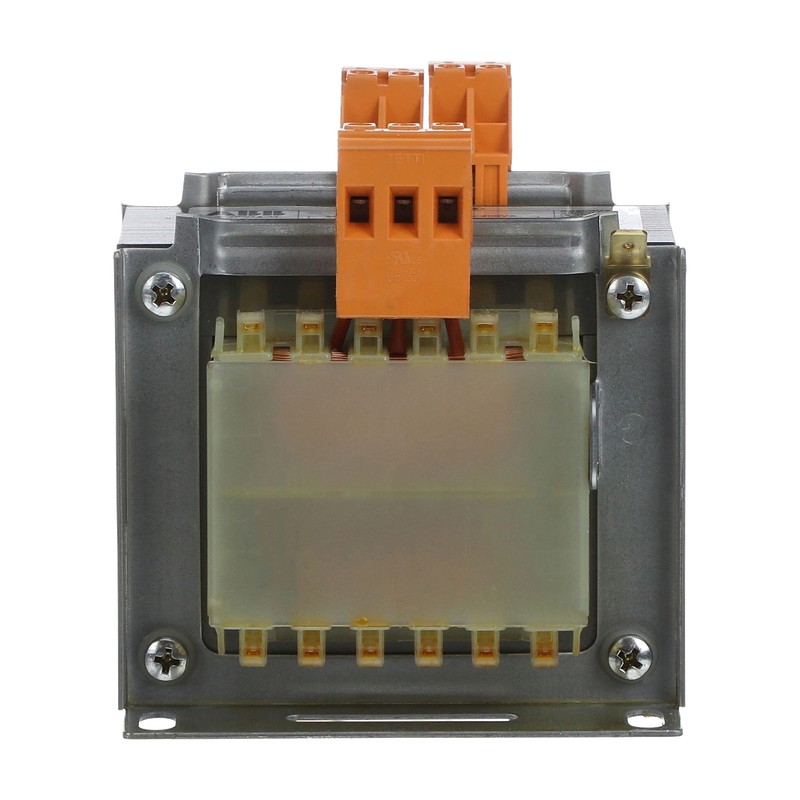

2CSM236823R0801 ABB TM-C 200/12-24 Single phase control transformer
Code: 2CSM236823R0801
Manufacturer: ABB
Description:
TM-C 200/12-24 Single phase control transformer
Categories:
- ABB > Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
| Technical | |
|---|---|
| Power Supply | 200 V·A |
| Insulation Class | F |
| Fuse Type | aM |
| Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² |
| Electrical | |
| Rated Insulation Voltage (Ui) | 3.5 kV |
| Primary Voltage | 230-400 V AC |
| Secondary Voltage | 12-24 V AC |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | Total 21 W |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5643 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20190722 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Product Net Width | 100 mm |
| Product Net Height | 115 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Weight | 2.85 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 3.2 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5643 |
| UL Certificate | 9AKK108467A9066 |
| Installation | |
| Wiring Diagram | 9AKK108466A7422 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC446005B0202 |
| Inrush Power Curve | 9AKK108467A2987 |
| Transformer Protection Selection Table | 9AKK108467A2982 |
| Power Draw According to Altitude | 9AKK108467A2983 |
| Power Draw According to Temperature | 9AKK108467A2985 |
| Admissible Overload | 9AKK108467A2986 |
| External Classifications and Standards | |
| ETIM 9 | EC002486 - One-phase control transformer |
| ETIM 10 | EC002486 - One-phase control transformer |
| UNSPSC | 39121026 |
| eClass | V11.0 : 27031302 |
| Object Classification Code | T |
| Standards | EN 61558-2-2 , UL506 , CSA C22-2-N66 |
| Certification Agency | ENEC |
| UR | |
| RINA | |
| Standardization Body | CSA |
