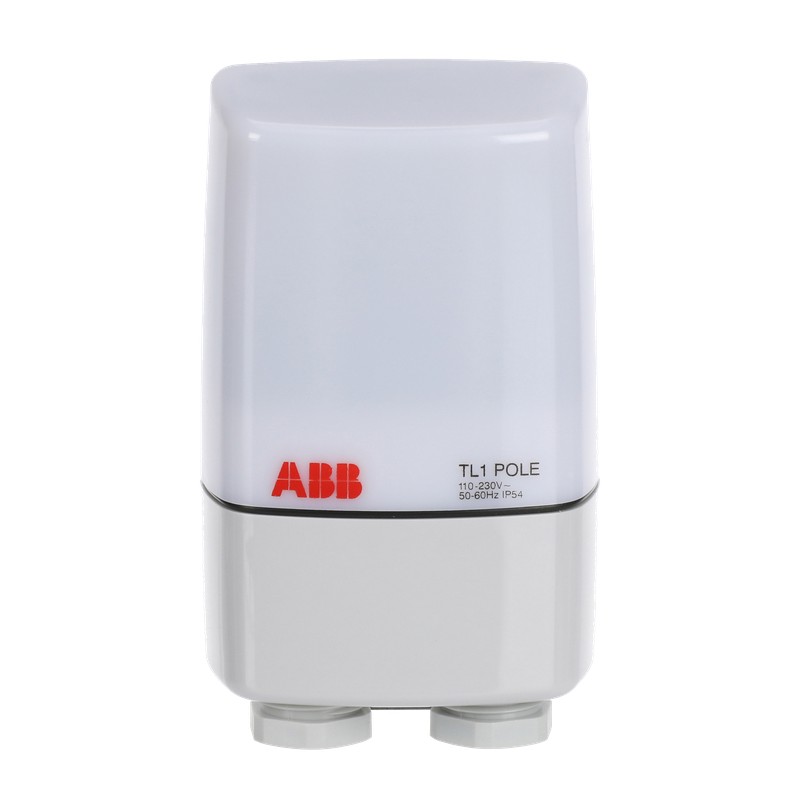

2CSM229911R1341 ABB Twilight Int.TL1 POLE
2CSM229911R1341
ABB
Twilight Int.TL1 POLE
TL1 POLE Twilight switch
Domestic switching devices > Twilight switch
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Function | Twilight |
| Power Supply | 110 ... 230 V AC |
| Number of Channels | 1 |
| Tightening Torque | 1.2 N·m |
| Delay Time (τ) | On 22.5 ... 27.5 second [unit of time] |
| Off 31.5 ... 38.5 second [unit of time] | |
| Illuminance | 2 … 200 lx |
| Contact Type | Normally Open (NO) |
| Lamp Type | LED |
| Meter Type | Analog |
| Screw Type | PZ1 |
| Lamp Color | Red / Green |
| Number of Batteries | 0 |
| Cable Length | 100 m |
| Connecting Capacity | Solid 6 mm² |
| Terminal Type | Screw Terminals |
| Electrical | |
| Supply Voltage | 110 ... 230 V AC |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | 1000 W |
| 300 W | |
| 300 W | |
| 100 W | |
| Power Consumption (@Pcons) | 0.25 W |
| 0.8 W | |
| Power Loss | Total 0.8 W |
| Design | |
| Color | White |
| Material Compliance | |
| RoHS Declaration | 2CSC441016D2703 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20200203 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Storage -50 ... 80 °C | |
| Degree of Protection | Housing IP20 |
| Dimensions | |
| Product Net Width | 35 mm |
| Product Net Height | 117 mm |
| Product Net Depth / Length | 70 mm |
| Product Net Weight | 135 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.168 kg |
| E-Number (Norway) | 1415690 |
| E-Number (Sweden) | 1301375 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC441016D2703 |
| Installation | |
| Instructions and Manuals | 9AKK107991A3020 |
| Wiring Diagram | 9AKK107992A8258 |
| Mounting Type | Wall Mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC000189 - Twilight switch |
| ETIM 10 | EC000189 - Twilight switch |
| UNSPSC | 39122214 |
| eClass | V11.0 : 27144011 |
| IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
| Object Classification Code | K |
| Standards | EN 60669-1EN 60662-2-1EN 60730-1 |
| Feature Name | Feature Value |
|---|---|
| Engaging brightness (EF003841) | 2 lx |
| Switching-off brightness (EF003825) | 2 lx |
| With automatic night switch-off (EF009564) | No |
| Swivelling (EF000301) | No |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | White |
| Transparent (EF006243) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| With DALI interface (EF009569) | No |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 117 mm |
| Depth (EF000049) | 70 mm |
| Compatible with Apple HomeKit (EF014925) | No |
| Compatible with Google Assistant (EF014926) | No |
| Compatible with Amazon Alexa (EF014927) | No |
| IFTTT support available (EF011072) | No |
