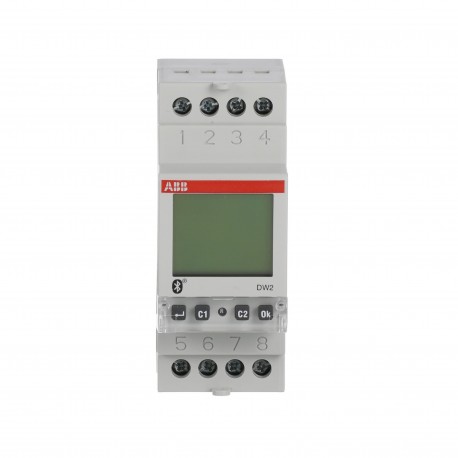

2CSM222521R1000 ABB DW2 Digital Programmer
2CSM222521R1000
ABB
DW2 Digital Programmer
DW2 Digital timer
Devices for distribution board-/surface mounting > Digital time switch for distribution board
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Function | Weekly |
| Power Supply | 230 V AC |
| Accuracy | ± 0.5sec/24h |
| Number of Channels | 2 |
| Maximum Number of Programs | 120 |
| Tightening Torque | 0.5 N·m |
| Minimum Switching Time | 1 minute [unit of time] |
| Contact Type | Change-Over (CO) |
| Meter Type | Digital |
| Options Provided | With running reserve |
| Number of Batteries | 1 |
| Battery Size | CR2032 |
| Battery Chemical Composition | Lithium Metal |
| Battery Integration Type | Replaceable Non-Rechargeable |
| Battery Life | 5 year |
| Battery Weight | 0.003 kg |
| Battery Lithium Amount | 0.07 g |
| Connecting Capacity | Solid 2.5 mm² |
| Communication Protocol | Bluetooth |
| Electrical | |
| Operational Voltage | 195.5 ... 253 V AC |
| Supply Voltage | 230 V AC |
| Rated Impulse Withstand Voltage (Uimp) | Maximum 4 kV |
| Maximum Switching Current | 16 A |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | 4000 W |
| Power Consumption (@Pcons) | 2 W |
| Power Loss | Total 2 W |
| Rated Switching Capacity | 2000 W |
| FluorescentLamps 600 V·A | |
| 2000 W | |
| 600 V·A | |
| 500 W | |
| Material Compliance | |
| RoHS Declaration | 2CSC441018D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Button Cell |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +50 °C |
| Storage -25 ... +70 °C | |
| Degree of Protection | Housing IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 87 mm |
| Product Net Weight | 152 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.233 kg |
| E-Number (Finland) | 2619407 |
| E-Number (Norway) | 1471251 |
| E-Number (Sweden) | 1330651 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC441018D2701 |
| Installation | |
| Instructions and Manuals | 2CSM441050D0201 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002305 - Digital time switch for distribution board |
| ETIM 10 | EC002305 - Digital time switch for distribution board |
| UNSPSC | 39122208 |
| Dangerous Goods UN Number | UN 3090 |
| eClass | V11.0 : 27200110 |
| IDEA Granular Category Code (IGCC) | 5188 >> Digital time switch for distribution board |
| Object Classification Code | K |
| Standards | EN 60730-2-7 |
| EN-301 489-17 | |
| EN-300 328 | |
| EN-62479 | |
| EN 50581 | |
| Feature Name | Feature Value |
|---|---|
| Number of channels (EF000259) | 2 |
| Text guidance in display (EF005341) | Yes |
| External programming (EF003846) | Yes |
| With memory card (EF009768) | No |
| 60 min program (EF002964) | No |
| 24 h program (EF002965) | Yes |
| Weekly program (EF001184) | Yes |
| Annual program (EF001185) | No |
| Holiday program (EF002968) | Yes |
| Impulse program (EF002970) | Yes |
| Cycle program (EF002971) | Yes |
| Astro program (EF000224) | No |
| Random program (EF002969) | Yes |
| Hour meter (EF004533) | Yes |
| Mains synchronous (EF002973) | Yes |
| Quartz controlled (EF002974) | Yes |
| Radio-controlled (EF000888) | No |
| Radio-controlled (DCF77) (EF003850) | No |
| GPS (global positioning system) (EF002753) | No |
| Contact type (EF001587) | Change-over contact (NO/NC) |
| Automatic switching summer/winter time (EF002977) | Yes |
| Suitable for manual operation (EF002978) | Yes |
| External push button input (EF007754) | Yes |
| Switching preselection (EF002979) | Yes |
| Potential free switch contact (EF003626) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Width in number of modular spacings (EF002950) | 2 |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 65 mm |
| Depth (EF000049) | 87 mm |
