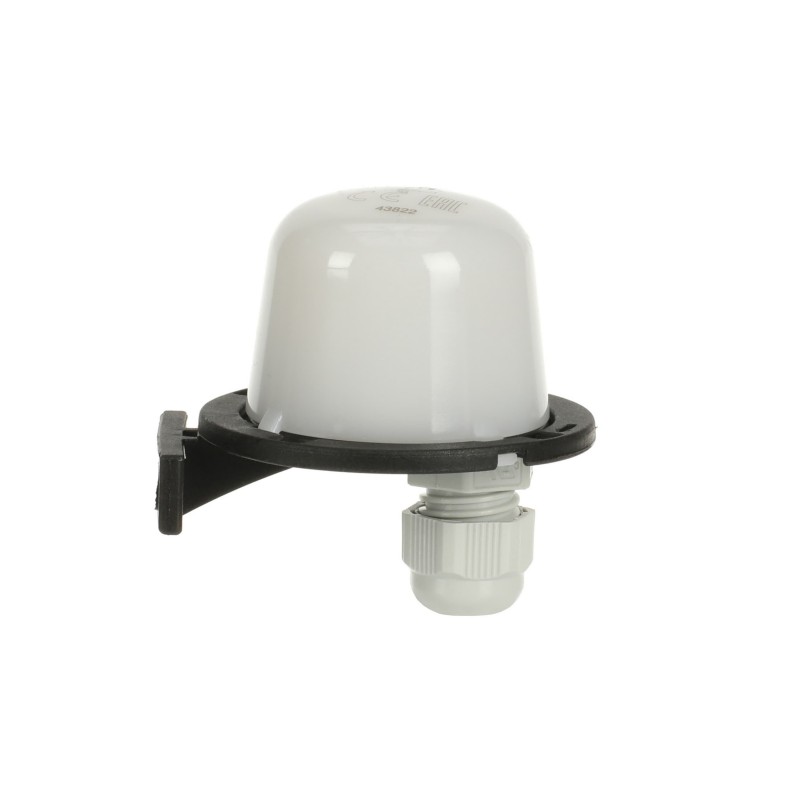

2CSM222481R1000 ABB DWS sensor inter. Twilight
2CSM222481R1000
ABB
DWS sensor inter. Twilight
DWSensor Digital timer
Devices for distribution board-/surface mounting > Digital time switch for distribution board
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Technical | |
|---|---|
| Function | Sensor |
| Delay Time (τ) | 1 second [unit of time] |
| :30 minute [unit of time] | |
| Meter Type | Digital |
| Cable Length | 50 m |
| Electrical | |
| Rated Frequency (f) | 50 ... 60 Hz |
| Material Compliance | |
| RoHS Declaration | 2CSC441018D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP65 |
| Dimensions | |
| Product Net Width | 48 mm |
| Product Net Height | 40 mm |
| Product Net Depth / Length | 48 mm |
| Product Net Weight | 21 g |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.047 kg |
| E-Number (Sweden) | 1301373 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC441018D2701 |
| Installation | |
| Instructions and Manuals | 2CSM441043D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002305 - Digital time switch for distribution board |
| ETIM 10 | EC002305 - Digital time switch for distribution board |
| UNSPSC | 39122208 |
| eClass | V11.0 : 27200110 |
| IDEA Granular Category Code (IGCC) | 5188 >> Digital time switch for distribution board |
| Object Classification Code | K |
| Standards | EN 60730-2-7 |
| EN-301 489-17 | |
| EN-300 328 | |
| EN-62479 | |
| EN 50581 | |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP65 |
| Width (EF000008) | 48 mm |
| Height (EF000040) | 40 mm |
| Depth (EF000049) | 48 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF PROTECTION & SAFETY EN .pdf | 25 Mbytes |
|
| 2CSM222481R1000 2CSM222481R1000 EN_2CSM222481R1000.pdf | 202 Kbytes |
|
