ABBOther modular devices2CSM222471R1000 ABB Int. schedule without reservation AD1NO-15m

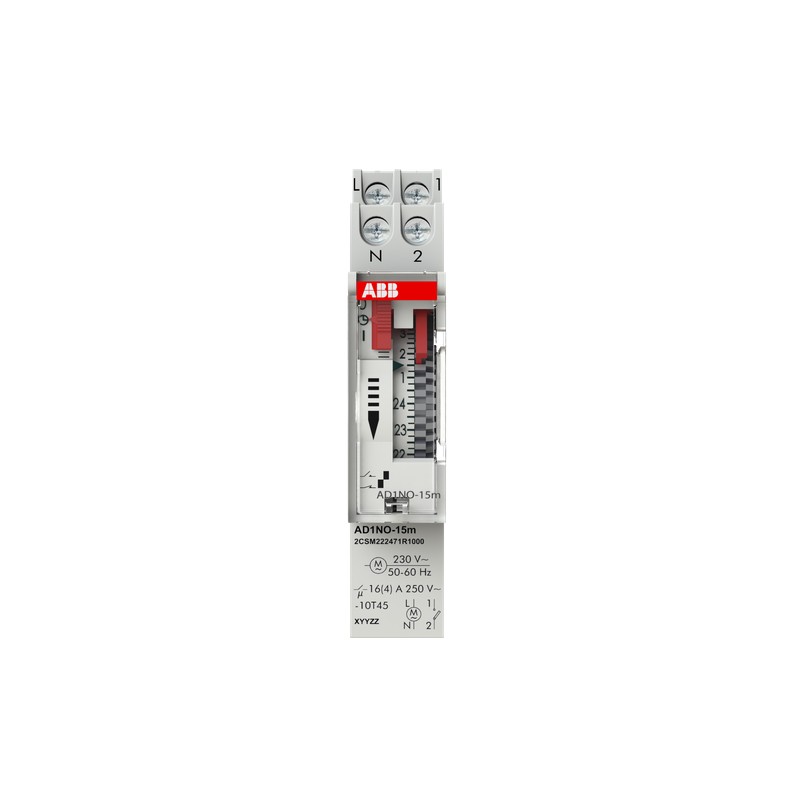

ABB 2CSM222471R1000 2CSM222471R1000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSM222471R1000 ABB Int. schedule without reservation AD1NO-15m

Reference: 2CSM222471R1000

Manufacturer: ABB

Description:

Int. schedule without reservation AD1NO-15m
AD1NO-15m Analog timer

Categories:

  • Devices for distribution board-/surface mounting > Analogous time switch for distribution board
  • ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 41,90 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
FunctionDaily
Maximum Load CapacityResistive Load 16 A
Inductive Load 4 A
Power Supply(-15%..+10%) 230 V AC
AccuracyOperating accuracy: ± 1 second/day at 23°C
Switching accuracy: ± 5 minutes
Number of Channels1
Tightening Torque0.3 N·m
Minimum Switching Time15 minute [unit of time]
Contact TypeNormally Open (NO)
Meter TypeElectromechanical
Number of Batteries0
Connecting CapacitySolid 4 mm²
Terminal TypeCaptive Screw
Electrical
Rated Operational Voltage230 V
Operational VoltageMaximum (Incl. Tolerance) 195 V AC
Maximum (Incl. Tolerance) ...253 V AC
Supply Voltage230 V
Rated Frequency (f)50 ... 60 Hz
Maximum Switching Power4000 W
Incandescent Lamp or Halogen High Voltage Lamps 2500 W
Fluorescent Lamp 1200 W
Low Voltage Halogen Lamp 2000 W
Low Consumption Lamp (CFL) 2500 W
LED 900 W
Power Consumption (@Pcons)0.5 W
Power LossTotal 0.5 W
Material Compliance
RoHS Declaration2CSC441017D2701
RoHS InformationFollowing EU Directive 2011/65/EU
RoHS Date20211115
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -10 ... 45 °C
Storage -20 ... 60 °C
Degree of ProtectionHousing IP20
Dimensions
Width in Number of Modular Spacings1
Product Net Width17.5 mm
Product Net Height66 mm
Product Net Depth / Length90 mm
Product Net Weight72 g
Dimension Diagram9AKK107992A8050
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.085 kg
E-Number (Sweden)1330661
Certificates and Declarations
Declaration of Conformity - CE2CSC441017D2701
Installation
Instructions and Manuals2CSM441039D5601
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information9AKK107991A8329
External Classifications and Standards
ETIM 9EC002304 - Analogous time switch for distribution board
ETIM 10EC002304 - Analogous time switch for distribution board
UNSPSC39122208
eClassV11.0 : 27200109
IDEA Granular Category Code (IGCC)5189 >> Electromechanical Time Switches
Object Classification CodeK
StandardsEN 60730-2-7

ETIM for 2CSM222471R1000 Modular devices for distribution board/surface mounting (EC002304)

Feature nameNumber of channels (EF000259)
Feature value1
Feature nameSupply voltage (EF004127)
Feature value230 V
Feature name60 min program (EF002964)
Feature valueNo
Feature name24 h program (EF002965)
Feature valueYes
Feature nameWeekly program (EF001184)
Feature valueNo
Feature nameAnnual program (EF001185)
Feature valueNo
Feature nameMains synchronous (EF002973)
Feature valueYes
Feature nameQuartz controlled (EF002974)
Feature valueNo
Feature nameAutomatic switching summer/winter time (EF002977)
Feature valueNo
Feature nameSuitable for manual operation (EF002978)
Feature valueYes
Feature nameSwitching preselection (EF002979)
Feature valueYes
Feature nameMax. switching power LED (EF015953)
Feature value900 W
Feature namePotential free switch contact (EF003626)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameWidth (EF000008)
Feature value17.5 mm
Feature nameHeight (EF000040)
Feature value66 mm
Feature nameDepth (EF000049)
Feature value90 mm
