ABBOther modular devices2CSM222461R1000 ABB Int. timetable with reservation AD1NO-R-15m

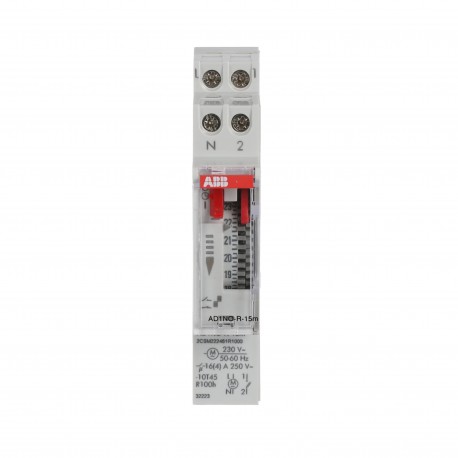

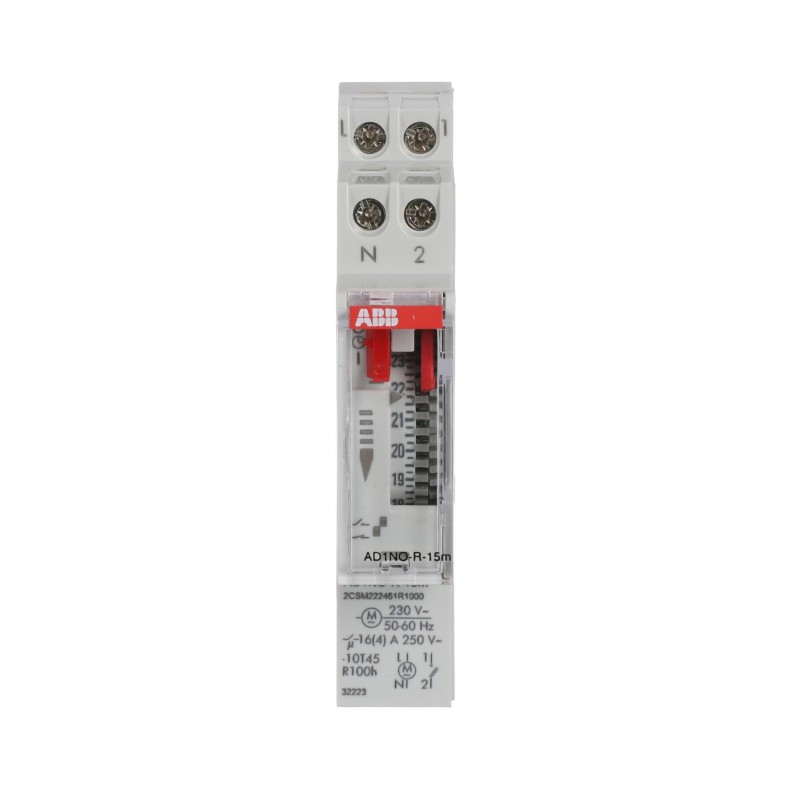

ABB 2CSM222461R1000 2CSM222461R1000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSM222461R1000 ABB Int. timetable with reservation AD1NO-R-15m

Reference: 2CSM222461R1000

Manufacturer: ABB

Description:

Int. timetable with reservation AD1NO-R-15m
Daily timer 1 ch - 15 min + reserve

Categories:

  • Devices for distribution board-/surface mounting > Analogous time switch for distribution board
  • ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 65,30 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

b'

General Information

Extended Product Type:
AD1NO-R-15m
Product ID:
2CSM222461R1000
EAN:
8012542224617
Catalog Description:
AD1NO-R-15m Analog  timer
Long Description:
Daily timer 1 ch - 15 min + reserve
\n

Ordering

EAN:
8012542224617
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85364900

Dimensions

Product Net Width:
17.5 mm
Product Net Height:
66 mm
Product Net Depth / Length:
90 mm
Product Net Weight:
0.075 kg

Container Information

Package Level 1 Units:
1 piece
Package Level 1 Width:
20 mm
Package Level 1 Height:
70 mm
Package Level 1 Depth / Length:
100 mm
Package Level 1 Gross Weight:
0.088 kg
Package Level 1 EAN:
8012542224617

Environmental

Ambient Air Temperature:
Operation -10 ... 45 °C

Additional Information

Accuracy:
Operating accuracy: ± 1 second/day at 23°C

Switching accuracy: ± 5 minutes
Degree of Protection:
IP20
Function:
Daily
Meter Type:
Electromechanical
Mounting Type:
DIN rail
Number of Channels:
1
Options Provided:
With running reserve
Power Consumption (@Pcons):
0.5 W
Power Loss:
0.5 W
Product Main Type:
AG Timer
Product Name:
Analog Time switch
Rated Frequency (f):
50 … 60 Hz
Rated Operational Voltage:
230 V
Supply Voltage:
230 V

Certificates and Declarations (Document Number)

Instructions and Manuals:\n2CSM441039D5601

Classifications

ETIM 6:
EC002304 - Analogous time switch for distribution board
ETIM 7:
EC002304 - Analogous time switch for distribution board
Object Classification Code:
K
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 2CSM222461R1000 Modular devices for distribution board/surface mounting (EC002304)

Feature nameNumber of channels (EF000259)
Feature value1
Feature nameSupply voltage (EF004127)
Feature value230 V
Feature name60 min program (EF002964)
Feature valueNo
Feature name24 h program (EF002965)
Feature valueYes
Feature nameWeekly program (EF001184)
Feature valueNo
Feature nameAnnual program (EF001185)
Feature valueNo
Feature nameMains synchronous (EF002973)
Feature valueYes
Feature nameQuartz controlled (EF002974)
Feature valueYes
Feature nameAutomatic switching summer/winter time (EF002977)
Feature valueNo
Feature nameSuitable for manual operation (EF002978)
Feature valueYes
Feature nameSwitching preselection (EF002979)
Feature valueYes
Feature nameMax. switching power LED (EF015953)
Feature value900 W
Feature namePotential free switch contact (EF003626)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
Feature nameWidth in number of modular spacings (EF002950)
Feature value1
Feature nameWidth (EF000008)
Feature value17.5 mm
Feature nameHeight (EF000040)
Feature value66 mm
Feature nameDepth (EF000049)
Feature value90 mm
