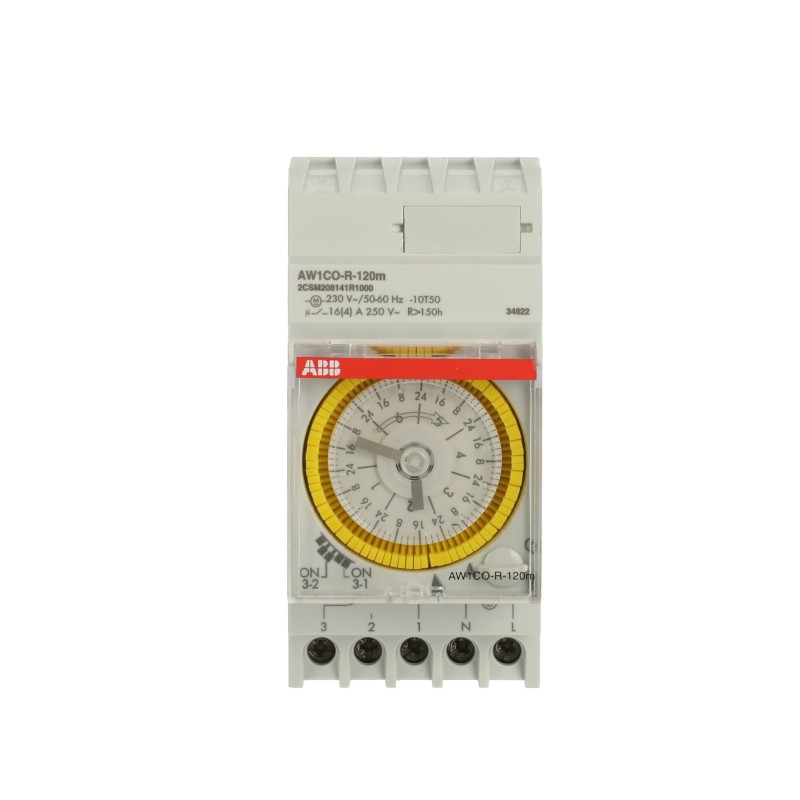

2CSM208141R1000 ABB Int. schedule with reservation AW1CO-R-120m
2CSM208141R1000
ABB
Int. schedule with reservation AW1CO-R-120m
AW1CO-R-120m Analog timer
Devices for distribution board-/surface mounting > Analogous time switch for distribution board
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Function | Weekly |
| Maximum Load Capacity | Resistive Load 16 A |
| Inductive Load 4 A | |
| Power Supply | (-15%..+10%) 230 V AC |
| Accuracy | Operating accuracy: ± 1 second/day at 23°C |
| Switching accuracy: ± 30 minutes | |
| Number of Channels | 1 |
| Tightening Torque | 0.5 N·m |
| Minimum Switching Time | 120 minute [unit of time] |
| Contact Type | Change-Over (CO) |
| Meter Type | Electromechanical |
| Options Provided | With running reserve |
| Number of Batteries | 1 |
| Battery Chemical Composition | Nickel-Metal Hydride |
| Battery Life | 150 hour |
| Battery Weight | 0.004 kg |
| Connecting Capacity | Solid 4 mm² |
| Terminal Type | Captive Screw |
| Electrical | |
| Rated Operational Voltage | 230 V |
| Operational Voltage | Maximum (Incl. Tolerance) 195 V AC |
| Maximum (Incl. Tolerance) ...253 V AC | |
| Supply Voltage | 230 V |
| Rated Frequency (f) | 50 ... 60 Hz |
| Maximum Switching Power | 4000 W |
| Incandescent Lamp or Halogen High Voltage Lamps 2500 W | |
| Fluorescent Lamp 1200 W | |
| Low Voltage Halogen Lamp 2000 W | |
| Low Consumption Lamp (CFL) 2500 W | |
| LED 900 W | |
| Power Consumption (@Pcons) | 0.5 W |
| Power Loss | Total 0.5 W |
| Material Compliance | |
| RoHS Declaration | 2CSC441017D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20211115 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Battery Type | Button Cell |
| Environmental | |
| Ambient Air Temperature | Operation -10 ... 50 °C |
| Storage -20 ... 70 °C | |
| Degree of Protection | Housing IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 2.5 |
| Product Net Width | 44 mm |
| Product Net Height | 66 mm |
| Product Net Depth / Length | 88 mm |
| Product Net Weight | 116 g |
| Dimension Diagram | 9AKK107992A8052 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.133 kg |
| E-Number (Sweden) | 1330668 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC441017D2701 |
| Installation | |
| Instructions and Manuals | 2CSM441041D5601 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC002304 - Analogous time switch for distribution board |
| ETIM 10 | EC002304 - Analogous time switch for distribution board |
| UNSPSC | 39122208 |
| eClass | V11.0 : 27200109 |
| IDEA Granular Category Code (IGCC) | 5189 >> Electromechanical Time Switches |
| Object Classification Code | K |
| Standards | EN 60730-2-7 |
| Feature Name | Feature Value |
|---|---|
| Number of channels (EF000259) | 1 |
| Supply voltage (EF004127) | 230 V |
| 60 min program (EF002964) | No |
| 24 h program (EF002965) | No |
| Weekly program (EF001184) | Yes |
| Annual program (EF001185) | No |
| Mains synchronous (EF002973) | Yes |
| Quartz controlled (EF002974) | Yes |
| Automatic switching summer/winter time (EF002977) | No |
| Suitable for manual operation (EF002978) | Yes |
| Switching preselection (EF002979) | Yes |
| Max. switching power LED (EF015953) | 900 W |
| Potential free switch contact (EF003626) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Width in number of modular spacings (EF002950) | 2.5 |
| Width (EF000008) | 44 mm |
| Height (EF000040) | 66 mm |
| Depth (EF000049) | 88 mm |
