View larger

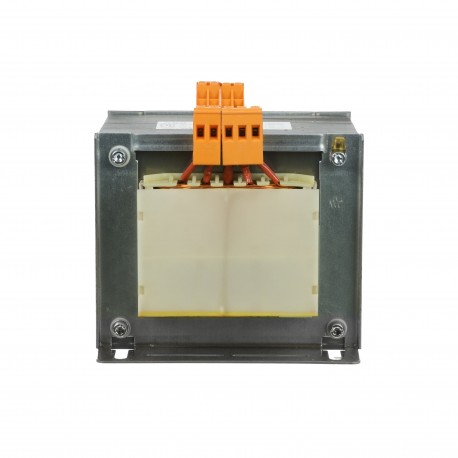

2CSM204413R0801 ABB TM-I 1000/115-230 P Single phase control and isolating transformer
2CSM204413R0801
ABB
TM-I 1000/115-230 P Single phase control and isolating transformer
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Power Supply | 1000 V·A |
| Insulation Class | F |
| Fuse Type | aM |
| Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² |
| Electrical | |
| Rated Insulation Voltage (Ui) | 4.8 kV |
| Primary Voltage | 230-400 ±15 V AC |
| Secondary Voltage | 115-230 V AC |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | 60 W |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5641 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20190722 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Product Net Width | 155 mm |
| Product Net Height | 166 mm |
| Product Net Depth / Length | 168 mm |
| Product Net Weight | 13.2 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 13.2 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5641 |
| UL Certificate | 9AKK108467A9066 |
| Installation | |
| Wiring Diagram | 9AKK108466A7450 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC446005B0202 |
| Inrush Power Curve | 9AKK108467A2987 |
| Transformer Protection Selection Table | 9AKK108467A2982 |
| Power Draw According to Altitude | 9AKK108467A2983 |
| Power Draw According to Temperature | 9AKK108467A2985 |
| Admissible Overload | 9AKK108467A2986 |
| External Classifications and Standards | |
| ETIM 9 | EC002486 - One-phase control transformer |
| ETIM 10 | EC002486 - One-phase control transformer |
| UNSPSC | 39121026 |
| eClass | V11.0 : 27031302 |
| Object Classification Code | T |
| Standards | EN 61558-2-2, EN 61558-2-4 , UL 506 , CSA C22-2-N66 |
| Certification Agency | ENEC |
| UR | |
| Standardization Body | CSA |
