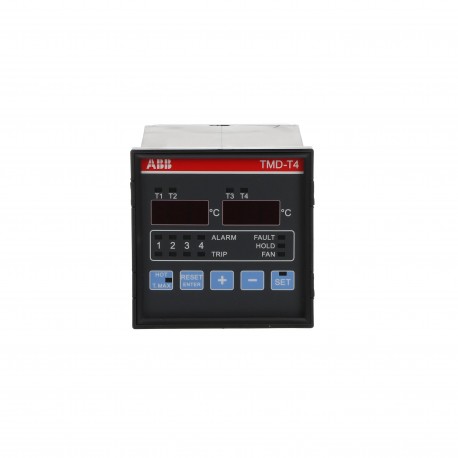

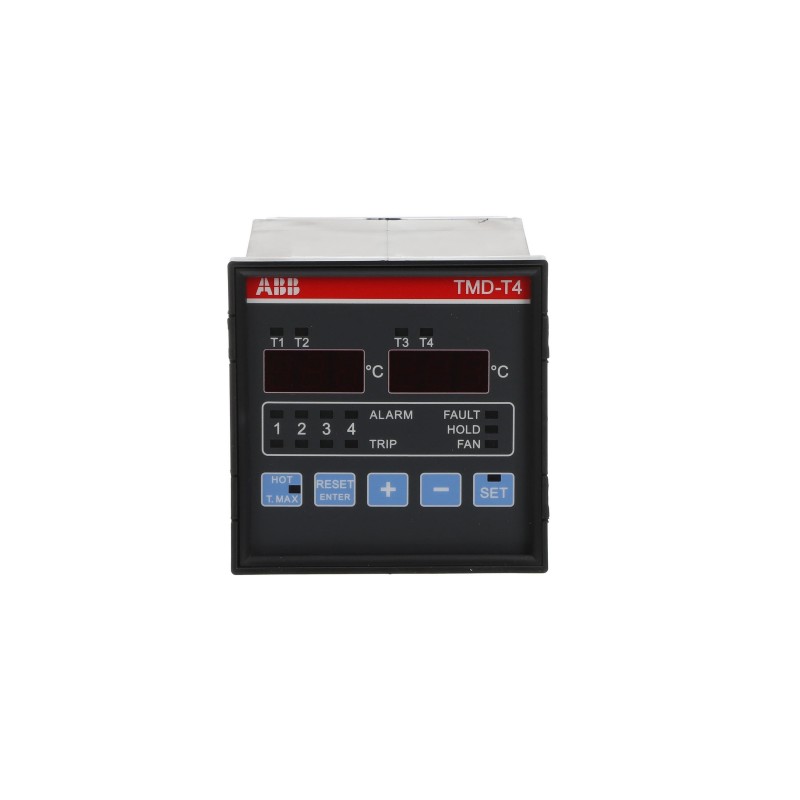

2CSG524000R2021 ABB TMD-T4/96 is front-panel temperature control unit with 4 input and RS 485
2CSG524000R2021
ABB
TMD-T4/96 is front-panel temperature control unit with 4 input and RS 485
TMD-T4/96 Temperature control unit
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Measuring Range | -25...80 °C |
| Meter Type | Digital |
| Type of Indicator | Digital |
| Communication | Modbus RTU |
| Electrical | |
| Rated Voltage (Ur) | 230 V AC/DC |
| Voltage Range | VACDCPDC 24 ... 240 V |
| Power Loss | Total 4 W |
| at Rated Operating Conditions per Pole 4 W | |
| Material Compliance | |
| RoHS Declaration | 9AKK106713A5637 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20190722 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230117 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 55 °C |
| Degree of Protection | IP52 |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Product Net Width | 96 mm |
| Product Net Height | 96 mm |
| Product Net Depth / Length | 0.096 m |
| Product Net Weight | 0.500 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.5 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5637 |
| EU Data Act Compliance Declaration | 9AKK108471A5130 |
| Installation | |
| Instructions and Manuals | 9AKK106930A5221 |
| Mounting Type | Front Panel |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0430 |
| External Classifications and Standards | |
| ETIM 9 | EC000601 - Measuring instrument for temperature and climate |
| ETIM 10 | EC000601 - Measuring instrument for temperature and climate |
| UNSPSC | 41111949 |
| eClass | V11.0 : 27201120 |
| Object Classification Code | P |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF PROTECTION & SAFETY EN .pdf | 25 Mbytes |
|
| 2CSG524000R2021 2CSG524000R2021 EN_pdf1_ABB2CSG524000R2021_EN.pdf | 320 Kbytes |
|
