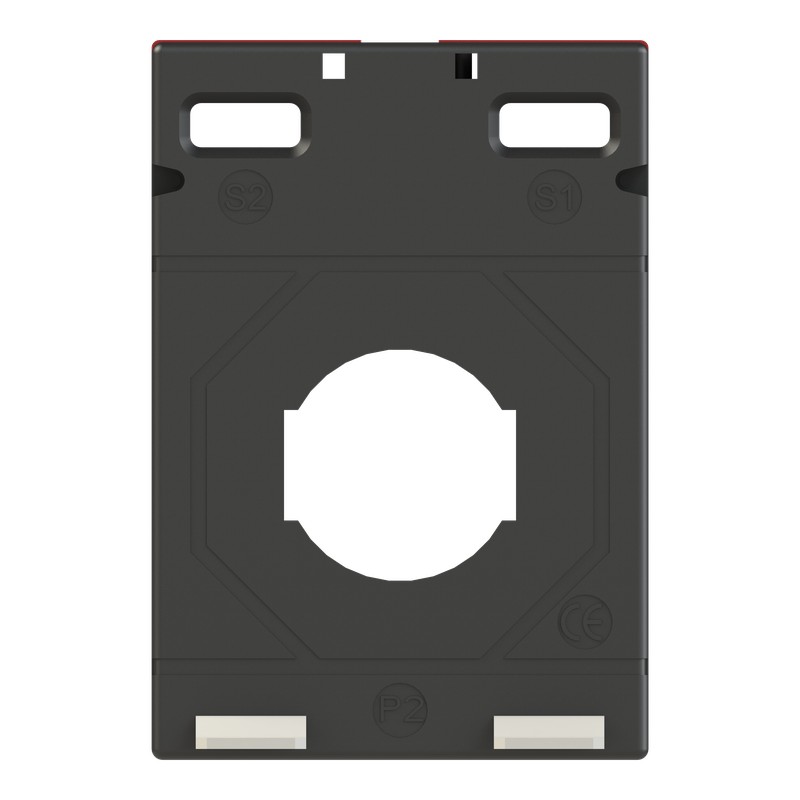

2CSG280295R1000 ABB Intens transformer. CT1M-2 300
2CSG280295R1000
ABB
Intens transformer. CT1M-2 300
CT1M-2 300 Current Transformer
Low-voltage industrial components > Current transformer
AER and Transformers
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Cable Use | Cable and Horizantal Bar |
| Rated Primary Current (Ipn) | 300 A |
| Rated Secondary Current (Isn) | 5 A |
| Current Limit Function | FS 5 |
| Accuracy | ±0.5% |
| Number of Inputs | Primary 1 |
| Cable Cross-Section | 21 mm |
| Rated Cross-Section | 20x10 mm |
| Electrical | |
| Rated Frequency (f) | 50 … 60 Hz |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A7636 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250213 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Height | 65 mm |
| Product Net Depth / Length | 40 mm |
| Product Net Weight | 0.31 kg |
| Dimension Diagram | 9AKK108470A9294 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.31 kg |
| E-Number (Finland) | 6719088 |
| Replacement Product ID (NEW) | 2CSG225825R1101 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108470A7636 |
| Installation | |
| Instructions and Manuals | 9AKK108470A3838 |
| Mounting Type | Through Primary |
| External Classifications and Standards | |
| ETIM 9 | EC002048 - Current transformer |
| ETIM 10 | EC002048 - Current transformer |
Datasheet - PDF
