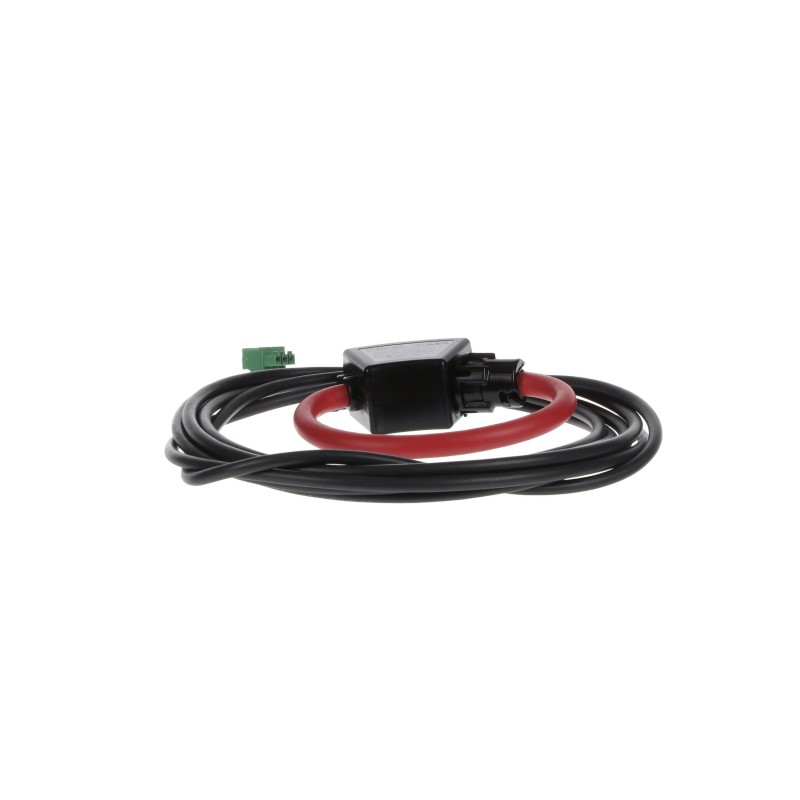

ABB 2CSG202160R1101 2CSG202160R1101 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSG202160R1101 ABB R4M-80

Reference: 2CSG202160R1101

Manufacturer: ABB

Description:

R4M-80

R4M-80 Rogowski coil

Categories:

Low-voltage industrial components > Current transformer
ABB > AER and Transformers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 141,42 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 10 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Technical
Current Rating	10000 A
Rated Primary Current (I_pn)	10000 A
Model Number	Single-phase current converter
Number of Inputs	Primary 1
Number of Batteries	0
Material Compliance
RoHS Declaration	9AKK107680A0175
RoHS Information	Following EU Directive 2011/65/EU
RoHS Date	20190722
REACH Declaration	9AKK108467A9482
REACH Information	True - contains substances > 0.1 mass percentage
REACH Date	20230117
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Business
Dimensions
Product Net Width	30 mm
Product Net Height	350 mm
Product Net Depth / Length	220 mm
Product Net Weight	150 g
Bore Diameter	80 mm
Ordering
Package Level 1 Units	box 1 piece
Package Level 1 Gross Weight	0.20 kg
E-Number (Finland)	6701097
E-Number (Norway)	8002563
Certificates and Declarations
Declaration of Conformity - CE	9AKK107680A0175
EU Data Act Compliance Declaration	Not applicable
Installation
Instructions and Manuals	2CSG445041D0201
External Classifications and Standards
ETIM 9	EC002048 - Current transformer
ETIM 10	EC002048 - Current transformer
eClass	V11.0 : 27210902
Object Classification Code	P

ETIM for 2CSG202160R1101 Low-voltage industrial controls and switchgear (EC002048)

Feature nameModel (EF000010)

Feature valueSingle-phase current converter

Feature nameRated primary current (EF007405)

Feature value10000 A

Feature nameAccuracy class (EF008842)

Feature value1

Feature nameCalibrated (EF008836)

Feature valueYes

Feature nameWith contact protection (EF008186)

Feature valueYes

Feature nameHeight opening (EF012757)

Feature value80 mm

Feature nameWidth opening (EF012758)

Feature value80 mm

Feature nameOpening diameter (EF005153)

Feature value80 mm

Feature nameSnap mounting (EF007462)

Feature valueYes

Feature nameWith copper rail (EF007380)

Feature valueNo

Feature nameNumber of primary inputs (EF006947)

Feature value1

DATASHEET - PDF

Title

Size

Type

2CSG202160R1101 2CSG202160R1101 EN_2CSG202160R1101.pdf

78 Kbytes

PDF ENERGY EFICIENCY EN

12 Mbytes
