ABBAER and Transformers2CSG202150R1101 ABB R4M-200

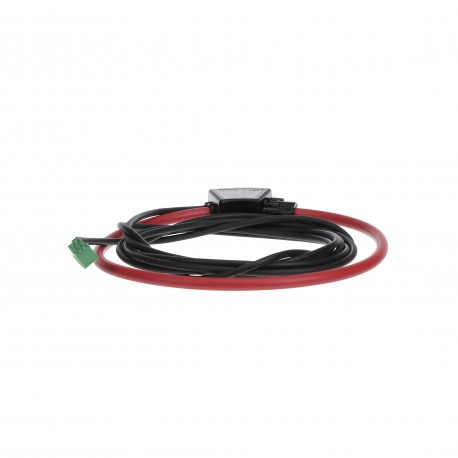

ABB 2CSG202150R1101 2CSG202150R1101 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CSG202150R1101 ABB R4M-200

Reference: 2CSG202150R1101

Manufacturer: ABB

Description:

R4M-200
Flexible current transformer based on Rogowski technology (200mm diameter), equipped with pre-wired removable terminals suitable for use with M4M 20 Rogowski and M4M 30 Rogowski

Categories:

  • Low-voltage industrial components > Current transformer
  • ABB > AER and Transformers

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 195,48 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

b'

General Information

Extended Product Type:
R4M-200
Product ID:
2CSG202150R1101
EAN:
8012542021506
Catalog Description:
R4M-200 Rogowski coil
Long Description:
Flexible current transformer based on Rogowski technology (200mm diameter), equipped with pre-wired removable terminals suitable for use with M4M 20 Rogowski and M4M 30 Rogowski
\n

Ordering

EAN:
8012542021506
Minimum Order Quantity:
1 piece
Customs Tariff Number:
90303100

Dimensions

Product Net Width:
0.03 mm
Product Net Height:
0.39 mm
Product Net Depth / Length:
0.25 mm
Product Net Weight:
0.25 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
0.03 mm
Package Level 1 Height:
0.39 mm
Package Level 1 Depth / Length:
0.25 mm
Package Level 1 Gross Weight:
0.30 kg
Package Level 1 EAN:
8012542021506

Environmental

RoHS Status:
Following EU Directive 2011/65/EU

Additional Information

Product Main Type:
R4M
Product Name:
Rogowski coil
RoHS Date:
43686

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\n9AKK107492A3557
Declaration of Conformity - CE:\n2CSC445028D2701
Instructions and Manuals:\n2CSG445041D0201
RoHS Information:\n2CSC445027D2701

Classifications

ETIM 7:
EC002048 - Current transformer
Object Classification Code:
P
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

ETIM for 2CSG202150R1101 Low-voltage industrial controls and switchgear (EC002048)

Feature nameModel (EF000010)
Feature valueSingle-phase current converter
Feature nameRated primary current (EF007405)
Feature value10000 A
Feature nameAccuracy class (EF008842)
Feature value1
Feature nameCalibrated (EF008836)
Feature valueYes
Feature nameWith contact protection (EF008186)
Feature valueYes
Feature nameHeight opening (EF012757)
Feature value200 mm
Feature nameWidth opening (EF012758)
Feature value200 mm
Feature nameOpening diameter (EF005153)
Feature value200 mm
Feature nameSnap mounting (EF007462)
Feature valueYes
Feature nameWith copper rail (EF007380)
Feature valueNo
Feature nameNumber of primary inputs (EF006947)
Feature value1
