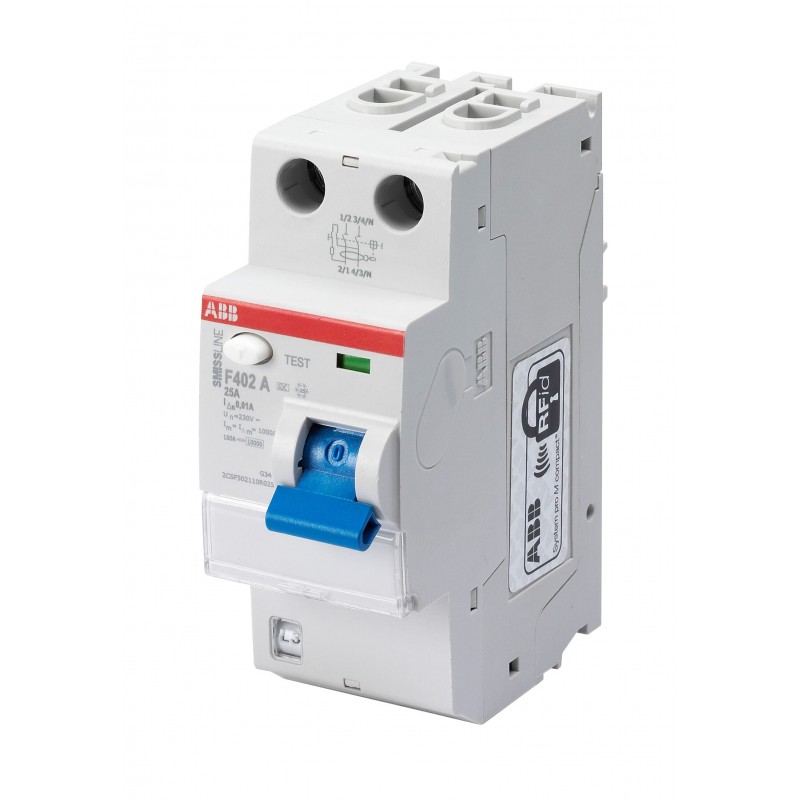

2CSF502110R1400 ABB SMISSLINE-I. Dif F402A40/0.03
2CSF502110R1400
ABB
SMISSLINE-I. Dif F402A40/0.03
Residual Current Circuit Breaker F400 - 2P - 30 mA - 40 A - Type A
Circuit breakers and fuses > Residual current circuit breaker (RCCB)
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108471A9687 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.51 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard - 65.59 % |
| Extended Product Lifetime | Product Durability |
| Offered with Takeback Services | Take Back for Recycling |
| End Of Life Disassembling Instructions | 9AKK108471A5442 |
| Environmental Product Declaration - EPD | 9AKK108471A3252 |
| Technical | |
| Type of Residual Current | Type A |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
| Maximum Surge Current | 0.25 kA |
| Leakage Current Type | A |
| Number of Poles | 2P |
| Operating Characteristic | Instantaneous |
| Accessories Available | Yes |
| Rated Cross-Section | 1 - Solid-Core 0...25 mm² |
| 4 - Multi-Wired 0...25 mm² | |
| Electrical | |
| Short-Circuit Current Rating (SCCR) | 0.03 A |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | 230 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 40 A |
| Rated Residual Current | 30 mA |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | Total 9.3 W |
| Design | |
| RAL Number | Similar to RAL 7035 |
| Material Compliance | |
| RoHS Declaration | 2CCC451037D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20210225 |
| REACH Declaration | 9AKK108467A9561 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230417 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Temperature | -25...55 °C |
| Ambient Air Temperature | Operation -25...55 °C |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Environmental Information | 9AKK108467A9561 |
| Dimensions | |
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 200 g |
| Built-In Depth (t2) | 69 mm |
| Dimension Diagram | 9AKK107492A6192 |
| Engineering | |
| EPLAN Data | 9AAC128470_EPLAN |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.225 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107991A9063 |
| Installation | |
| Instructions and Manuals | 2CSF423008D6402 |
| Mounting Type | Plug-In |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107492A6192 |
| External Classifications and Standards | |
| ETIM 9 | EC000003 - Residual current circuit breaker (RCCB) |
| ETIM 10 | EC000003 - Residual current circuit breaker (RCCB) |
| UNSPSC | 39121601 |
| eClass | V11.0 : 27142201 |
| Object Classification Code | Q |
| Standards | EN 61008 |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 2 |
| Rated voltage (EF000228) | 230 V |
| Rated current (EF000227) | 40 A |
| Rated fault current (EF002358) | 0.03 A |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Mounting method (EF000003) | Other |
| Leakage current type (EF002560) | A |
| Selective protection (EF002561) | No |
| Short-time delayed tripping (EF003604) | No |
| Short-circuit breaking capacity (Icw) (EF002562) | 1 kA |
| Surge current capacity (EF002564) | 0.25 kA |
| With interlocking device (EF007385) | Yes |
| Frequency (EF005455) | Other |
| Additional equipment possible (EF008148) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Width in number of modular spacings (EF002950) | 2 |
| Built-in depth (EF000218) | 69 mm |
| Ambient temperature during operating (EF007515) | -25 °C |
| Pollution degree (EF002570) | 2 |
| Connectable conductor cross section multi-wired (EF007343) | 0 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0 mm² |
| Explosion-proof (EF004663) | No |
