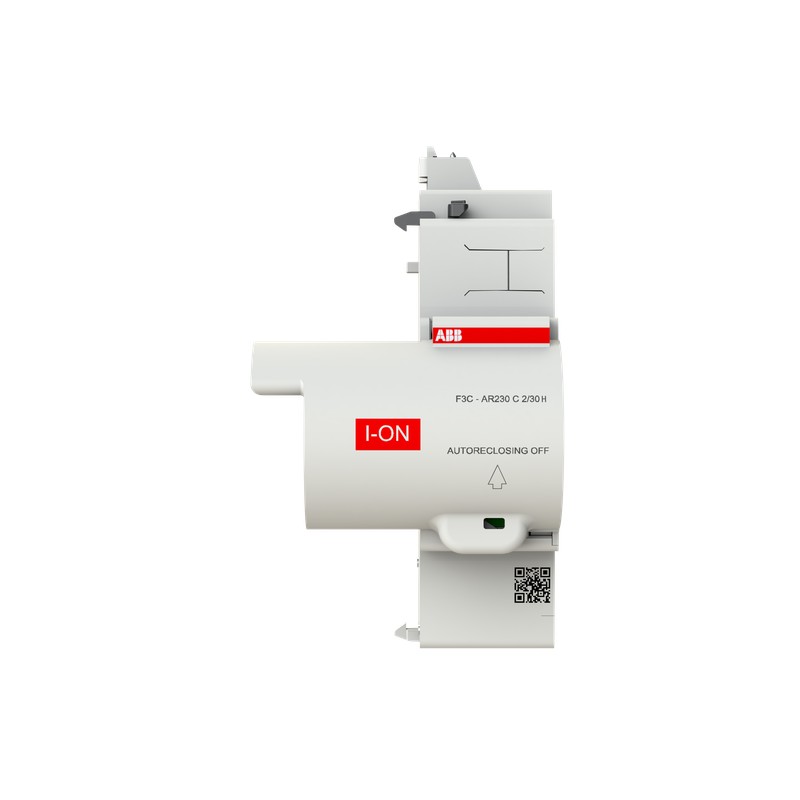

2CSF205998R0035 ABB Reconnect. leak check F3C-AR230C 2/30H
2CSF205998R0035
ABB
Reconnect. leak check F3C-AR230C 2/30H
Autoreclosing unit with system check F3C-AR
Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Mechanical Endurance | 5000 cycle |
| Tightening Torque | 0.4 N·m |
| Number of Batteries | 0 |
| Cable Size | 0.2 … 2.5 mm² |
| Wire Stripping Length | 0.005 mm |
| Terminal Type | Plug-in Connection |
| Electrical | |
| Supply Voltage | 230-240 V AC V |
| Power Consumption (@Pcons) | <20 W |
| Overvoltage Category | III |
| Design | |
| Number of Modules | 1.5 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 …+60 °C |
| Degree of Protection | Housing IP40 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g 5… 150 …5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 16 ms |
| Dimensions | |
| Product Net Width | 81.5 mm |
| Product Net Height | 104.15 mm |
| Product Net Depth / Length | 58.3 mm |
| Product Net Weight | 0.130 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.150 kg |
| Popular Downloads | |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| Standards | IEC63024 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF MINIATURE CIRCUIT BREAKERS EN .pdf | 37 Mbytes |
|
