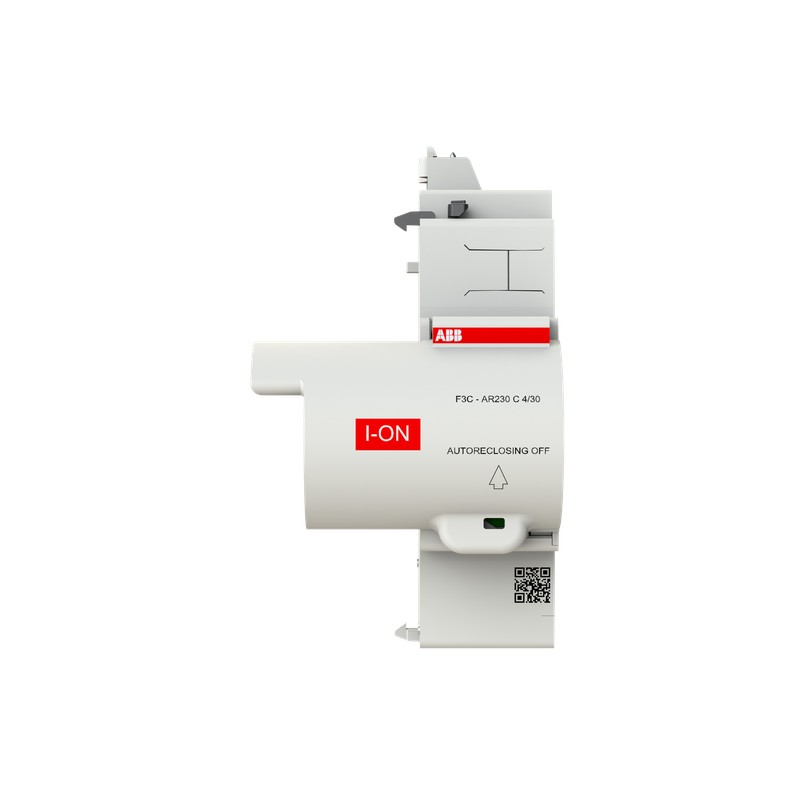

2CSF203998R0035 ABB Reconnect. leak check F3C-AR230 C 4/30
2CSF203998R0035
ABB
Reconnect. leak check F3C-AR230 C 4/30
Autoreclosing unit with system check F3C-AR
Devices for distribution board-/surface mounting > Auxiliary device for distribution board devices
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108470A7409 |
| Technical | |
| Suitable For | F204 30 mA up to 100A |
| F200 B Type up to 63A | |
| Suitable for Product Class | Auxiliary switch/relay |
| Mechanical Endurance | 5000 cycle |
| Tightening Torque | 0.4 N·m |
| Mounting Position of Accessories | Right |
| Number of Batteries | 0 |
| Cable Size | 0.2 … 2.5 mm² |
| Wire Stripping Length | 5 mm |
| Terminal Type | Plug-in Connection |
| Electrical | |
| Rated Voltage (Ur) | 230 … 240 V |
| Rated Operational Voltage | 230-240 (-15% +10%) V AC |
| Supply Voltage | 230-240 V AC V |
| Input Voltage Type | AC |
| Power Consumption (@Pcons) | <20 W |
| Overvoltage Category | III |
| Design | |
| Number of Modules | 1.5 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 …+60 °C |
| Degree of Protection | Housing IP40 |
| Terminals IP20 | |
| Pollution Degree | 2 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g 5 … 150 … 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Dimensions | |
| Width in Number of Modular Spacings | 1.5 |
| Product Net Width | 81.5 mm |
| Product Net Height | 104.15 mm |
| Product Net Depth / Length | 58.3 mm |
| Product Net Weight | 130 g |
| Dimension Diagram | 9AKK108470A2467 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.150 kg |
| Installation | |
| Instructions and Manuals | 9AKK108470A1492 |
| Mounting Position | Left |
| Popular Downloads | |
| Electrical Drawings | 9AKK108470A2370 |
| External Classifications and Standards | |
| ETIM 9 | EC001286 - Auxiliary device for distribution board devices |
| ETIM 10 | EC001286 - Auxiliary device for distribution board devices |
| Standards | IEC63024 |
