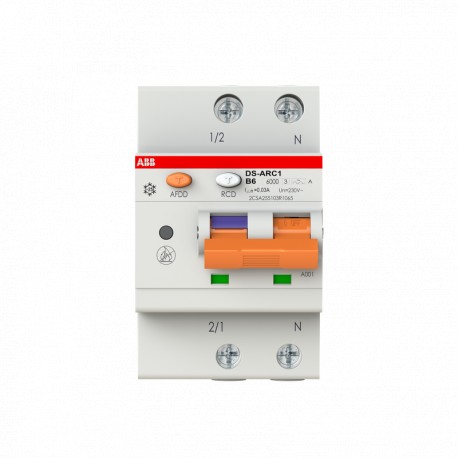

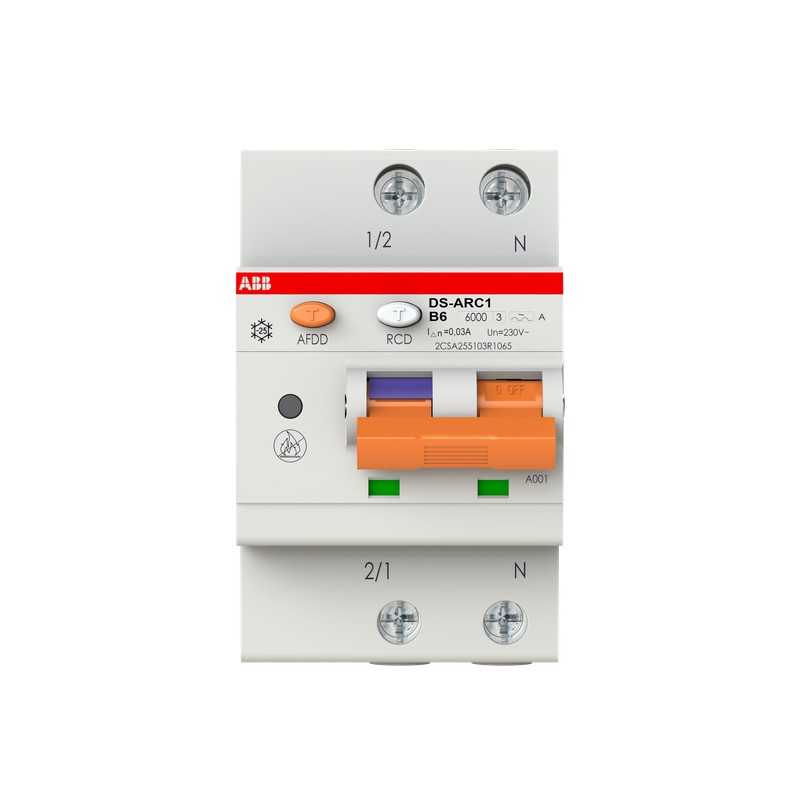

2CSA255103R1065 ABB DS-ARC1B6A30 Detect. Arch + Int. Comb.
2CSA255103R1065
ABB
DS-ARC1B6A30 Detect. Arch + Int. Comb.
DS-ARC1 B6 A30 Arc fault detection device integrated with RCBO
Circuit breakers and fuses > Earth leakage circuit breaker with auxiliary device
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108470A1707 |
| Technical | |
| Type of Residual Current | Type A |
| Test Voltage (Ut) | 170 … 264 V |
| Dielectric Test Voltage | 2.5 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 7.5 kA |
| Rated Residual Breaking Capacity (IΔm) | 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 6 kA |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 10000 cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Number of Modular Spacings per DIN Rail | 3 |
| Fault Indication | Blue Flag on Toggle |
| Operating Characteristic | Instantaneous |
| Position of Neutral Terminals | Right |
| Tightening Torque | 2.8 N·m |
| Accessory Type | Auxiliary contact |
| Auxiliary/Signal contact | |
| Shunt trip | |
| Undervoltage release | |
| Overvoltage release | |
| Bottom fitting auxiliary contact | |
| Actuator Type | Toggle -Insulation group II, Orange RAL 2004, sealable in ON-OFF-positions |
| Housing Type | Insulation group I, RAL 7035 |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Accessories Available | Yes |
| Mounting Position of Accessories | Right |
| Number of Batteries | 0 |
| Connecting Capacity | Busbar 10 mm² |
| Rigid 1…25 mm² | |
| Flexible 1…16 mm² | |
| Wire Stripping Length | 12 mm |
| Terminal Type | Screw Terminals |
| Electrical | |
| Tripping Characteristic | B |
| Rated Operational Voltage | 230...240 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 6 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | 2.5 W |
| Overvoltage Category | III |
| Design | |
| Number of Modules | 3 |
| Material Compliance | |
| RoHS Declaration | 9AKK107046A6530 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20180903 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 55 °C |
| Storage -40 ... 70 °C | |
| Reference Ambient Air Temperature | 30 °C |
| Degree of Protection | Terminals IP20 |
| Housing IP40 | |
| Pollution Degree | 2 |
| Environmental Conditions | 28 cycles |
| with 55 °C / 90-96 % | |
| and 25 °C / 95-100 % | |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g or 0.2mm 5 … 150 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 30g 2 shocks 13 ms |
| Dimensions | |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 52.5 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 240 g |
| Built-In Depth (t2) | 69 mm |
| Dimension Diagram | 9AKK107046A6174 |
| Engineering | |
| EPLAN Data | 9AAC190691_EPLAN |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.270 kg |
| E-Number (Finland) | 3211079 |
| E-Number (Norway) | 1683254 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK107046A6529 |
| IMQ Certificate | 9AKK107046A6176 |
| KC Certificate | 9AKK108466A5926 |
| VDE Certificate | 9AKK107046A6538 |
| Installation | |
| Instructions and Manuals | 9AKK107046A6173 |
| 9AKK106930A8986 | |
| Mounting Type | DIN-Rail |
| Mounting Position | Any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A7200 |
| Mechanical Drawings | 9AKK107046A6174 |
| 9AKK107046A6175 | |
| External Classifications and Standards | |
| ETIM 9 | EC002695 - Earth leakage circuit breaker with auxiliary device |
| ETIM 10 | EC002695 - Earth leakage circuit breaker with auxiliary device |
| eClass | V11.0 : 27142213 |
| Object Classification Code | F |
| Standards | IEC/EN 62606 |
| IEC/EN 61009-1 | |
| IEC/EN 61009-2-1 | |
