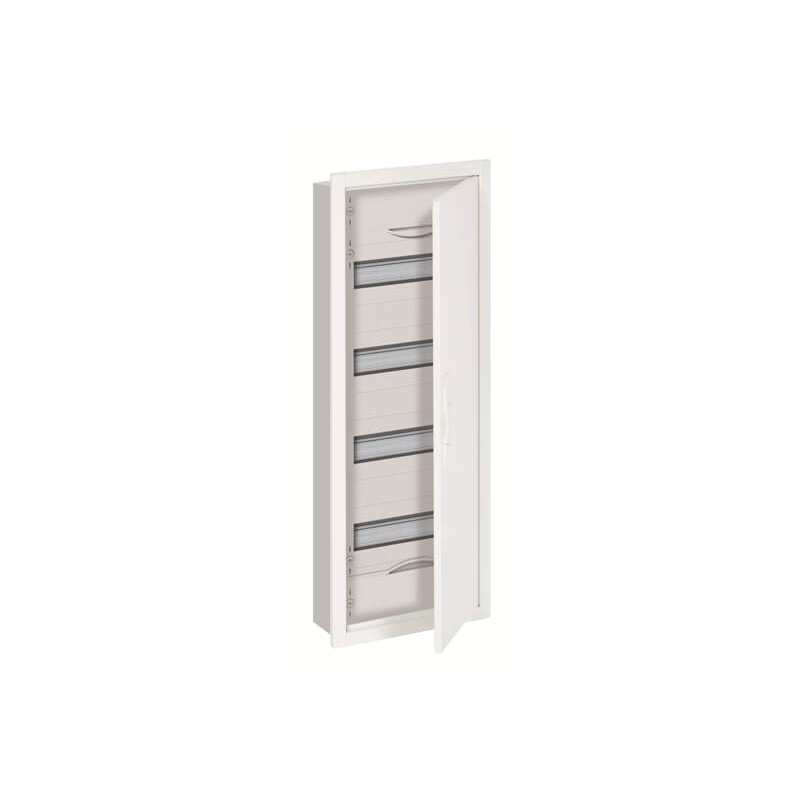

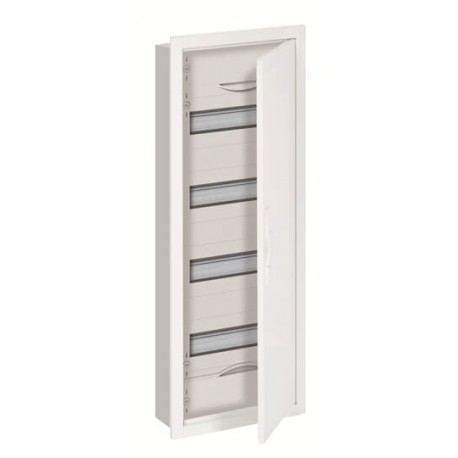

2CPX071711R9999 ABB U51R4 Arm.empot.48mód. (150 mm) pta. met.
2CPX071711R9999
ABB
U51R4 Arm.empot.48mód. (150 mm) pta. met.
U51R4 Dist. Board 4R w.door
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲- Extended Product Type:
- U51R4
- Product ID:
- 2CPX071711R9999
- EAN:
- 4011617717119
- Catalog Description:
- U51R4 Dist. Board 4R w.door
- Long Description:
- compact distribution boards, series U, partly assembled cabinet, for the internal use, with closed doorframe and door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP31, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 130 degree, door hinge right or left, cable entry on top via nippel flange included, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 834 x 310 x 120, Shutter frame dimensions in mm (H x W x D): 844 x 354 x 27, Ratchet unit 5 GU, panel width 1, 4-rows, Space units 48, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable
Ordering
- EAN:
- 4011617717119
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85381000
Dimensions
- Product Net Width:
- 310mm
- Product Net Height:
- 834mm
- Product Net Depth / Length:
- 120mm
- Product Net Weight:
- 11.778kg
Container Information
- Package Level 1 Units:
- pack 1 piece
- Package Level 1 Width:
- 380.000 mm
- Package Level 1 Height:
- 870.000 mm
- Package Level 1 Depth / Length:
- 165.000 mm
- Package Level 1 Gross Weight:
- 12.34 kg
- Package Level 1 EAN:
- 4011617717119
- Package Level 2 Units:
- pallet (lift) 15 piece
- Package Level 2 Width:
- 800.000 mm
- Package Level 2 Height:
- 1520.000 mm
- Package Level 2 Depth / Length:
- 1200.000 mm
- Package Level 2 Gross Weight:
- 196.67 kg
Additional Information
- Color:
- Traffic white
- Cover Plate Type:
- Door
- Degree of Protection:
- IP31
- Design:
- Wall cabinet flush-mount
- DIN Place Units:
- 48
- Enclosure Type:
- compact distribution boards
- Field Width:
- 1
- Housing Material:
- Steel
- Interior Depth:
- 120 mm
- Meter Boards:
- 0
- Mounting Position:
- Wall cabinet flush-mount
- Mounting Type:
- Wall cabinet flush-mount
- Niche Depth:
- 120 mm
- Niche Height:
- 850 mm
- Niche Width:
- 325 mm
- Number of Rows:
- 4
- Power Loss:
- Δt = 20K 28.4 W
Δt = 25K 37.4 W
Δt = 30K 46.9 W
- Product Main Type:
- U
- Product Name:
- U51R4 Dist. Board 4R w.door
- Protection Class:
- Isolated
- Rated Current (In):
- 125 A
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 2CPC000001C0101
2CPC000002C0101
2CPC000031C0101
2CPC000187C0101
2CPC000188C0101
- Declaration of Conformity - CE:
- No declaration needed
- Environmental Information:
- 2CPC100001X0201
- Instructions and Manuals:
- 2CPC100502M5601
2CPC121464M5601
2CPC130119M5601
Classifications
- ETIM 4:
- EC000214 - Small distribution board
- ETIM 5:
- EC000214 - Small distribution board
- ETIM 6:
- EC000214 - Small distribution board
- ETIM 7:
- EC000214 - Small distribution board
- Object Classification Code:
- U
- WEEE Category:
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 2CPX071711R9999 2CPX071711R9999 EN_2CPX071711R9999.pdf | 204 Kbytes |
|
