> ABB>Boxes and cabinets>2CPX071707R9999 ABB U32R2 Arm.empot. 48mód. (150mm) pta. met.
Previous Product Next Product

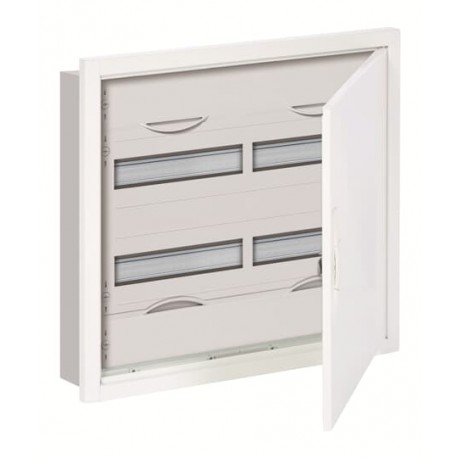

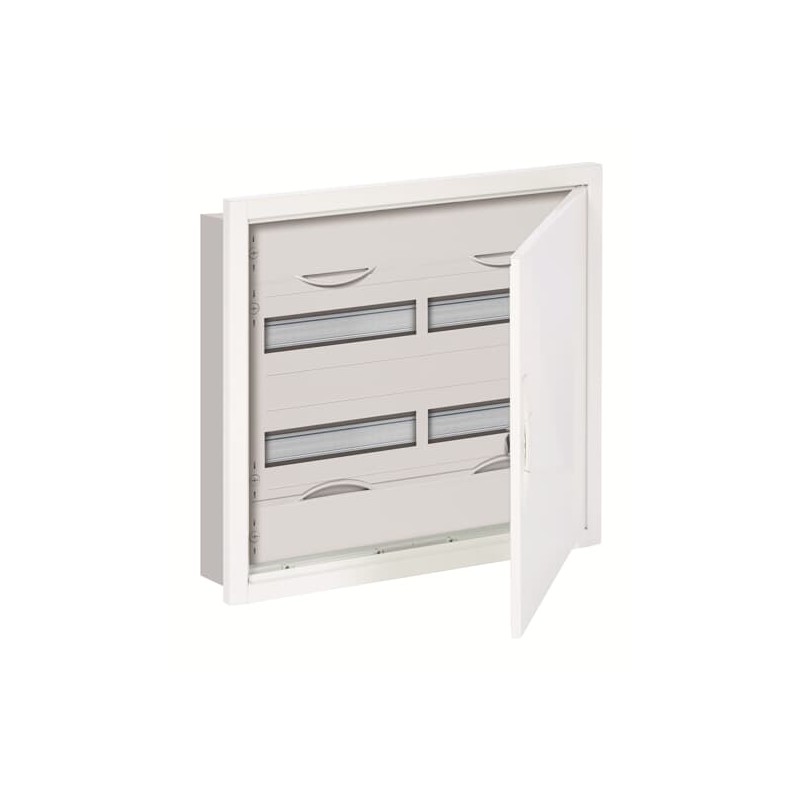

2CPX071707R9999 ABB U32R2 Arm.empot. 48mód. (150mm) pta. met. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX071707R9999 ABB U32R2 Arm.empot. 48mód. (150mm) pta. met.

2CPX071707R9999

ABB

U32R2 Arm.empot. 48mód. (150mm) pta. met.

U32R2 Dist. Board 2R w.door

More details


Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


  • Extended Product Type:
    U32R2
  • Product ID:
    2CPX071707R9999
  • EAN:
    4011617717072
  • Catalog Description:
    U32R2 Dist. Board 2R w.door
  • Long Description:
    compact distribution boards, series U, partly assembled cabinet, for the internal use, with closed doorframe and door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP31, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 130 degree, door hinge right or left, cable entry on top via nippel flange included, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 534 x 560 x 120, Shutter frame dimensions in mm (H x W x D): 544 x 604 x 27, Ratchet unit 3 GU, panel width 2, 2-rows, Space units 48, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable

Ordering

  • EAN:
    4011617717072
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000

Dimensions

  • Product Net Width:
    560mm
  • Product Net Height:
    534mm
  • Product Net Depth / Length:
    120mm
  • Product Net Weight:
    14.205kg

Container Information

  • Package Level 1 Units:
    pack 1 piece
  • Package Level 1 Width:
    630.000 mm
  • Package Level 1 Height:
    570.000 mm
  • Package Level 1 Depth / Length:
    165.000 mm
  • Package Level 1 Gross Weight:
    15.174 kg
  • Package Level 1 EAN:
    4011617717072
  • Package Level 2 Units:
    pallet (lift) 20 piece
  • Package Level 2 Width:
    830.000 mm
  • Package Level 2 Height:
    1640.000 mm
  • Package Level 2 Depth / Length:
    1200.000 mm
  • Package Level 2 Gross Weight:
    304.1 kg

Additional Information

  • Color:
    Traffic white
  • Cover Plate Type:
    Door
  • Degree of Protection:
    IP31
  • Design:
    Wall cabinet flush-mount
  • DIN Place Units:
    48
  • Enclosure Type:
    compact distribution boards
  • Field Width:
    2
  • Housing Material:
    Steel
  • Interior Depth:
    120 mm
  • Meter Boards:
    0
  • Mounting Position:
    Wall cabinet flush-mount
  • Mounting Type:
    Wall cabinet flush-mount
  • Niche Depth:
    120 mm
  • Niche Height:
    550 mm
  • Niche Width:
    575 mm
  • Number of Rows:
    2
  • Power Loss:
    Δt = 20K 33.1 W
    Δt = 25K 43.7 W
    Δt = 30K 54.8 W
  • Product Main Type:
    U
  • Product Name:
    U32R2 Dist. Board 2R w.door
  • Protection Class:
    Isolated
  • Rated Current (In):
    125 A

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC000214 - Small distribution board
  • ETIM 5:
    EC000214 - Small distribution board
  • ETIM 6:
    EC000214 - Small distribution board
  • ETIM 7:
    EC000214 - Small distribution board
  • Object Classification Code:
    U
  • WEEE Category:
    4. Large Equipment (Any External Dimension More Than 50 cm)

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf 14 Mbytes
2CPX071707R9999 2CPX071707R9999 EN_2CPX071707R9999.pdf 208 Kbytes 2CPX071707R9999 2CPX071707R9999 EN_2CPX071707R9999.pdf
