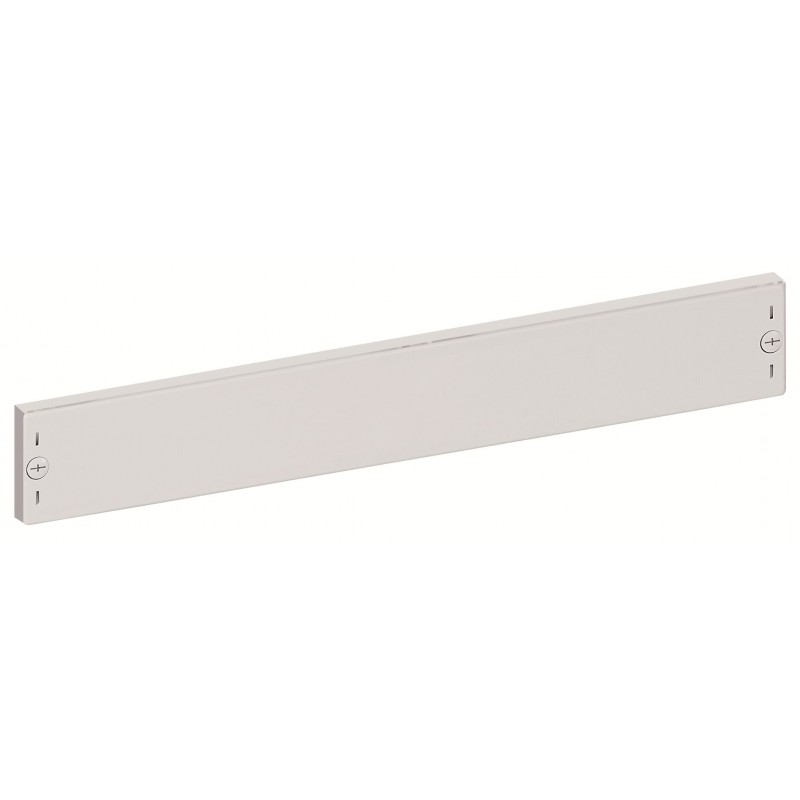

2CPX070388R9999 ABB AH2 Blind intermediate cover, 75 x 500 mm
2CPX070388R9999
ABB
AH2 Blind intermediate cover, 75 x 500 mm
Cover, Field width: 2, Rows: 1, 75 mm x 500 mm x 26.5 mm, IP2XC
Distribution boards > Cover for distribution board
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Number of Rows | 1 |
| Enclosure Type | Cover |
| Meter Type | " |
| DIN Place Units | 0 |
| Meter Boards | 0 |
| Design | |
| Material | Plastic |
| RAL Number | RAL 7035 - Light Grey |
| Color | Light grey |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP2XC |
| Dimensions | |
| Product Net Width | 500 mm |
| Product Net Height | 75 mm |
| Product Net Depth / Length | 26.5 mm |
| Product Net Weight | 0.16 kg |
| Section Width | 2 |
| Engineering | |
| EPLAN Data | 9AAF623183_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.166 kg |
| E-Number (Norway) | 2407805 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000775 - Cover for distribution board |
| ETIM 10 | EC000775 - Cover for distribution board |
| eClass | V11.0 : 27142414 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 75 mm |
| Width (EF000008) | 500 mm |
| Depth (EF000049) | 26.5 mm |
| Number of rows (EF000266) | 1 |
| Material (EF002169) | Plastic |
| Hinging (EF001076) | No |
| Quick locking (EF001146) | Yes |
| Degree of protection (IP) (EF005474) | IP2XC |
| Colour (EF000007) | Grey |
| Transparent (EF006243) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 2CPX070388R9999 2CPX070388R9999 EN_2CPX070388R9999.pdf | 73 Kbytes |
|
