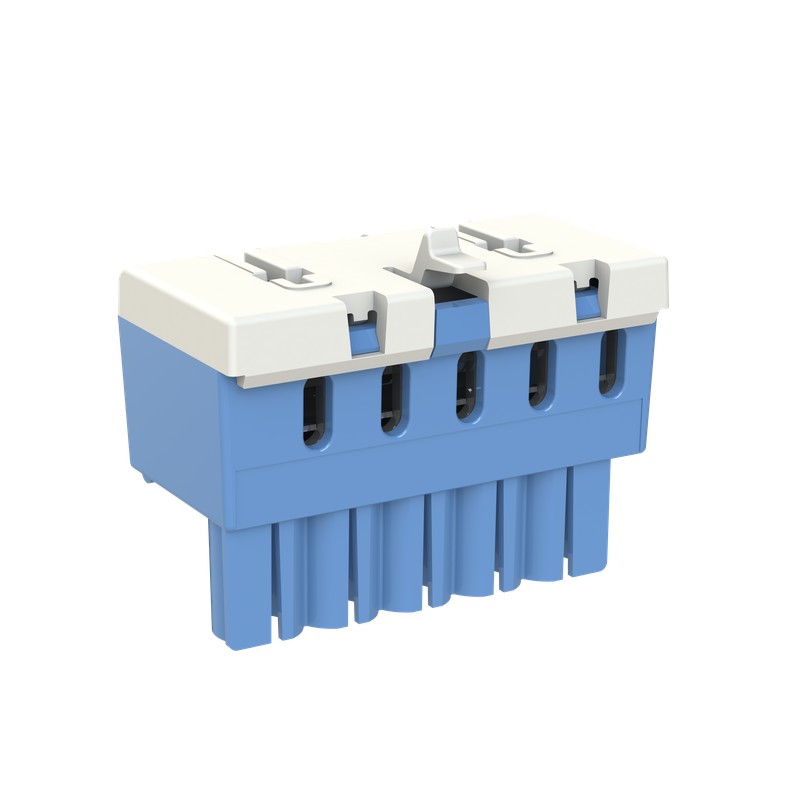

2CPX062750R9999 ZK50B ABB N-TERMINAL BLOCKS 5X4QMM
2CPX062750R9999
ZK50B
ABB
5
N-TERMINAL BLOCKS 5X4QMM
Quick terminals terminals , blue , N-Terminal , Quick-Terminal
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Number of Poles | 1P |
| Number of Clamp Positions | 5 |
| Number of Line Terminals | 5 |
| Accessory Type | terminals |
| Enclosure Type | Enclosure accessories |
| Meter Type | " |
| Terminal Connection Type | N-Terminal |
| Rated Cross-Section | 2 - Fine-Strand with Cable End Sleeve 1.5...2.5 mm² |
| Terminal Type | Quick-Terminal |
| Cross-Section (Across) | Conductor Flexible with Cable End Sleeve 1.5...2.5 mm² |
| Conductor Solid-Stranded 1.5...2.5 mm² | |
| Nominal 1.5...2.5 mm² | |
| Electrical | |
| Rated Voltage (Ur) | 230 V |
| Rated Operational Voltage | Maximum 230 V |
| Operational Voltage | 230 V |
| Rated Current (In) | 63 A |
| Design | |
| Color | blue |
| Material Compliance | |
| RoHS Declaration | 2CPC100018X0201 |
| 2CPC100022X0202 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250929 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Dimensions | |
| Product Net Width | 32 mm |
| Product Net Height | 23 mm |
| Product Net Depth / Length | 21 mm |
| Product Net Weight | 0.02 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.021 kg |
| E-Number (Sweden) | 2200277 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100018X0201 |
| 2CPC100022X0202 | |
| Installation | |
| Instructions and Manuals | 2CPC130114M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000446 - Push in terminal |
| ETIM 10 | EC000446 - Push in terminal |
| eClass | V11.0 : 27141104 |
| Object Classification Code | U |
Datasheet - PDF
