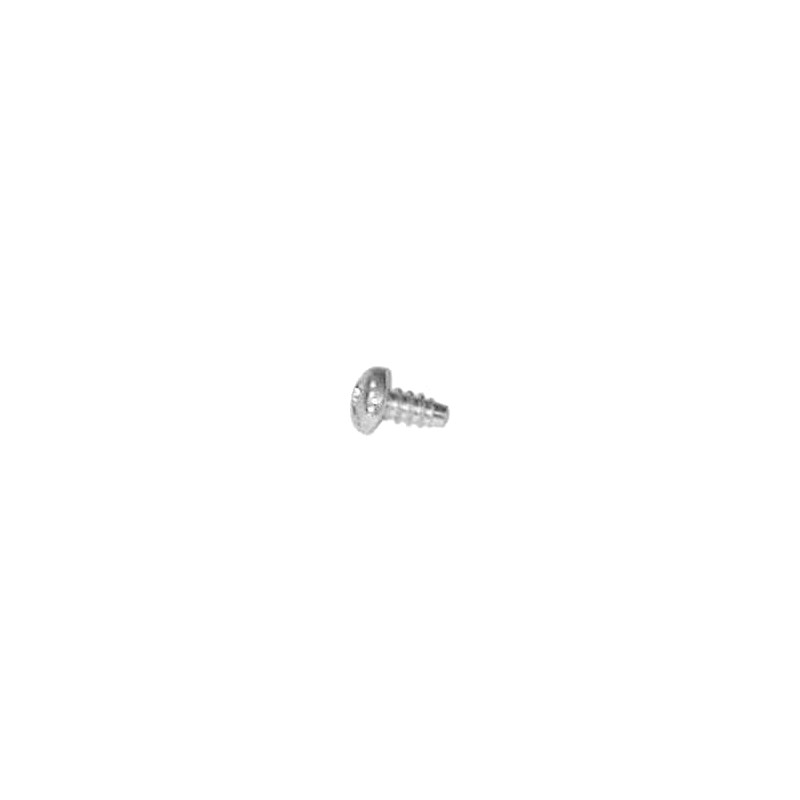

2CPX062588R9999 ABB ZB27P20 Metal screws 4.8x11.5mm
2CPX062588R9999
ABB
ZB27P20 Metal screws 4.8x11.5mm
Interior fitting system, 4.8 mm x 4.8 mm x 11.5 mm
Fasteners and anchoring systems > Bolt
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Enclosure Type | Interior fitting system |
| Head Type | Round |
| Meter Type | " |
| Recommended Screw Driver | Torx |
| DIN Place Units | 0 |
| Meter Boards | 0 |
| Design | |
| Surface Finishing | Galvanic/electrolytic zinc plated |
| Material | Steel |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 4.8 mm |
| Product Net Height | 4.8 mm |
| Product Net Depth / Length | 11.5 mm |
| Product Net Weight | 0.051 kg |
| Engineering | |
| EPLAN Data | 9AAF623180_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.053 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC003861 - Bolt |
| ETIM 10 | EC003861 - Bolt |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Head form (EF000012) | Rounded head |
| Countersunk head (EF013941) | No |
| Thread size (metric) (EF003563) | 4.8 |
| Thread size (imperial) (EF003715) | Other |
| Thread length (EF000368) | 11.5 mm |
| Full thread (EF009106) | No |
| Screwing system (EF000013) | Torx |
| Wrench width (EF000177) | 1.5 mm |
| Left-handed thread (EF022707) | No |
| Head diameter (EF001001) | 9.5 mm |
| Head height (EF025409) | 3.5 mm |
| With nut (EF005059) | No |
| With washer (EF005076) | No |
| Self-locking (EF006319) | No |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 2CPX062588R9999 2CPX062588R9999 EN_2CPX062588R9999.pdf | 71 Kbytes |
|
