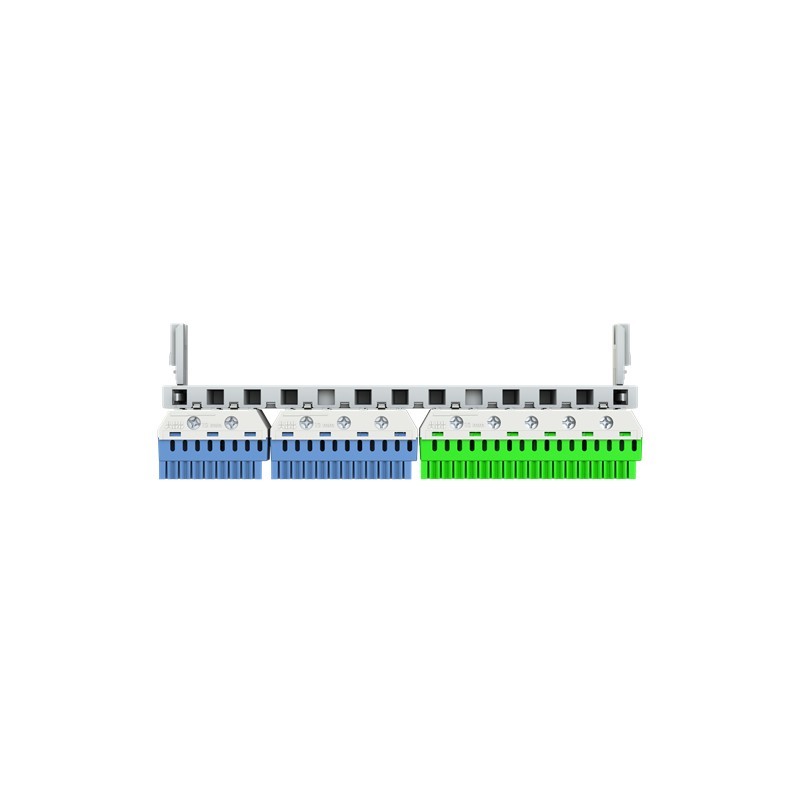

ABB 2CPX052697R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

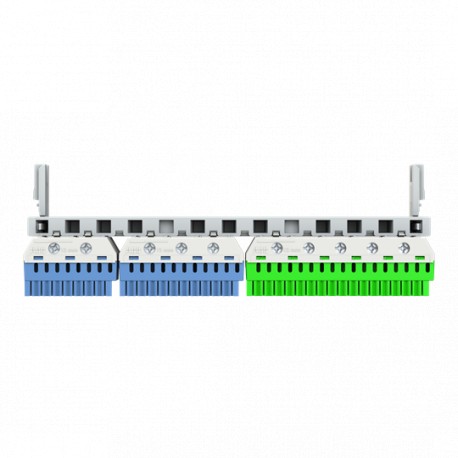

2CPX052697R9999 ABB N/PE CU Quick Terminal Set

Code: 2CPX052697R9999

Manufacturer: ABB

Description:

N/PE CU Quick Terminal Set
ComfortLine Compact CU terminals , Plastic , Quick-Terminal

Categories:

  • Installation, isolation and connection material > Push in terminal
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 45,77 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Number of Poles2P
Number of Clamp Positions46
Accessory Typeterminals
Enclosure TypeTerminals
Rated Cross-Section2 - Fine-Strand with Cable End Sleeve 1.5...25 mm²
Terminal TypeQuick-Terminal
Electrical
Rated Operational VoltageMaximum 230 V
Rated Current (In)63 A
Design
MaterialPlastic
Material Compliance
RoHS Declaration2CPC100013X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Dimensions
Product Net Width225 mm
Product Net Height71 mm
Product Net Depth / Length76 mm
Product Net Weight0.221 kg
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.225 kg
Certificates and Declarations
Declaration of Conformity - CE2CPC100013X0201
Installation
Instructions and Manuals2CPC130114M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC000446 - Push in terminal
ETIM 10EC000446 - Push in terminal
Object Classification CodeU

ETIM for 2CPX052697R9999 Cable terminations and insulation products (EC000446)

Feature nameNumber of clamp positions (EF000584)
Feature value46
Feature nameNominal cross section (EF005124)
Feature value1.5 mm²
Feature nameCable diameter (EF002356)
Feature value25 mm
Feature nameWith operation lever (EF006585)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
Feature nameNominal current (EF000001)
Feature value63 A
Feature nameSuitable for flexible conductors (EF005852)
Feature valueYes
Feature nameSuitable for multi-wire conductors (EF005821)
Feature valueYes
Feature nameConductor cross section flexible (fine-strand) with cable end sleeve (EF003460)
Feature value1.5 mm²
Feature nameConductor cross section solid (solid, stranded) (EF003462)
Feature value1.5 mm²
