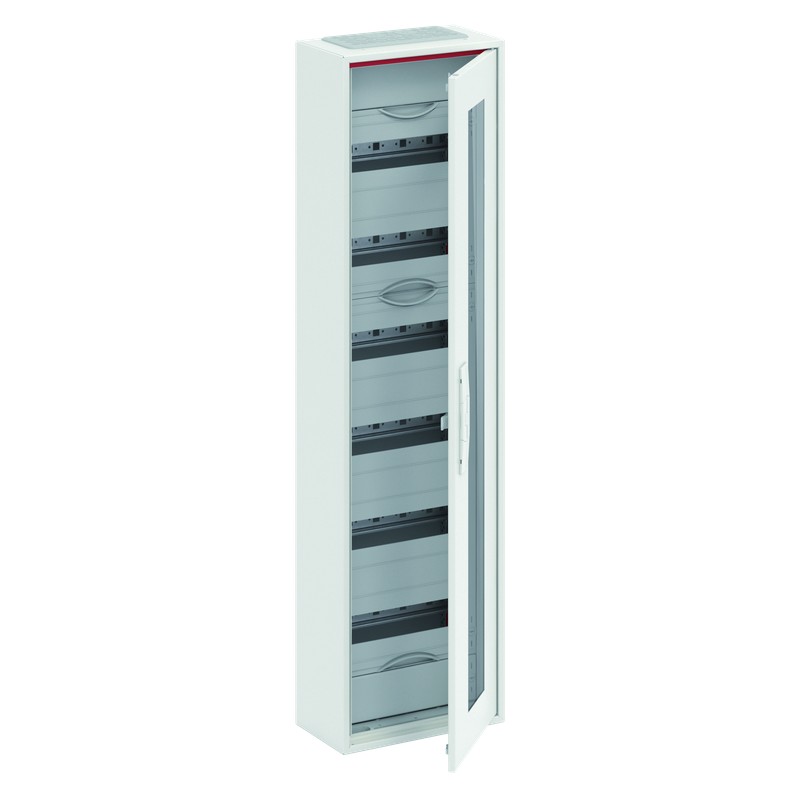

2CPX052249R9999 ABB CA17RT Arm.superf.72mod(150mm) pta.tra.
2CPX052249R9999
ABB
CA17RT Arm.superf.72mod(150mm) pta.tra.
compact distribution boards, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, transparent door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 1100 x 300 x 160, Grid unit 7 GU, panel width 1, 6-rows, Space units 72, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable
Distribution boards > Small distribution board
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲b'
General Information
CA17RT
2CPX052249R9999
4011617522492
CA17RT Comp.DB 1PW 6R trans.door
compact distribution boards, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, transparent door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 1100 x 300 x 160, Grid unit 7 GU, panel width 1, 6-rows, Space units 72, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable
Ordering
4011617522492
1 piece
85381000
Dimensions
300 mm
1100 mm
160 mm
14.009 kg
Container Information
pack 1 piece
306.000 mm
1102.000 mm
165.000 mm
14.569 kg
4011617522492
pallet (lift) 20 piece
800.000 mm
1800.000 mm
1200.000 mm
300.18 kg
Additional Information
White
Door
IP44
72
compact distribution boards
1
Steel
152 mm
6
Δt = 20K 49.5 W
Δt = 25K 65.4 W
Δt = 30K 82 W
ComfortLine Compact CA
CA17RT Comp.DB 1PW 6R trans.door
Isolated
Maximum 400 V
Certificates and Declarations (Document Number)
Classifications
EC000214 - Small distribution board
EC000214 - Small distribution board
U
4. Large Equipment (Any External Dimension More Than 50 cm)
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Other |
| Number of rows (EF000266) | 6 |
| Width in number of modular spacings (EF002950) | 12 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Transparent cover/door (EF006244) | Yes |
| Housing material (EF001596) | Steel |
| Height (EF000040) | 1100 mm |
| Width (EF000008) | 300 mm |
| Depth (EF000049) | 160 mm |
| Built-in depth (EF000218) | 0 mm |
| Built-in height (EF000332) | 0 mm |
| Built-in width (EF000846) | 0 mm |
| Inner depth (EF001131) | 152 mm |
| Earthing terminal block (EF015776) | Yes |
| Neutral terminal block (EF015777) | Yes |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | No |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | IP44 |
| With lock (EF006306) | Yes |
| Type of closure (EF004462) | Other |
| Signal passing door (EF015941) | No |
