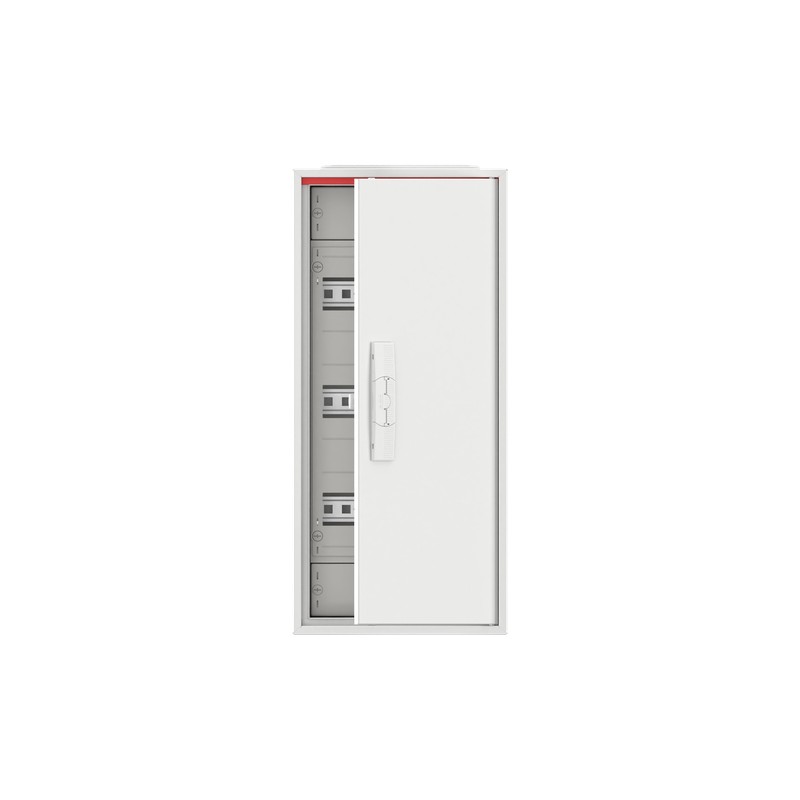

2CPX052229R9999 ABB CA14R Arm.superf.36mod(150mm) pta.met. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX052229R9999 ABB CA14R Arm.superf.36mod(150mm) pta.met.

2CPX052229R9999

ABB

CA14R Arm.superf.36mod(150mm) pta.met.

compact distribution boards, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 650 x 300 x 160, Grid unit 4 GU, panel width 1, 3-rows, Space units 36, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable

More details


Distribution boards > Small distribution board

Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total: $255.25
Unit price: $255.25
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


b'

General Information

Extended Product Type:
CA14R
Product ID:
2CPX052229R9999
EAN:
4011617522294
Catalog Description:
CA14R      Comp.DB 1PW 3R IP44
Long Description:
compact distribution boards, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 650 x 300 x 160, Grid unit 4 GU, panel width 1, 3-rows, Space units 36, Row distance in mm: 150, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable
\n

Ordering

EAN:
4011617522294
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85381000

Dimensions

Product Net Width:
300 mm
Product Net Height:
650 mm
Product Net Depth / Length:
160 mm
Product Net Weight:
9.161 kg

Container Information

Package Level 1 Units:
pack 1 piece
Package Level 1 Width:
306.000 mm
Package Level 1 Height:
652.000 mm
Package Level 1 Depth / Length:
165.000 mm
Package Level 1 Gross Weight:
9.527 kg
Package Level 1 EAN:
4011617522294
Package Level 2 Units:
pallet (lift) 34 piece
Package Level 2 Width:
800.000 mm
Package Level 2 Height:
1800.000 mm
Package Level 2 Depth / Length:
1200.000 mm
Package Level 2 Gross Weight:
331.474 kg

Additional Information

Color:
White
Cover Plate Type:
Door
Degree of Protection:
IP44
DIN Place Units:
36
Enclosure Type:
compact distribution boards
Field Width:
1
Housing Material:
Steel
Interior Depth:
152 mm
Number of Rows:
3
Power Loss:
Δt = 20K 31.8 W

Δt = 25K 41.9 W

Δt = 30K 52.6 W
Product Main Type:
ComfortLine Compact CA
Product Name:
CA14R      Comp.DB 1PW 3R IP44
Protection Class:
Isolated
Rated Operational Voltage:
Maximum 400 V

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n9AKK107680A4771
Instructions and Manuals:\n2CPC133150M5601

Classifications

ETIM 6:
EC000214 - Small distribution board
ETIM 7:
EC000214 - Small distribution board
Object Classification Code:
U
WEEE Category:
4. Large Equipment (Any External Dimension More Than 50 cm)
\n
'

ETIM for 2CPX052229R9999 Distribution boards (EC000214)
Feature Name Feature Value
Mounting method (EF000003) Other
Number of rows (EF000266) 3
Width in number of modular spacings (EF002950) 12
Type of covering (EF000339) Door
Cover model (EF009212) Closed
Transparent cover/door (EF006244) No
Housing material (EF001596) Steel
Height (EF000040) 650 mm
Width (EF000008) 300 mm
Depth (EF000049) 160 mm
Built-in depth (EF000218) 0 mm
Built-in height (EF000332) 0 mm
Built-in width (EF000846) 0 mm
Inner depth (EF001131) 152 mm
Earthing terminal block (EF015776) Yes
Neutral terminal block (EF015777) Yes
DIN-rail (EF001134) Yes
With mounting plate (EF000118) No
Extension possible (EF001088) Yes
EMC-version (EF001062) No
Colour (EF000007) White
RAL-number (EF000116) 9016
Degree of protection (IP) (EF005474) IP44
With lock (EF006306) Yes
Type of closure (EF004462) Other
Signal passing door (EF015941) No

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf 14 Mbytes
2CPX052229R9999 2CPX052229R9999 EN_2CPX052229R9999.pdf 233 Kbytes 2CPX052229R9999 2CPX052229R9999 EN_2CPX052229R9999.pdf
