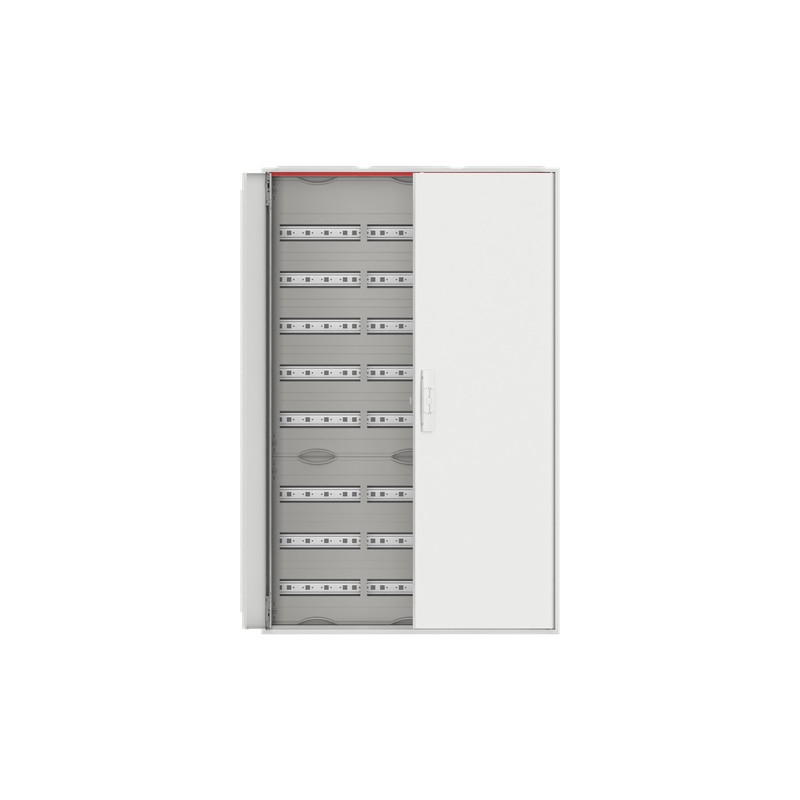

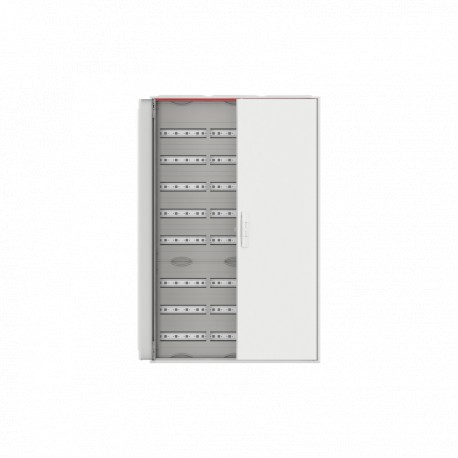

2CPX052194R9999 ABB CA38V Arm.superf.288mod(125mm) pta.met.
2CPX052194R9999
ABB
CA38V Arm.superf.288mod(125mm) pta.met.
ComfortLine Compact distribution board, Surface mounting, 288 SU, Isolated (Class II), IP44, Field Width: 3, Rows: 88, 1250 mm x 800 mm x 160 mm
Distribution boards > Small distribution board
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Related products
▲Best sellers
▲More info
▲| Technical | |
|---|---|
| Number of Entrances | Socket Outlet 0 |
| Number of Rows | 88 |
| Closure Type | Turn Handle |
| Configuration Type | Assembled with distribution module |
| Cover Plate Type | Door |
| Enclosure Type | Compact distribution board |
| Meter Type | " |
| Door Type | Double |
| Accessories Available | Yes |
| DIN Place Units | 288 |
| Terminal Type | Quick-Terminal |
| Impact Resistance Rating | IK07 |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Current (In) | 125 A |
| Power Loss | Δt = 20K 93.8 W |
| Δt = 25K 123.9 W | |
| Δt = 30K 146.3 W | |
| Total 93.8 W | |
| Design | |
| Surface Finishing | Powder-coated |
| Housing Material | Steel |
| Door Material | Steel Sheet |
| Cover Style | Closed |
| RAL Number | RAL 9016 - Traffic White |
| Color | Traffic white |
| Number of Modules | 288 |
| Material Compliance | |
| RoHS Declaration | 2CPC100012X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP44 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 36 |
| Product Net Width | 800 mm |
| Product Net Height | 1250 mm |
| Product Net Depth / Length | 160 mm |
| Product Net Weight | 34.121 kg |
| Section Width | 3 |
| Built-In Depth (t2) | 0 mm |
| Dimension Diagram | 2CPC000012D0201 |
| Engineering | |
| EPLAN Data | 9AAF603718_EPLAN |
| Building Information Modeling – BIM | 9AKK107680A4427 |
| 9AKK107680A4426 | |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 35.486 kg |
| E-Number (Norway) | 2414613 |
| E-Number (Sweden) | 2300377 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100012X0201 |
| Installation | |
| Instructions and Manuals | 2CPC130114M5601 |
| 2CPC133150M5601 | |
| Mounting Type | Surface mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000377C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC000214 - Small distribution board |
| ETIM 10 | EC000214 - Small distribution board |
| eClass | V11.0 : 27142409 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Other |
| Number of rows (EF000266) | 8 |
| Width in number of modular spacings (EF002950) | 36 |
| Type of covering (EF000339) | Door |
| Cover model (EF009212) | Closed |
| Transparent cover/door (EF006244) | No |
| Housing material (EF001596) | Steel |
| Height (EF000040) | 1250 mm |
| Width (EF000008) | 800 mm |
| Depth (EF000049) | 160 mm |
| Built-in depth (EF000218) | 0 mm |
| Built-in height (EF000332) | 0 mm |
| Built-in width (EF000846) | 0 mm |
| Inner depth (EF001131) | 152 mm |
| Earthing terminal block (EF015776) | Yes |
| Neutral terminal block (EF015777) | Yes |
| DIN-rail (EF001134) | Yes |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| EMC-version (EF001062) | No |
| Colour (EF000007) | White |
| RAL-number (EF000116) | 9016 |
| Degree of protection (IP) (EF005474) | IP44 |
| With lock (EF006306) | Yes |
| Type of closure (EF004462) | Other |
| Signal passing door (EF015941) | No |
