2CPX044011R9999 ABB ZX147 Bar Holder 60mm, 1 Pole
2CPX044011R9999
ABB

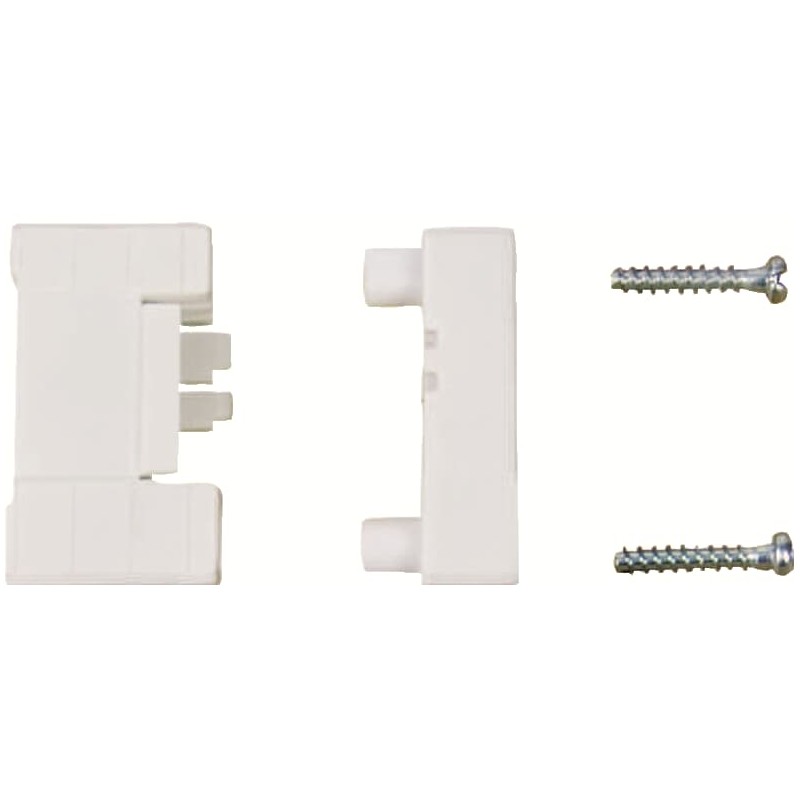

ZX147 Bar Holder 60mm, 1 Pole
Busbar holder, 17 mm x 60 mm x 60 mm
Energy distribution systems > Busbar support
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Number of Poles | 1P |
| Enclosure Type | Busbar holder |
| Meter Type | " |
| DIN Place Units | 0 |
| Meter Boards | 0 |
| Electrical | |
| Rated Current (In) | 630 A |
| Design | |
| Material | Plastic |
| Material Compliance | |
| RoHS Declaration | 2CPC100010X0201 |
| 2CPC100019X0201 | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 60 mm |
| Product Net Height | 17 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.069 kg |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 0.07 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100010X0201 |
| 2CPC100019X0201 | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001166 - Busbar support |
| ETIM 10 | EC001166 - Busbar support |
| eClass | V11.0 : 27400607 |
| Object Classification Code | U |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 1 |
| Max. rated current (EF007926) | 630 A |
| Busbar distance (EF002638) | 60 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 2CPX044011R9999 2CPX044011R9999 EN_2CPX044011R9999.pdf | 77 Kbytes |
|
