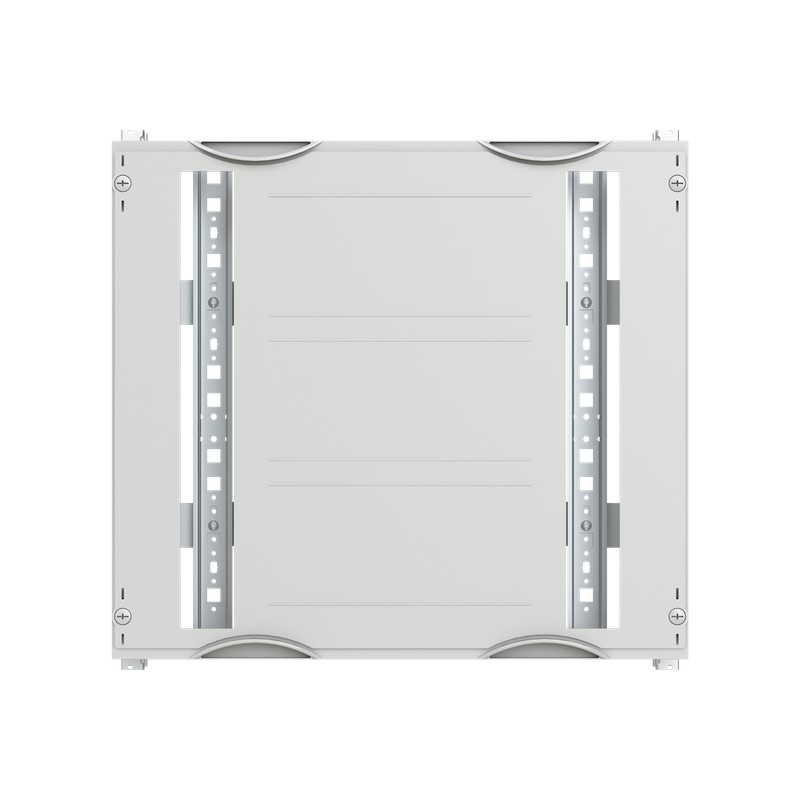

ABB 2CPX042164R9999 2CPX042164R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

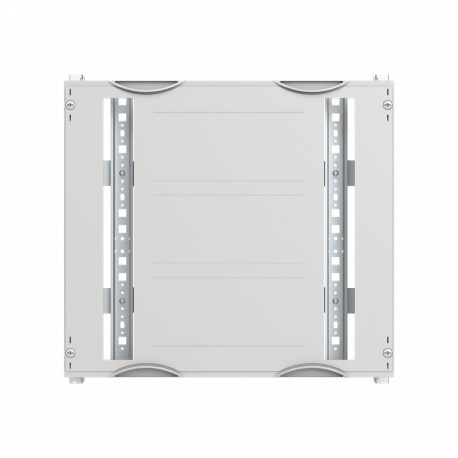

2CPX042164R9999 ABB MCB203VS Mounting Kit aparat.horz.450x500

Reference: 2CPX042164R9999

Manufacturer: ABB

Description:

MCB203VS Mounting Kit aparat.horz.450x500
SMISSLINE TP base unit vertikal 450 mm x 500 mm x 275 mm , 2 , 00 , 2

Categories:

  • Energy distribution systems > Distributor assembly for device surface mounting
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Technical
Number of DIN Rails for Mounting2
Number of Rows2
Enclosure Mounting FrameWR
Enclosure TypeInterior fitting module
Enclosure Type of Height00
Meter Type"
DIN Place Units72
Meter Boards0
Module FunctionSMISSLINE TP base unit vertikal
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Insulation Voltage (Ui)690 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Design
ColorLight grey
Number of Modules72
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20250916
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Width in Number of Modular Spacings22
Product Net Width500 mm
Product Net Height450 mm
Product Net Depth / Length275 mm
Product Net Weight3.82 kg
Section Width2
Built-In Depth (t2)275 mm
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight3.82 kg
E-Number (Norway)2410401
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC112322M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001893 - Distributor assembly for device surface mounting
ETIM 10EC001893 - Distributor assembly for device surface mounting
eClassV11.0 : 27400608
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2

DATASHEET - PDF
