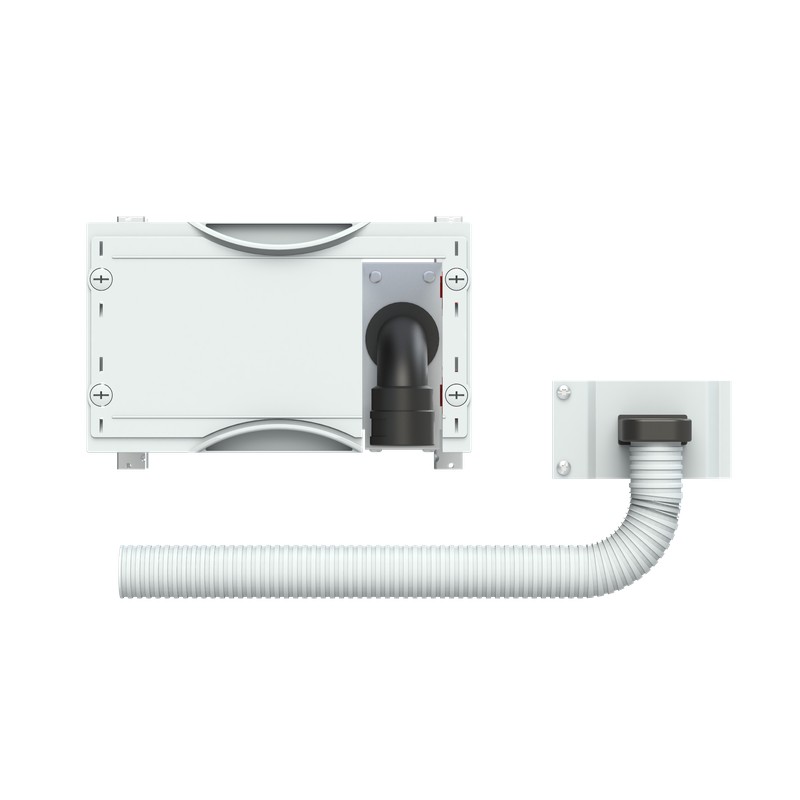

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX041817R9999 MBV182 ABB SET DOOR CONNECTION MODULE

Reference: 2CPX041817R9999

Code: MBV182

Manufacturer: ABB

Description:

SET DOOR CONNECTION MODULE

Cable connection module 150 mm x 250 mm x 225 mm , 0000 , 1

Categories:

ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
Reviews

Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Technical
Enclosure Type	Interior fitting module
Enclosure Type of Height	0000
Meter Type	"
DIN Place Units	12
Meter Boards	0
Module Function	Cable connection module
Electrical
Rated Operational Voltage	Maximum 400 V
Rated Insulation Voltage (U_i)	690 V
Rated Impulse Withstand Voltage (U_imp)	6 kV
Design
RAL Number	RAL 7035 - Light Grey
Color	Light grey
Number of Modules	12
Material Compliance
RoHS Declaration	2CPC100019X0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20250916
REACH Declaration	2CPC100005X0201
REACH Information	False - does not contain substances > 0.1 mass percentage
REACH Date	20240902
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	Product Not in WEEE Scope
Dimensions
Product Net Width	250 mm
Product Net Height	150 mm
Product Net Depth / Length	225 mm
Product Net Weight	1.48 kg
Section Width	1
Built-In Depth (t₂)	225 mm
Engineering
EPLAN Data	9AAF623208_EPLAN
Ordering
Package Level 1 Units	pack 1 piece
Package Level 1 Gross Weight	1.48 kg
E-Number (Norway)	2444456
Certificates and Declarations
Declaration of Conformity - CE	2CPC100019X0201
Installation
Instructions and Manuals	2CPC112290M5601
Mounting Type	Fixed mounting
Popular Downloads
Data Sheet, Technical Information	2CPC000001C0101
	2CPC000002C0101
External Classifications and Standards
ETIM 9	EC001893 - Distributor assembly for device surface mounting
ETIM 10	EC001893 - Distributor assembly for device surface mounting
eClass	V11.0 : 27400608
Object Classification Code	U
Standards	DIN EN 61439-3
	DIN EN 61439-2
