ABBBoxes and cabinets2CPX041804R9999 ABB MBA250ALA Kit section.200-400A,H300xA250

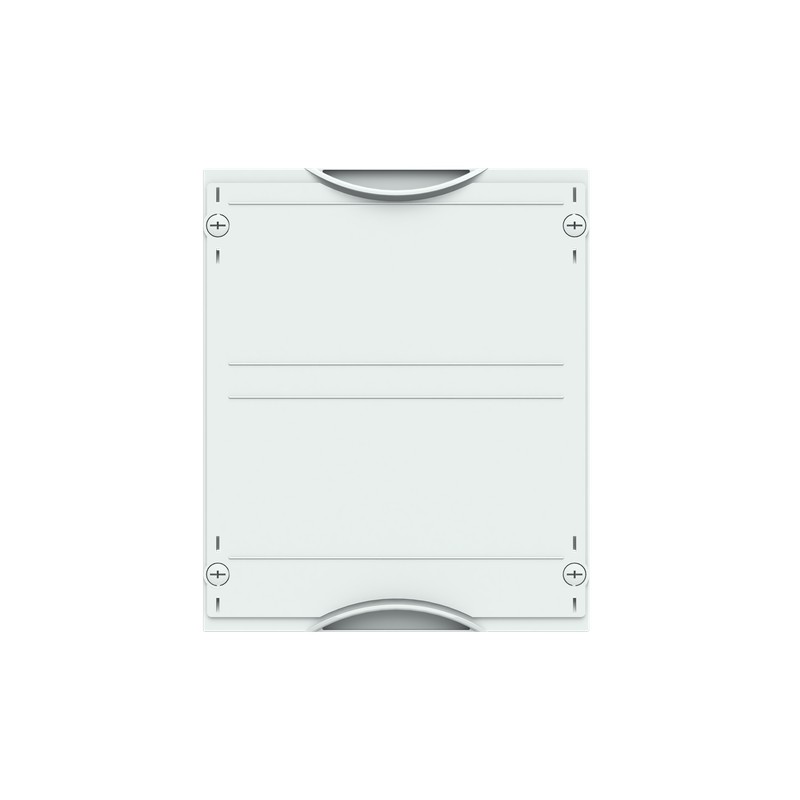

ABB 2CPX041804R9999 2CPX041804R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

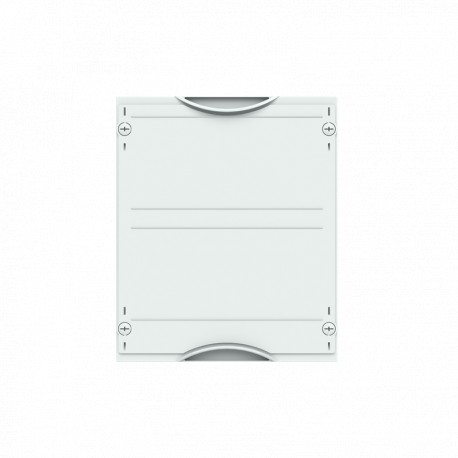

2CPX041804R9999 ABB MBA250ALA Kit section.200-400A,H300xA250

Reference: 2CPX041804R9999

Manufacturer: ABB

Description:

MBA250ALA Kit section.200-400A,H300xA250
Switch disconnector OT not connected 300 mm x 250 mm x 200 mm , 000

Categories:

  • Energy distribution systems > Distributor assembly switch
  • ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 57,62 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical
Rated Operational Current (Ie)250 A
Number of Poles4P
Number of Switches0
Number of Mountable Devices1
Enclosure Module EquipmentExcludes Devices
Enclosure Mounting FrameWR or EDF
DeviceOT250E
Enclosure TypeInterior fitting module
Enclosure Type of Height000
DIN Place Units24
Meter Boards0
Module FunctionSwitch disconnector OT not connected
Electrical
Rated Operational VoltageMaximum 400 V
Operational Voltage400 V
Rated Current (In)250 A
Design
ColorLight grey
Number of Modules24
Material Compliance
RoHS Declaration2CPC100019X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width250 mm
Product Net Height300 mm
Product Net Depth / Length200 mm
Product Net Weight1.41 kg
Section Width1
Built-In Depth (t2)200 mm
Engineering
EPLAN Data9AAF623206_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight1.41 kg
E-Number (Norway)2444454
Certificates and Declarations
Declaration of Conformity - CE2CPC100019X0201
Installation
Instructions and Manuals2CPC112315M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC001897 - Distributor assembly switch
ETIM 10EC001897 - Distributor assembly switch
eClassV11.0 : 27400611
Object Classification CodeU
StandardsDIN EN 61439-3
DIN EN 61439-2

ETIM for 2CPX041804R9999 Power distribution systems (EC001897)

Feature nameHeight (EF000040)
Feature value300 mm
Feature nameWidth (EF000008)
Feature value250 mm
Feature nameDepth (EF000049)
Feature value200 mm
Feature nameWith cover (EF000361)
Feature valueYes
Feature namePlastic cover plate (EF001238)
Feature valueYes
Feature nameNumber of poles (EF001391)
Feature value4
Feature nameSuitable for switch disconnector (EF007252)
Feature valueYes
Feature nameEquipped with switch disconnector (EF007957)
Feature valueNo
Feature nameSuitable for power circuit breaker (EF005863)
Feature valueNo
Feature nameEquipped with power circuit-breaker (EF007958)
Feature valueNo
Feature nameSuitable for no-voltage switch (EF007783)
Feature valueNo
Feature nameEquipped with no-voltage switch (EF007964)
Feature valueNo
Feature nameSuitable for reverser (EF007787)
Feature valueNo
Feature nameEquipped with reverser (EF007974)
Feature valueNo
Feature nameRated operation current (EF007679)
Feature value250 A
Feature nameNumber of switches (EF005586)
Feature value0
Feature nameWith auxiliary terminal (EF003774)
Feature valueNo
