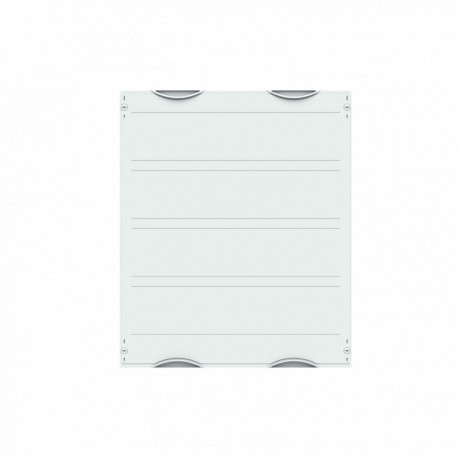

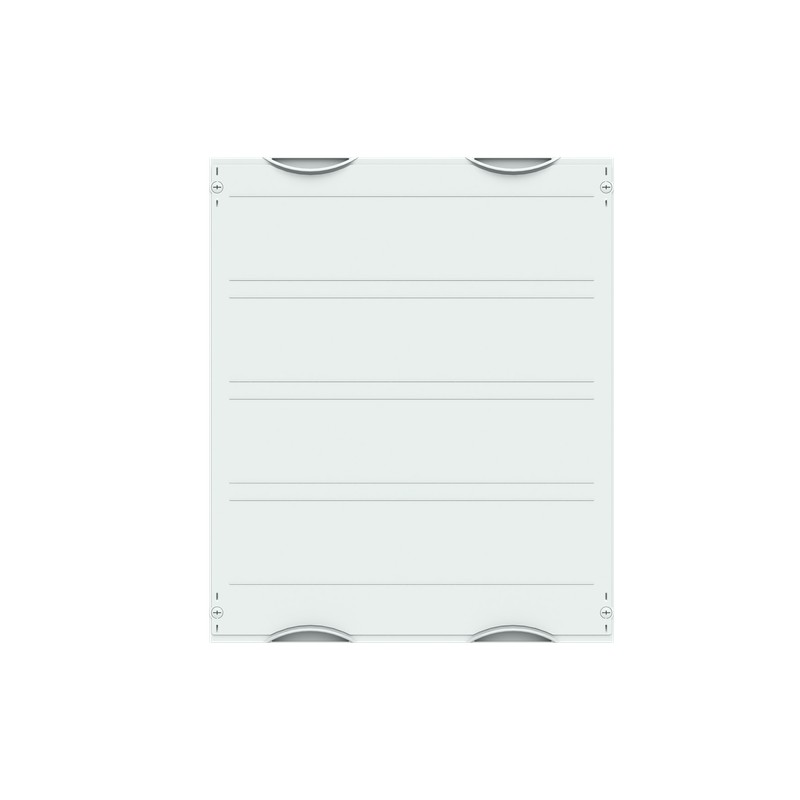

2CPX041732R9999 ABB MBB219 Panel Kit H600xA500, 4Hx2A
2CPX041732R9999
ABB
MBB219 Panel Kit H600xA500, 4Hx2A
touch guard 600 mm x 500 mm x 120 mm , 0
Energy distribution systems > Distributor assembly with protection against contact
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 0 |
| DIN Place Units | 96 |
| Meter Boards | 0 |
| Module Function | touch guard |
| Cover Color | Grey |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Design | |
| Color | Light grey |
| Number of Modules | 96 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240903 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 500 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 2 kg |
| Section Width | 2 |
| Built-In Depth (t2) | 120 mm |
| Engineering | |
| EPLAN Data | 9AAF623199_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 2 kg |
| E-Number (Norway) | 2444435 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112192M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001892 - Distributor assembly with protection against contact |
| ETIM 10 | EC001892 - Distributor assembly contact protection |
| eClass | V11.0 : 27400615 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 600 mm |
| Width (EF000008) | 500 mm |
| Depth (EF000049) | 120 mm |
| Colour cover (EF004269) | Grey |
