ABB 2CPX041724R9999 2CPX041724R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

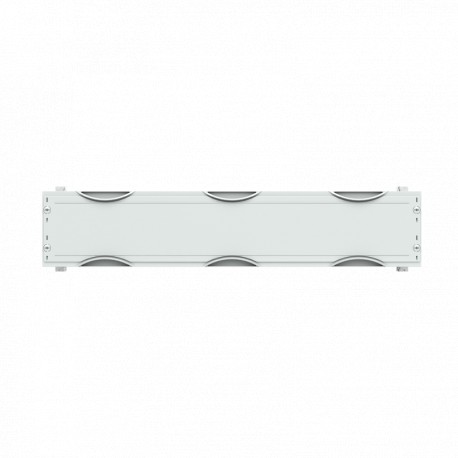

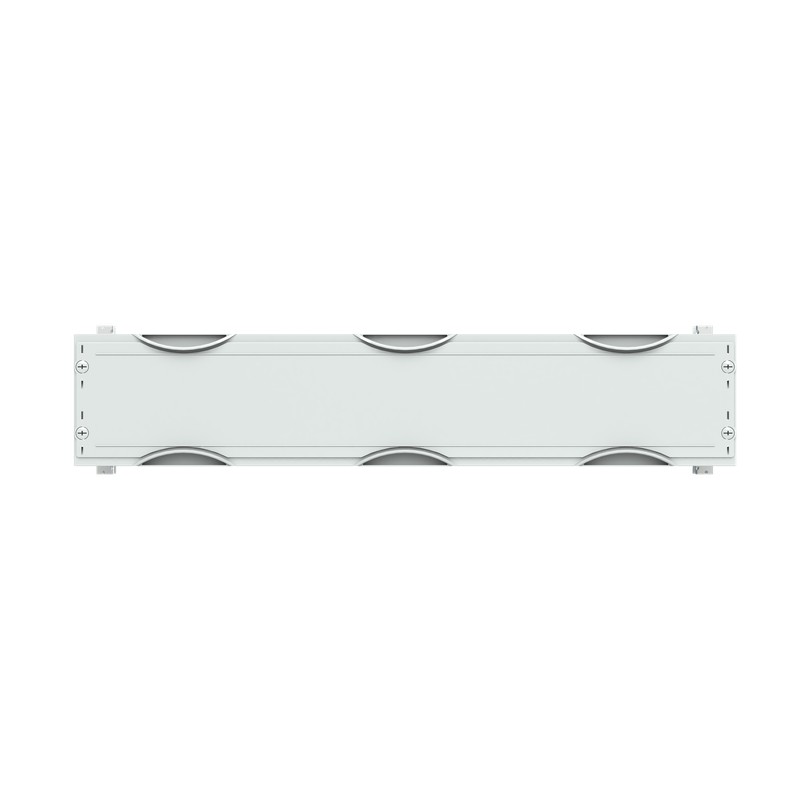

2CPX041724R9999 ABB MBB316 Panel Kit H150xA750, 1Hx3A

Reference: 2CPX041724R9999

Manufacturer: ABB

Description:

MBB316 Panel Kit H150xA750, 1Hx3A

touch guard 150 mm x 750 mm x 120 mm , 0000 , 3

Categories:

Energy distribution systems > Distributor assembly with protection against contact
ABB > Boxes and cabinets

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
PDF
Reviews

Guarantee, repair and return.

Unit Price: 31,52 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 7-8 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Technical
Enclosure Mounting Frame	WR or EDF
Enclosure Type	Interior fitting module
Enclosure Type of Height	0000
Meter Type	"
DIN Place Units	36
Meter Boards	0
Module Function	touch guard
Cover Color	Grey
Electrical
Rated Operational Voltage	Maximum 400 V
Operational Voltage	400 V
Rated Insulation Voltage (U_i)	690 V
Rated Impulse Withstand Voltage (U_imp)	6 kV
Design
Color	Light grey
Number of Modules	36
Material Compliance
RoHS Declaration	2CPC100019X0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date	20250916
REACH Declaration	2CPC100005X0201
REACH Information	False - does not contain substances > 0.1 mass percentage
REACH Date	20240902
Conflict Minerals Reporting Template (CMRT)	9AKK108468A3363
WEEE Category	Product Not in WEEE Scope
Dimensions
Product Net Width	750 mm
Product Net Height	150 mm
Product Net Depth / Length	120 mm
Product Net Weight	0.85 kg
Section Width	3
Built-In Depth (t₂)	120 mm
Engineering
EPLAN Data	9AAF623199_EPLAN
Ordering
Package Level 1 Units	pack 1 piece
Package Level 1 Gross Weight	0.85 kg
E-Number (Norway)	2407828
Certificates and Declarations
Declaration of Conformity - CE	2CPC100019X0201
Installation
Instructions and Manuals	2CPC112192M5601
Popular Downloads
Data Sheet, Technical Information	2CPC000001C0101
	2CPC000002C0101
External Classifications and Standards
ETIM 9	EC001892 - Distributor assembly with protection against contact
ETIM 10	EC001892 - Distributor assembly contact protection
eClass	V11.0 : 27400615
Object Classification Code	U
Standards	DIN EN 61439-3
	DIN EN 61439-2

ETIM for 2CPX041724R9999 Power distribution systems (EC001892)

Feature nameHeight (EF000040)

Feature value150 mm

Feature nameWidth (EF000008)

Feature value750 mm

Feature nameDepth (EF000049)

Feature value120 mm

Feature nameColour cover (EF004269)

Feature valueGrey

DATASHEET - PDF

Title

Size

Type

2CPX041724R9999 2CPX041724R9999 EN_2CPX041724R9999.pdf

191 Kbytes

PDF CATALOG ABB ELECTRICAL CONSUMER EN

14 Mbytes
