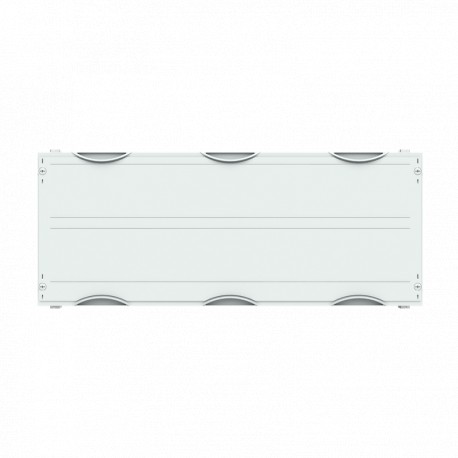

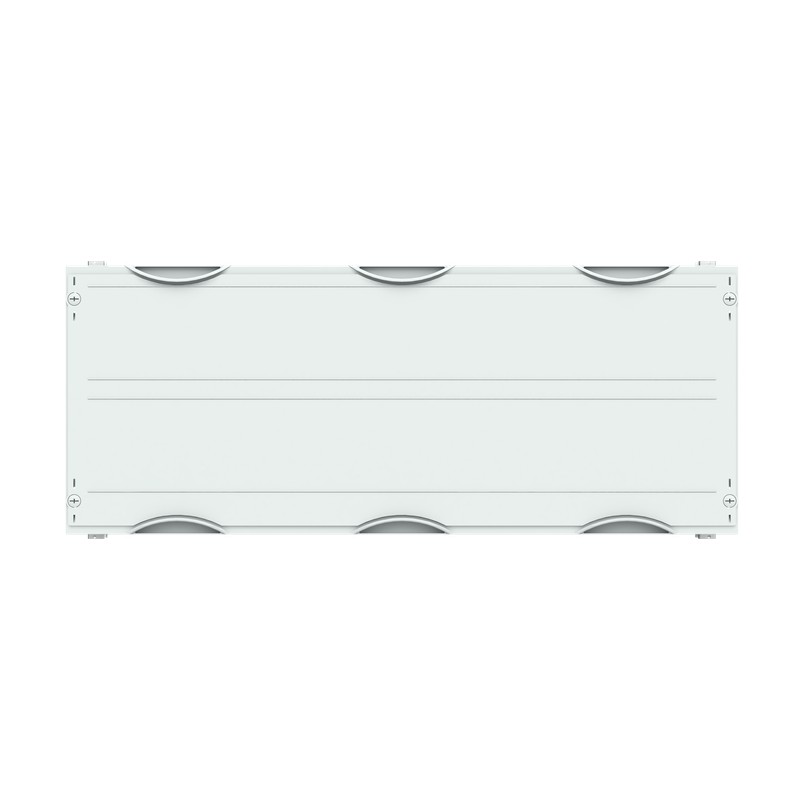

2CPX041687R9999 ABB MBK307 Kit for terminal blocks, H300xA750, 2Hx3A
2CPX041687R9999
ABB
MBK307 Kit for terminal blocks, H300xA750, 2Hx3A
DIN rail for terminals horizontal 300 mm x 750 mm x 200 mm , 2 , 000 , 3
Energy distribution systems > Distributor assembly terminal blocks
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Number of Rows | 2 |
| Enclosure Mounting Frame | WR or EDF |
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 000 |
| Meter Type | " |
| DIN Place Units | 72 |
| Meter Boards | 0 |
| Module Function | DIN rail for terminals horizontal |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Operational Voltage | 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (In) | 850 A |
| Design | |
| Color | Light grey |
| Number of Modules | 72 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 114f4144-efc4-474d-b9a6-6bc82d04c40b Germany |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Protection Class | Grounded or Insulated (Class III) |
| Dimensions | |
| Product Net Width | 750 mm |
| Product Net Height | 300 mm |
| Product Net Depth / Length | 200 mm |
| Product Net Weight | 2.81 kg |
| Section Width | 3 |
| Built-In Depth (t2) | 200 mm |
| Engineering | |
| EPLAN Data | 9AAF623201_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 2.81 kg |
| E-Number (Norway) | 2407845 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112206M5601 |
| Mounting Type | Stepless adjustable via mounting bracket |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001894 - Distributor assembly terminal blocks |
| ETIM 10 | EC001894 - Distributor assembly terminal blocks |
| eClass | V11.0 : 27400609 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
| 2CPX041687R9999 2CPX041687R9999 EN_2CPX041687R9999.pdf | 240 Kbytes |
|
